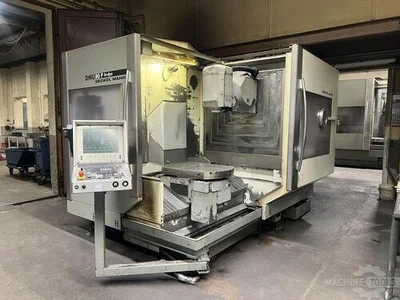

USED 2000 DECKEL MAHO DMU 80P

600 L Filtration system
IKZ Form AD
Rotation screen

MP10 measuring probe
in 2023 new spindel cost 13.500 EUR

X - Travel: 800 mm
Y - Travel: 700 mm
Z - Travel: 600 mm
A - Axis: 90 °
B - Axis: 360 °
Table Length: 900 mm
Table Width: 630 mm
Table load: 800
Feed rate X-Axis: 30000 mm/min.
Feed rate Y-Axis: 30000 mm/min.
Feed rate Z-Axis: 30000 mm/min.
Spindle Taper: 40 ISO/Bt/Mk
Power on spindle: 15 kW
Speeds / ranges: 12000 Rpm
ATC / revolver: 30
Coolant through spindle / Bar: 20
Number of controlled axis: 3+2
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6000 mm
Width: 4000 mm
Height: 2700 mm
Weight: 9000 kg
