USED HOSOKAWA MS 300

Manufacturer Information

Manufacturer: Hosokawa Alpine AG (BEPEX)

Model: MS 300

Type: Briquetter / Compactor

Year of Manufacture: 2020

Description

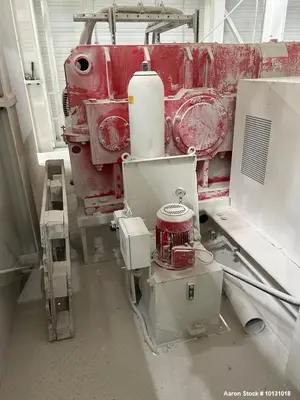

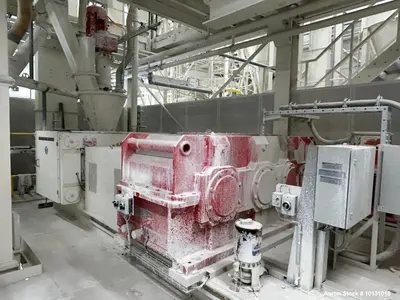

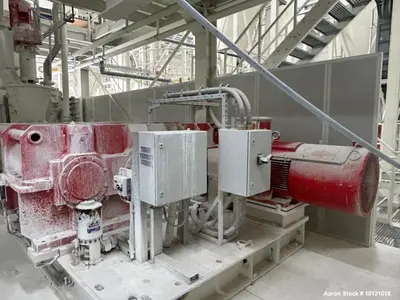

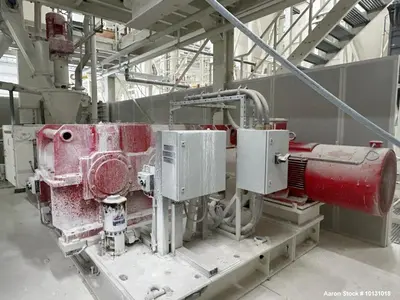

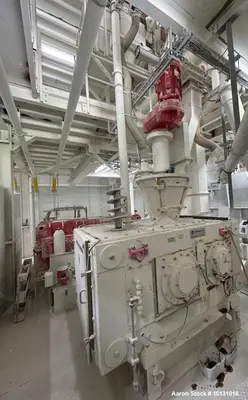

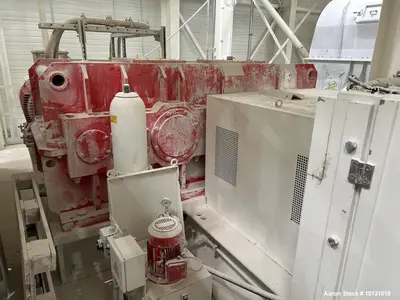

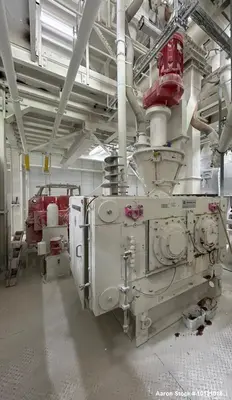

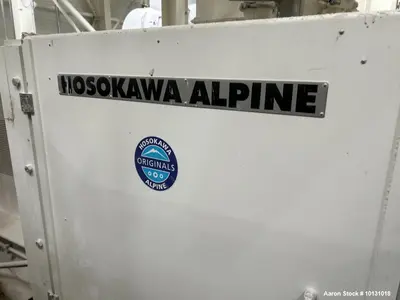

A used Hosokawa Alpine AG (BEPEX) MS 300 briquetter compactor, designed for high-capacity densification of powders and fine materials into briquettes. This unit offers a throughput capacity of 9–50 tonnes per hour, driven by a robust 300 HP (200 kW) motor through a heavy-duty gearbox.

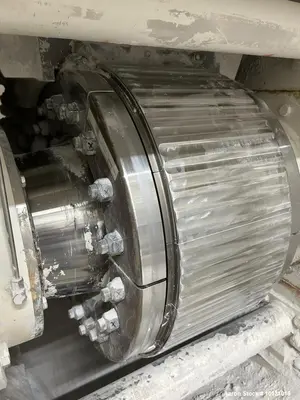

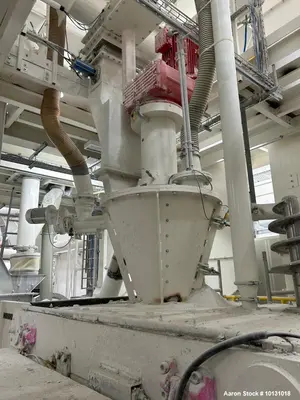

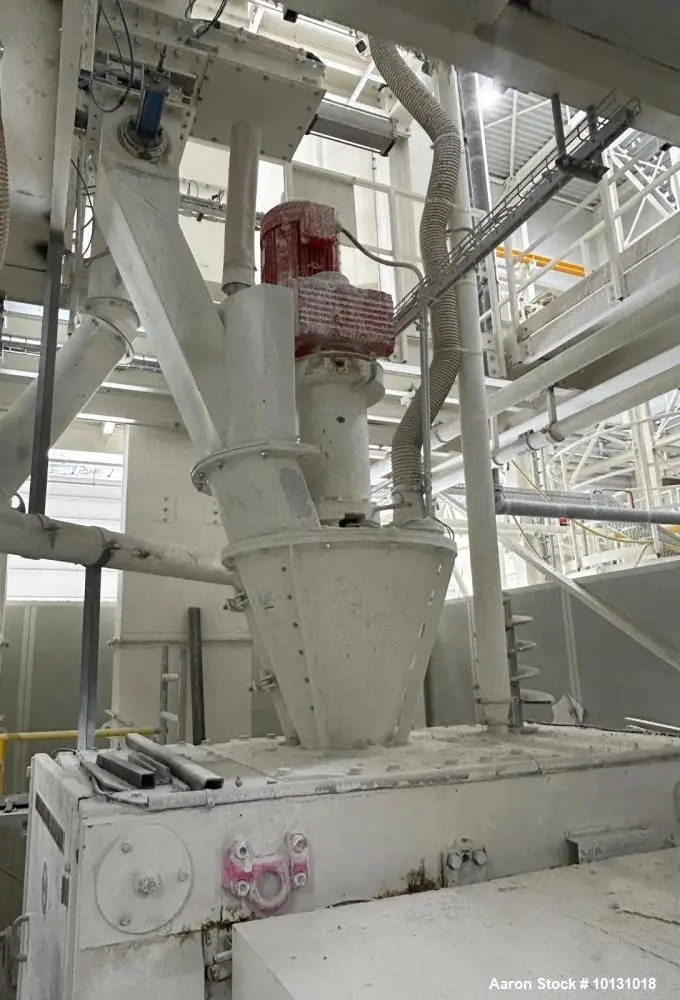

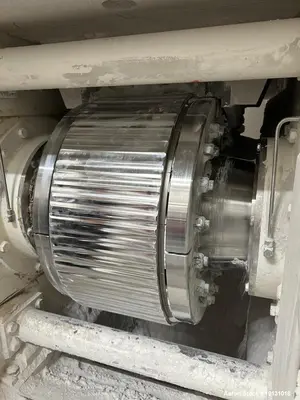

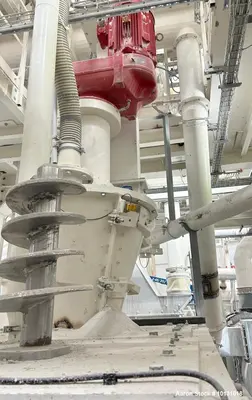

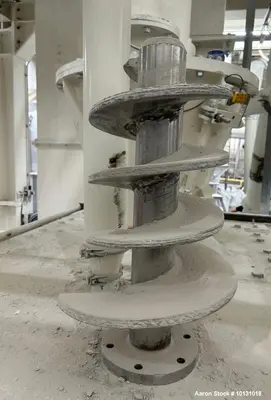

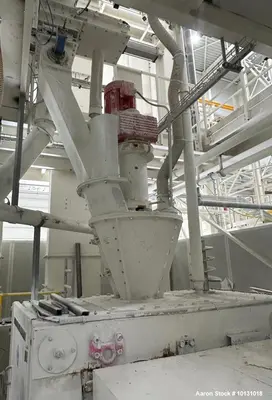

It features two 27.7” (712 mm) diameter × 11.1” (286 mm) wide rolls with a nominal press force of 3,000 kN, along with a screw feed system for uniform product delivery. Frame-mounted and equipped with controls, the MS 300 is built for continuous operation in demanding industrial environments. Previously used in a ceramic material application.

Specifications

Specification
Details

Model
MS 300

Manufacturer
Hosokawa Alpine AG (BEPEX)

Year
2020

Capacity
9–50 tonnes/hour

Roll Dimensions
Ø 27.7” (712 mm) × 11.1” (286 mm)

Nominal Press Force
3,000 kN

Drive Motor
~300 HP (200 kW), 50 Hz, 3Ph, 1485 RPM

Feed System
Screw feed

Mounting
Frame-mounted

Controls
Included

Previous Use
Ceramic application

Condition
Used – very good, modern (2020 build)

What Might This Be Used For

Ceramic powder compaction into briquettes

Mineral powder briquetting (lime, gypsum, bentonite)

Metallurgical dust and fines recycling

Fertilizer compaction into uniform briquettes

Salt and chemical briquette production

Activated carbon briquetting

Pharmaceutical bulk powder densification

Biomass and fuel briquette processing

Catalyst powder compaction

Specialty material densification for transport/storage
