2 Axis, Flat Bed, Steady Rest, Fanuc OT CNC
| size | 40" x 108" | 40" x 108" |
| Swing | 49" | 1,244.6 mm |
| Machining Length | 108" | 2,743.2 mm |
| # Axis | 2 | 2 |
| Power | 75 hp | 55.9 kW |
| Max RPM | 750 RPM | 750 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (GE Fanuc Ot-c Cnc Control) | CNC (GE Fanuc Ot-c Cnc Control) |

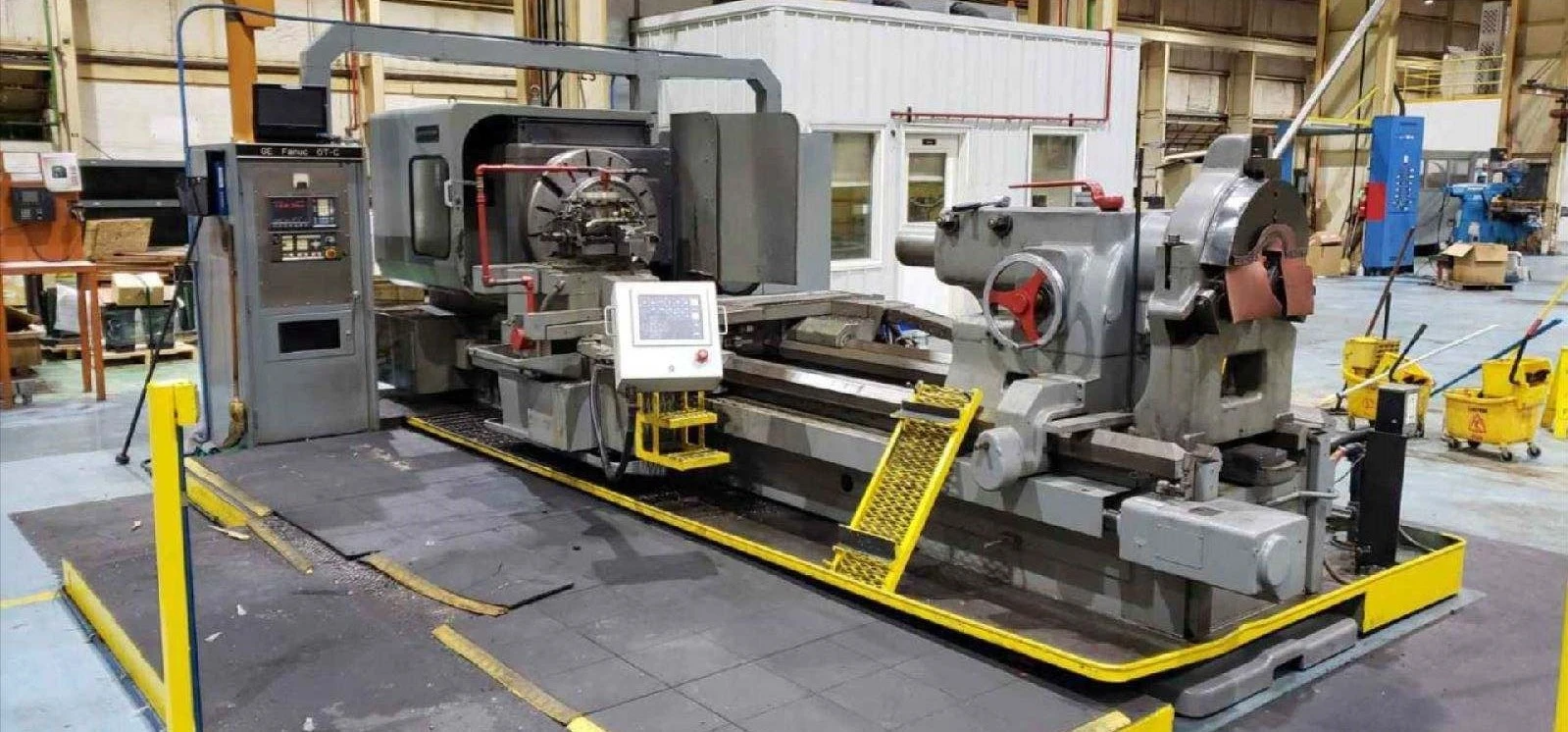

49" x 108" American 4025 Uniturn Cnc Flat Bed Lathe
Swing Over Carriage Wings: 49-1/2"
Swing Over Cross Slide: 30"
Spindle Speeds: 5 to 750 Rpm
Feed Range: .01 - 125 Ipm
Tailstock Spindle: 7-1/2" Diameter
Capacity Between Centers: 53,000 LBS
Main Drive Motor: 75 Hp Wired for 460 Volt
GE Fanuc Ot-c Cnc Control
