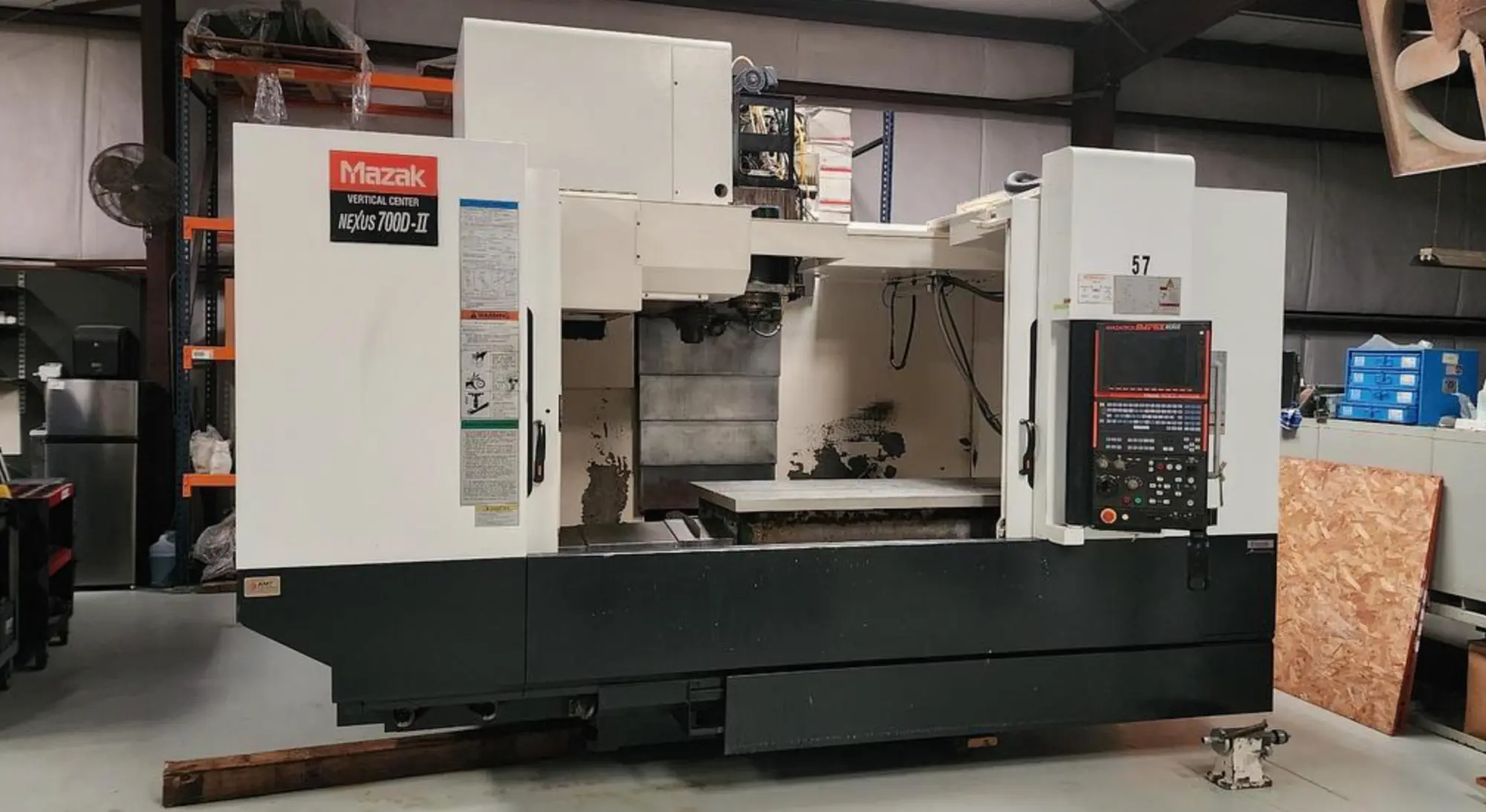

USED 2011 MAZAK VERTICAL CENTER NEXUS 700D/50-II
Overview
Description
Used Vertical Machining Center with 4th Axis. Features a 68.5" x 27.55" table, 60.24" X-axis travel, up to 6000 RPM spindle speed, and Mazatrol Matrix Nexus Control. Equipped with Chip Conveyor, Rotary Table, and Tailstock.
Specifications
| X | 60.24" | 1,530.1 mm |
|---|---|---|
| Y | 27.56" | 700.02 mm |
| Z | 25.59" | 649.99 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol Matrix) | CNC (Mazatrol Matrix) |
Table Size 68.5" x 27.55"
X-Axis Travel 60.24"
Y-Axis Travel 27.55"
Z-Axis Travel 25.59"
Table Load Capacity 2,640 lbs
Distance from Spindle Nose-to-Table Top 7.87″ Min ~ 33.46″ Max
Distance from Spindle C/L to Column 28.42″
Spindle Speed 26-6000 RPM (Hi-Torque Spindle)
Servo Magazine Capacity 24 Tools
Spindle Horsepower (30 Min/Cont) AC 30 HP
Equipped With
Mazatrol Matrix Nexus Control
Lan Port in Electrical Cabinet
MT Connect Pr
Work Light
North American Power Transformer
Relocation Device
Windows XP Operating Sys for Mazak Machine Control
MX Roller Guide Sys
Dual Probing Kit OMP60/OTS AA w/EIA Inspection Plus
MT Connect Adapter Software
Left Side Hinge Type Chip Conveyor for Steel
B(Synchronized Tapping)
Mazak MR-250RAM01 NC Rotary Table Package - 9.13" 3-Jaw Manual Chuck SC-9T
Kitagawa TS-250 Tailstock for Mazak MR-250
