| Mandrel Dia. (min) | 0.06" | 1.524 mm |
| Mandrel Dia. (max) | 6.5" | 165.1 mm |
| Stroke (min) | 0.125" | 3.175 mm |
| Stroke (max) | 16" | 0.4 m |
| Horz/Vert | Horz | Horz |
| Dimensions | R-L 30" X F-B 60" X Height 63" | R-L 30" X F-B 60" X Height 63" |
| Weight | 750 Lbs. | 750 Lbs. |

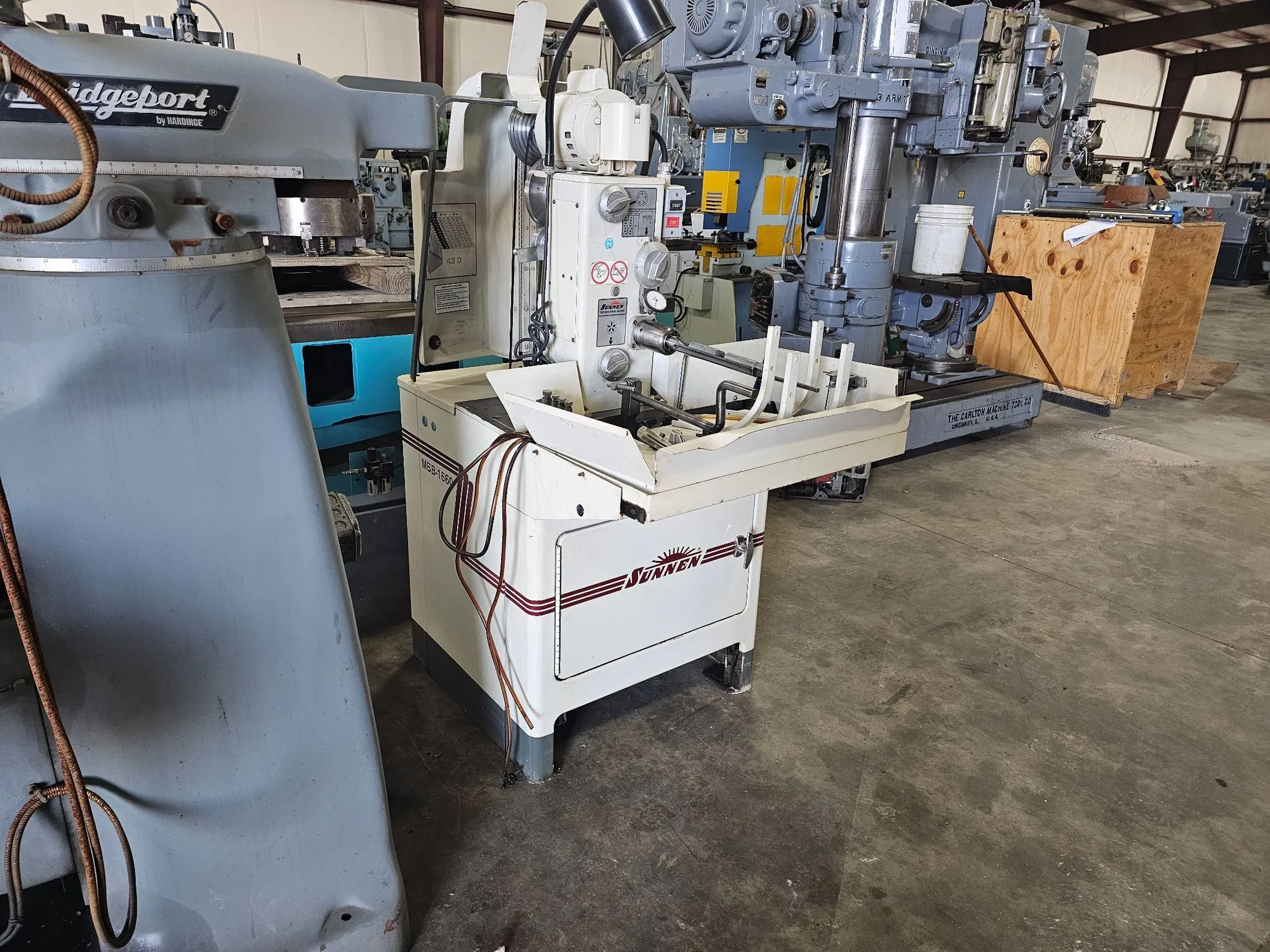

SUNNEN MBB-1660-CK Hone Honing Machine 2004’ USA
Model # MBB-1660
Serial # 1C1-96468
Year of manufacture- 2004
I.D. Range....................................0.060” – 6.500”
Length Range- Hones bores up to 16” in Length, depending on bore diameter
Spindle Speeds (12)...........................200, 250, 320, 400, 500, 640, 800, 1,000
..............................................1,270, 1,600, 2,000 & 2,500 R.P.M.
Spindle motor.................................½ H.P.
Single phase 115 / 230 or 120/240.............Currently Wired 115 Single phase
Machine dimensions............................R-L 30" X F-B 60"
Height........................................63"
Weight........................................750 Lbs.
Spindle brake- Self-Energizing Band Type......Yes
Full Length foot pedal........................Yes
Door for easy access to honing oil reservoir..Yes
Note:
Machine May be seen under power with proper notice.
