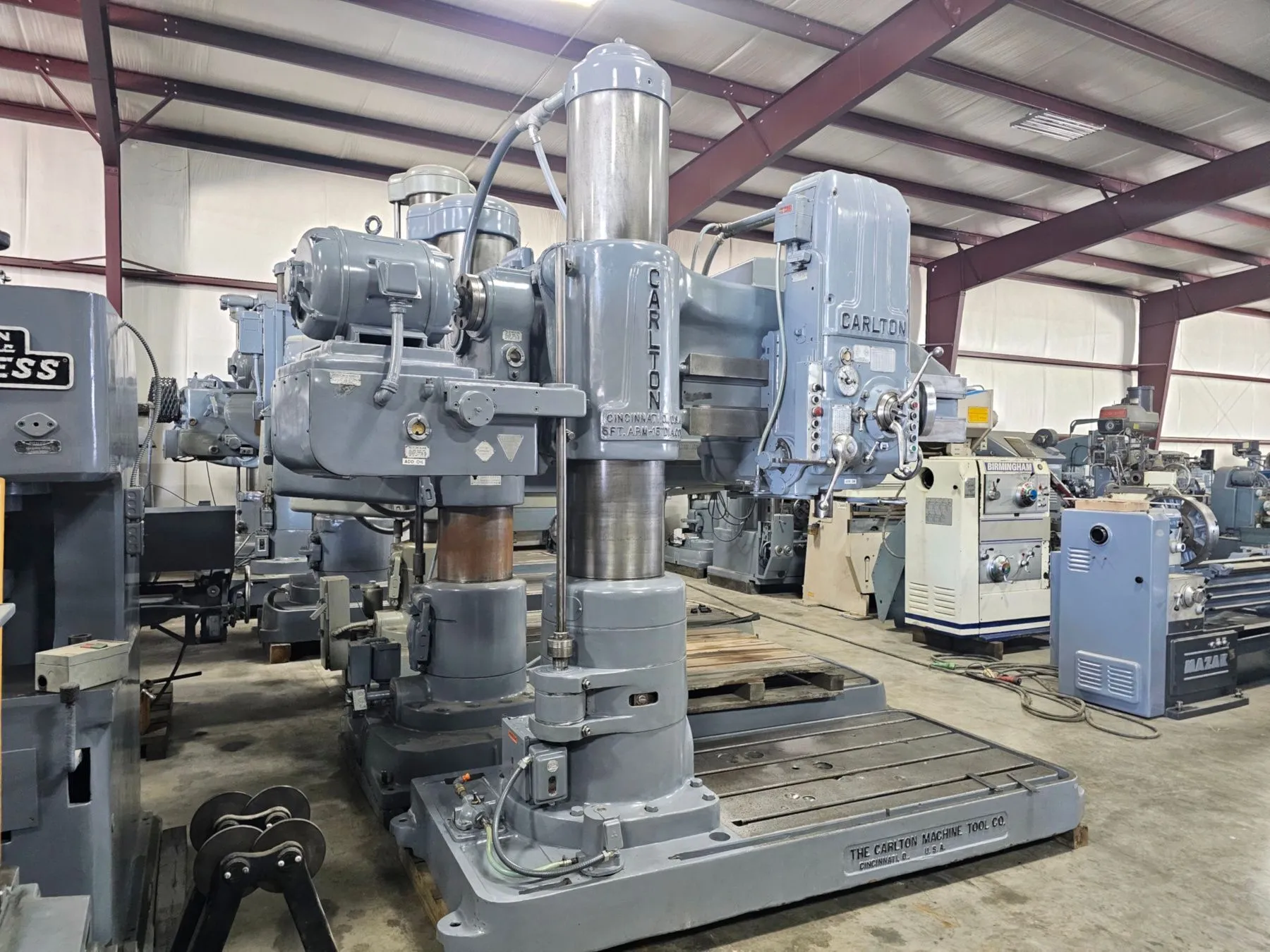

Carlton Model 5'X15" With 3A Head
| Arm Length | 5' | 1.5 m |
| Column Dia. | 15" | 381 mm |
| RPM | 1,500 RPM | 1,500 RPM |
| Power | 15 hp | 11.2 kW |
| Dimensions | R-L 120" X F-B 60" X Height 11'7" | R-L 120" X F-B 60" X Height 11'7" |
| Weight | 17,500 Lbs | 17,500 Lbs |
Arm Size....................................5'
Column Diameter.............................15"
Maximum Height Under Spindle................72"
Minimum Height Under Spindle................10-1/2"
Spindle Speeds..............................15 To 1,500 Rpm's
Spindle Taper...............................# 5
Spindle Travel..............................18"
Spindle Diameter............................3-5/16"
Spindle Feeds...............................004 To .125 I.P.R.
Tap Leads...................................8-1/2,11,14&18
Main Motor.................................15 Hp. 220/440 40/20 Amps.
Dimensions.................................R-L 120" X F-B 60"
Machine Height.............................11'7"
Machine Weight.............................17,500 Lbs.
Power Clamp................................Yes
Power Elevation............................Yes
Power Rapid Traverse To Head...............Yes
Coolant Pump...............................Yes
Note: Machine has been cleaned, painted and cycled.
The box table on machine go's to other machine. The table for the
machine is being cleaned.
All oil has been changed as well. Machine came out of the US Air Force.
Condition Very Good
