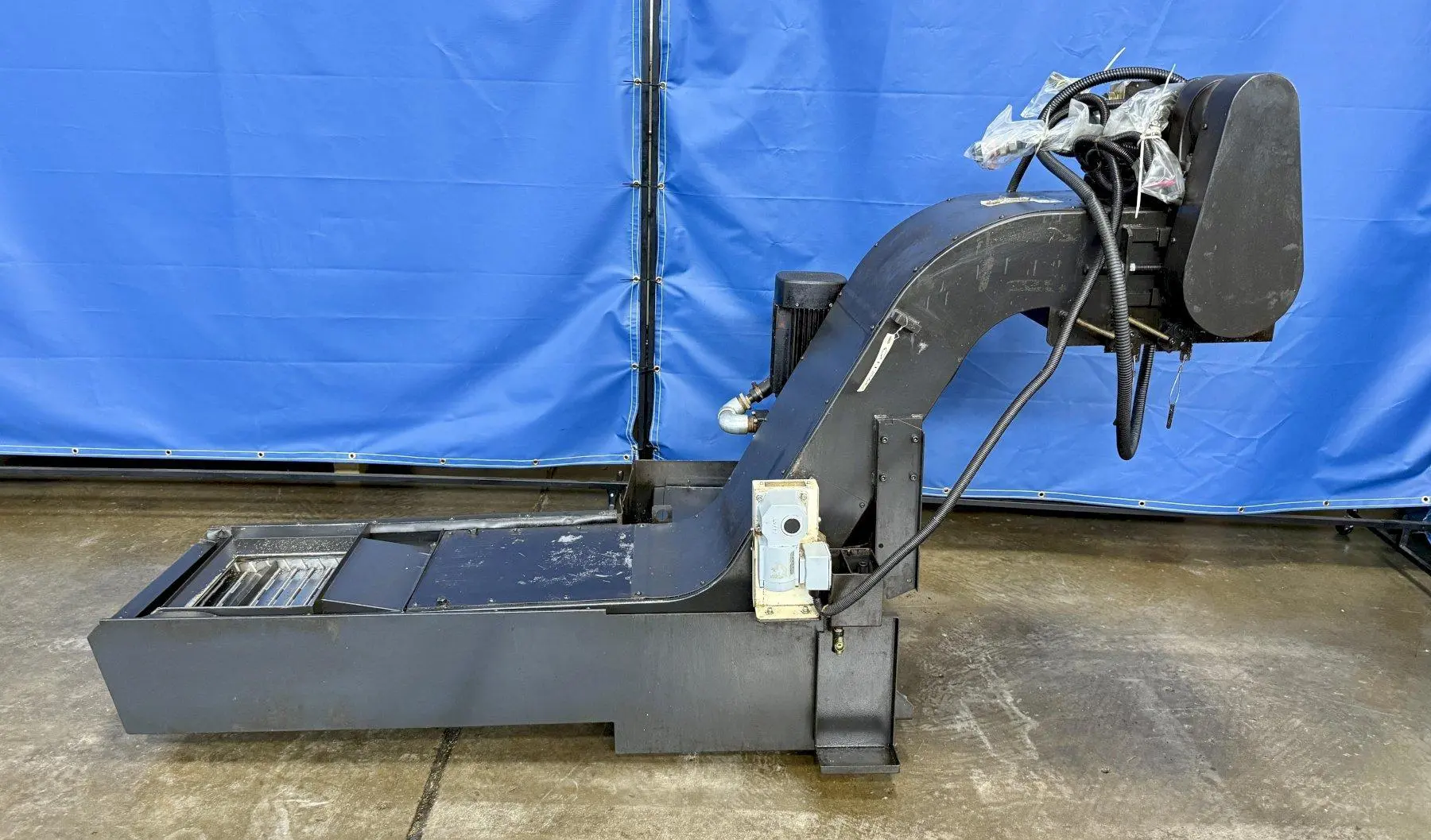

Chip Conveyor, 15" x 19" Chip Opening, 10" H x 20" W x 45" L in the Machine, 36" Discharge Height, Drain Thru Coolant Style, 93" Overall Length.
| Height in the Machine | 10" | 254 mm |
| Width in the Machine | 20" | 508 mm |
| Length that Extends into the Machine | 45" | 1,143 mm |
| Chip Opening-W | 19" | 482.6 mm |
| Chip Opening-H | 15" | 381 mm |
| Discharge Height | 36" | 914.4 mm |
| Overall Length | 93" | 2,362.2 mm |
| Overall Height | 58" | 1,473.2 mm |
| Motor Power | 0.5 hp | 0.4 kW |
| Dimensions | 39" x 93" x 58" | 39" x 93" x 58" |
| Weight | 1,500 lbs | 1,500 lbs |
Variable Speed Control Box, 1/2 HP Motor, Gearbox and Forward / Reverse Switch, Drain Through Coolant Design.
