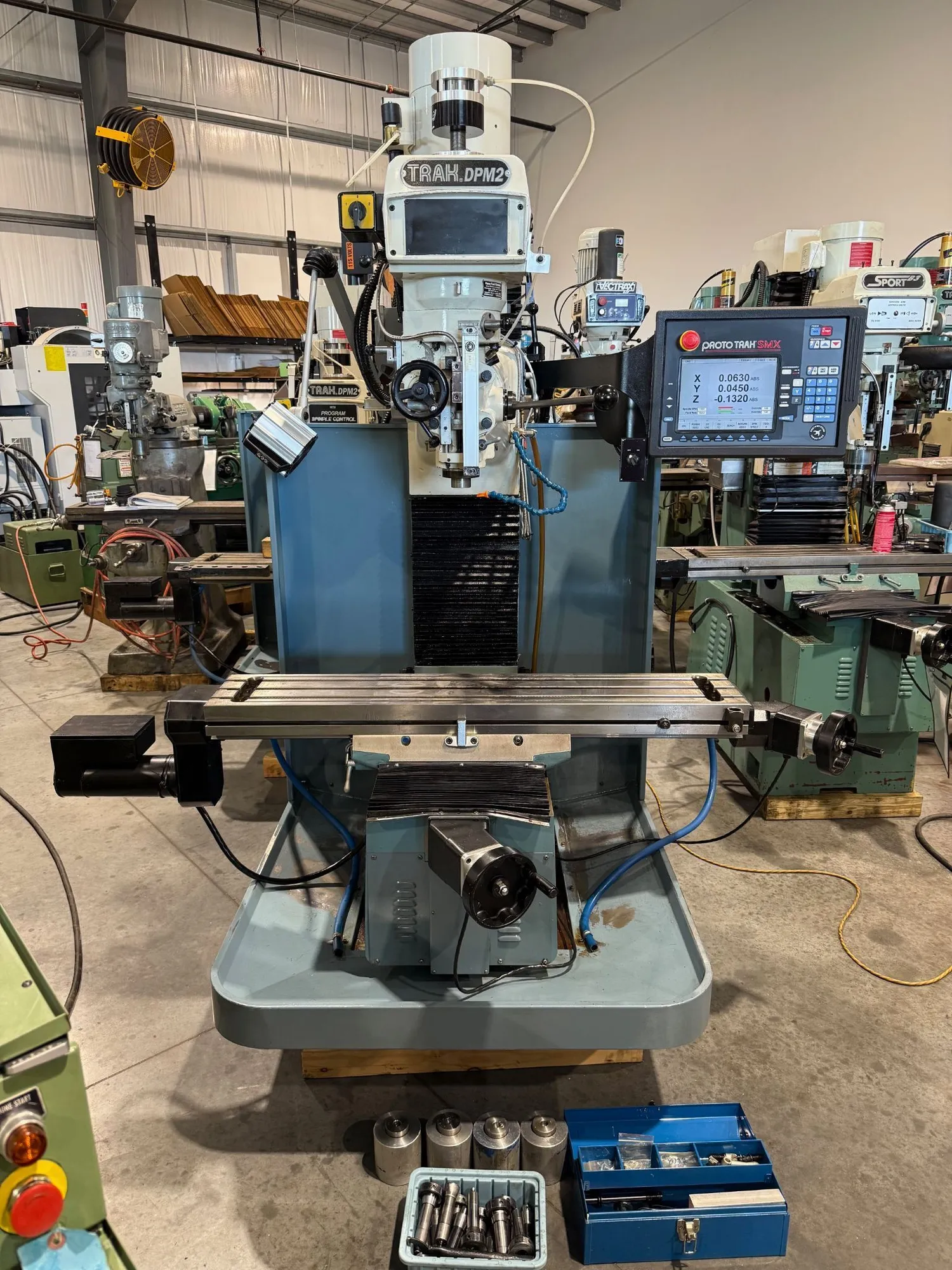

USED 2014 TRAK DPM SX2P

TRAK SWI DPM SX2P CNC Bed Mill 3 Axis 2014’ #7686
Reference # 7686
Model # DPM SX2P
Serial # 141DK466
Year of manufacture- 2014’ / control updated in 10/2022’
Table size- 9” x 49”
Max table load- 1,320 Lbs.
X axis travel- 31”
Y axis travel- 16”
Z axis travel- 27”
Quill travel- 5”
Spindle taper- R-8
Spindle speeds- 40 – 600 / 300 – 5,000 R.P.M.
Spindle center to column face- 18.5”
Head swivel- +/- 90°
Quill feeds- (3) 0.0015, 0.003, 0.006
Max spindle nose to table- 25.5”
X rapids- 150 I.P.M.
Y rapids- 150 I.P.M.
Z axis- 150 I.P.M.
