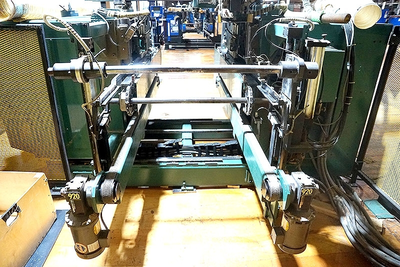

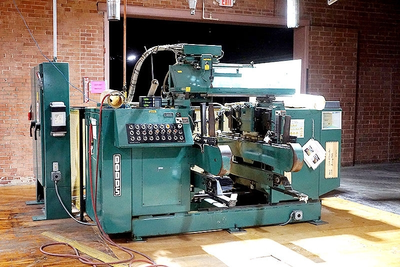

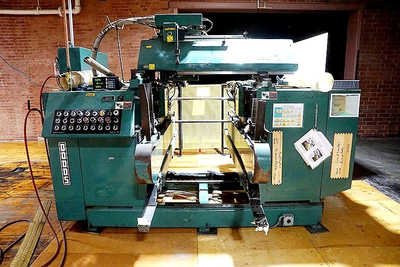

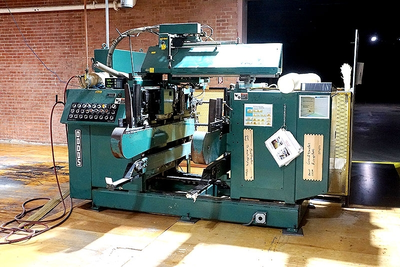

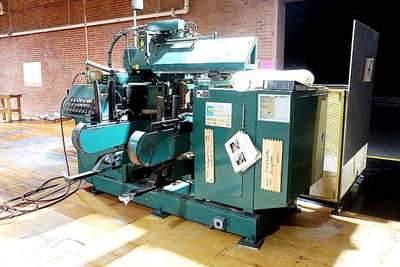

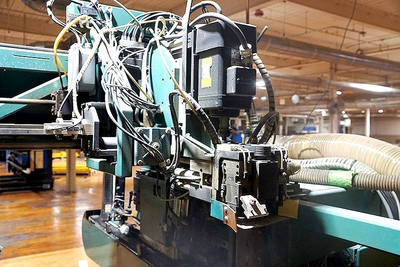

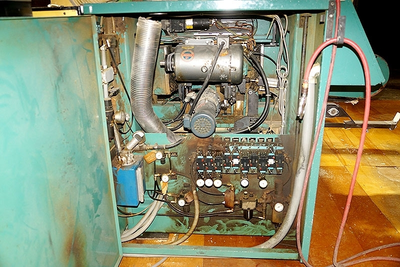

Dodds DE-760H Double End CNC Automatic English Drawer Dovetailer With Notching

Please note that this machine processes drawer sides only
Product length (left to right) 7-3/4" to 36"
(7-3/4" length must be 6" wide for processing)
Product depth (front to back) 1-3/4" to 12"
Product thickness 5/16" to 3/4"
Machine foot print 10' wide x 9'-4" long (suggested area 16' x 14')
Double end machine design
The machine process (2) matching drawer sides at one time

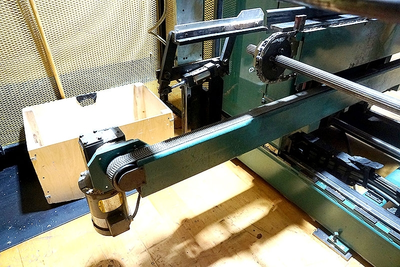

Infeed gravity hopper part feeder arms

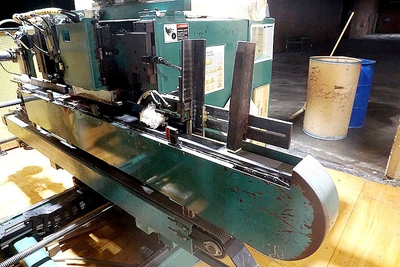

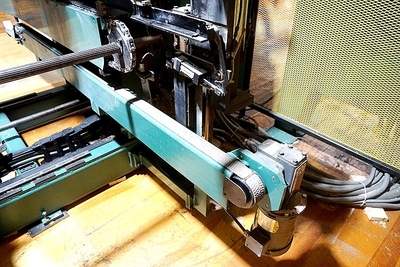

Feed through drive chain with push type feeder dogs

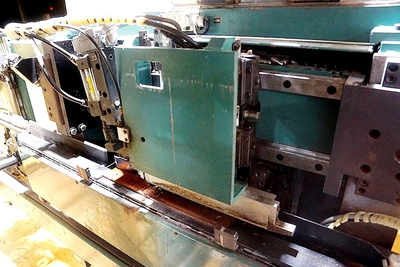

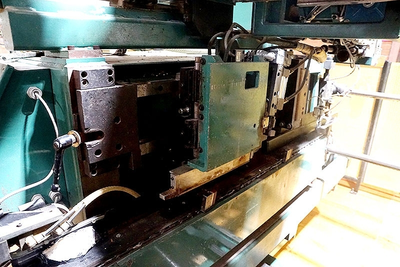

Pneumatic stock clamping at process station
1st station: (right and left hand) 15 spindle dovetailer heads
1" spindle centers machines english type dovetails
Automatic CNC control of spindle heads

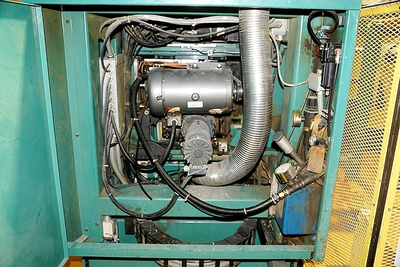

7-1/2 Hp, 230/460 volt three phase spindle drive motors
Oil mist spindle lubrication system

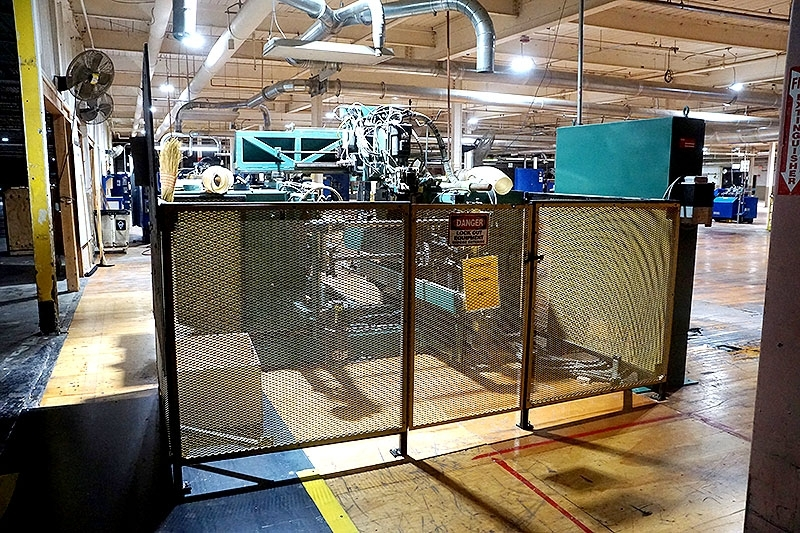

Enclosed machine area with side access doors
2nd station: overhead mounted drawer notching head
Automatic part advancement with conveyorized part return to the front of the machine

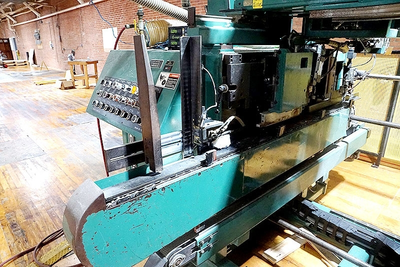

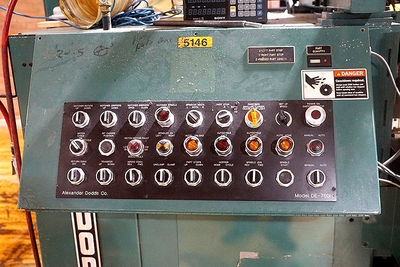

Front left hand operator control station
Sony DRO display
Push button/flip switch master machine controls

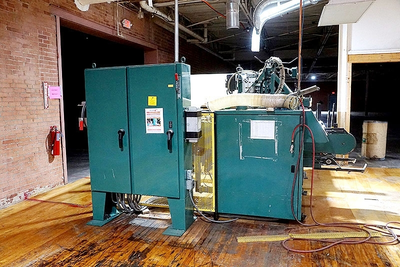

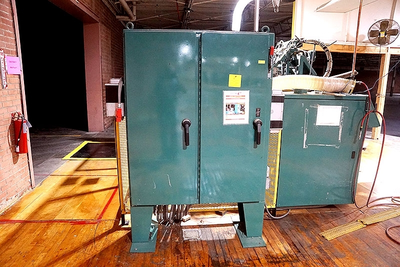

Freestanding electrical control cabinet
