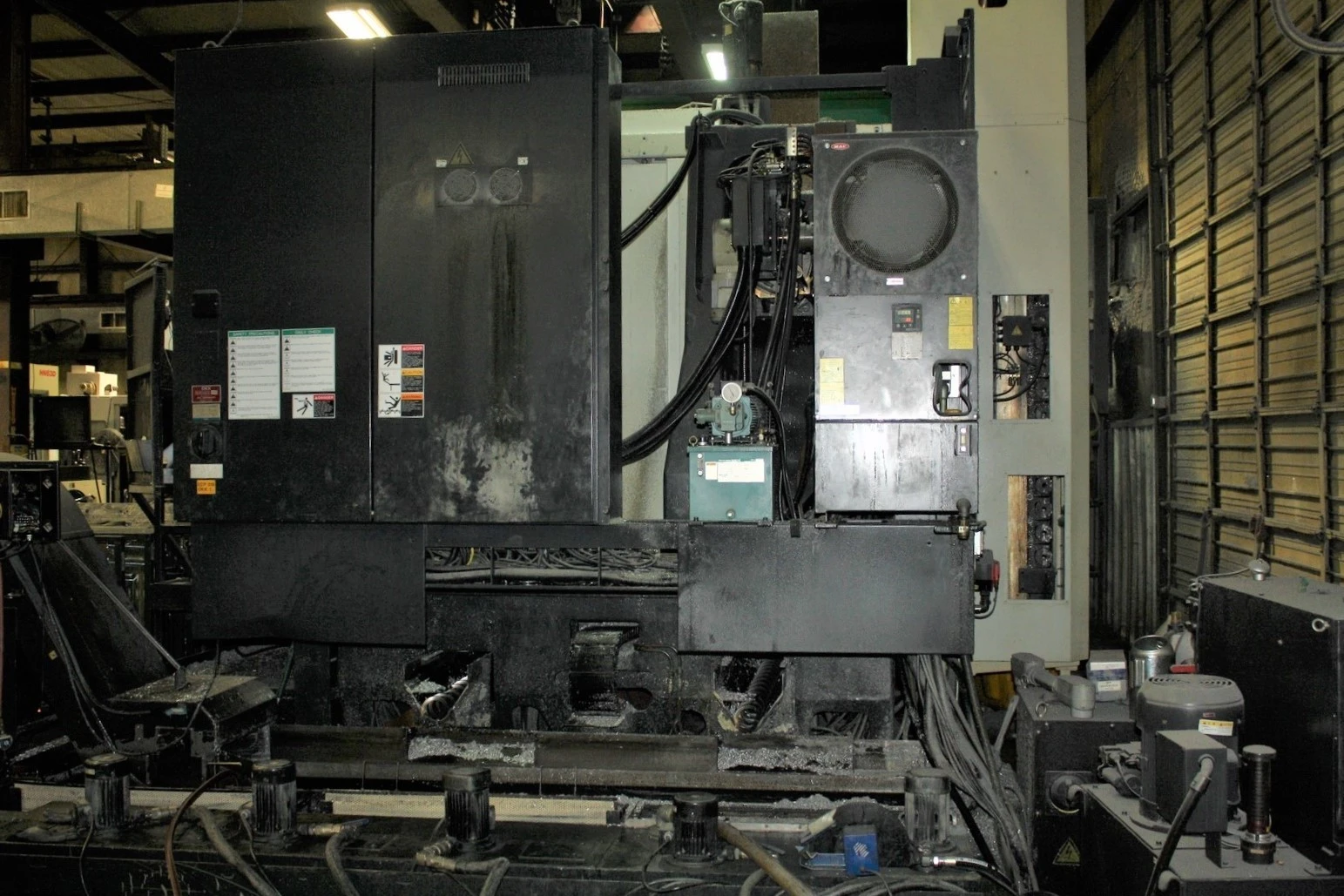

USED 2006 OKK HM-100S 4 AXIS

4 Axis, 50 Taper, 8000 RPM, Fanuc 160IS Cnc Control

OKK HM-100S 4-Axis CNC Horizontal Machining Center

Specifications:
Pallet Size 39.4 Square Inches (2)
Pallet Load Maximum 5512 Lbs.
Pallet Change Time 15 Seconds
Table Indexing Full 4th Axis
Travels: X-Axis 55.1"
Y-Axis 43.3"
Z-Axis 39.4"
Spindle Nose To Table 1.97" to 45.28"
Feeds, X,Y,Z Axis 1889 Ipm
Rrapid Traverse, X,Y,Z Axis 4500 mm/min
Spindle Taper #50
Spindle Speeds Up to 8,000 Rpm
Spindle Drive Motor 40 Hp
Tool Changer 60 Tool
Tool to Tool Time 2.5 Seconds
Tool Weight, Approx. 55 Lbs.
Chip to Chip Time 6 Seconds
Machine Weight, Approx. 55,000 Lbs.
Equipped with:
Fanuc 160IS Cnc Control
(2) 39.4 x 39.4 Pallets
Coolant Thru Spindle
Chip Conveyor
60 Position Automatic Tool Changer
