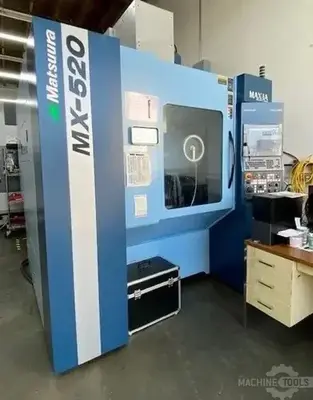

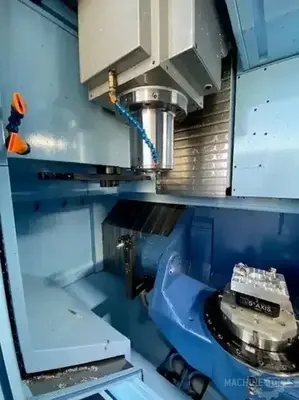

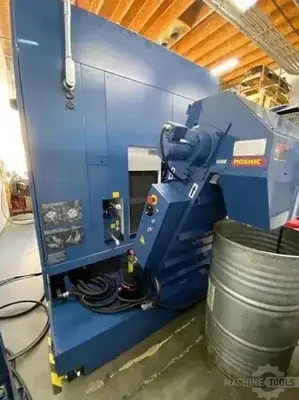

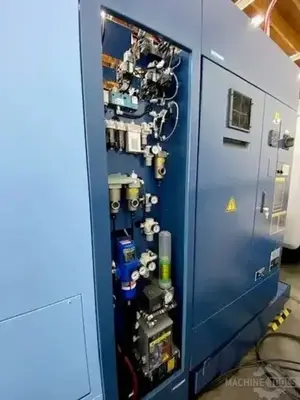

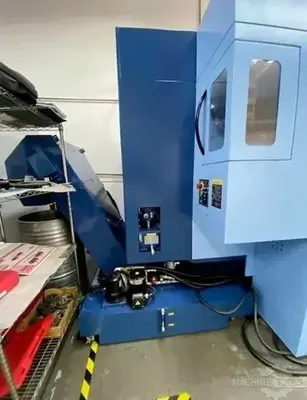

USED 2023 MATSUURA MX-520
Description
CNC Vertical Machining Center
Specifications
| X | 630 mm | 24.803" |
|---|---|---|
| Y | 560 mm | 22.047" |
| Z | 510 mm | 20.079" |
| # Axis | 5 | 5 |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | BT40 | BT40 |
Request a Quote
Add to Cart
X-Axis Travel: 24.8"
Y-Axis Travel: 22.04"
Z-Axis Travel: 20.07"
Spindle Speed: 20,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 HP
Tool Magazine Capacity: 60 ATC

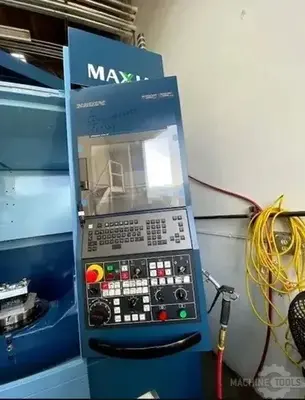

Control: Matsuura G-Tech 31i
Additional Axis: 5th Axis Trunnion Table
Table Size: 20.47" x 13.78"
Dimensions: 127" X 88" X 104"
8 Sets Of Extra M Function: Air Blow for Chip Removal
High-Speed/High-Precision 5-Axis Package: Renishaw NC-4 ATLM/BTD Laser Probe
Rotary Wiper System (Air Supply): Spindle Load Monitoring Function
Spiral Augers: Touchscreen Display Control
Twin Flat Tables: Vacuum Type Coolant
Renishaw OMP 400 IPM Probe: 3 Color Patrol Light
Environmental Thermal Displacement Compensation: Heidenhain Scale
