3 Axis,40 Taper, 30000 RPM, Bostomatic CNC Control
| size | 31" x 16" | 31" x 16" |
| X Travel | 30" | 762 mm |
| Y Travel | 16" | 406.4 mm |
| Z Travel | 20" | 508 mm |
| RPM | 30,000 RPM | 30,000 RPM |
| Taper | 40 | 40 |

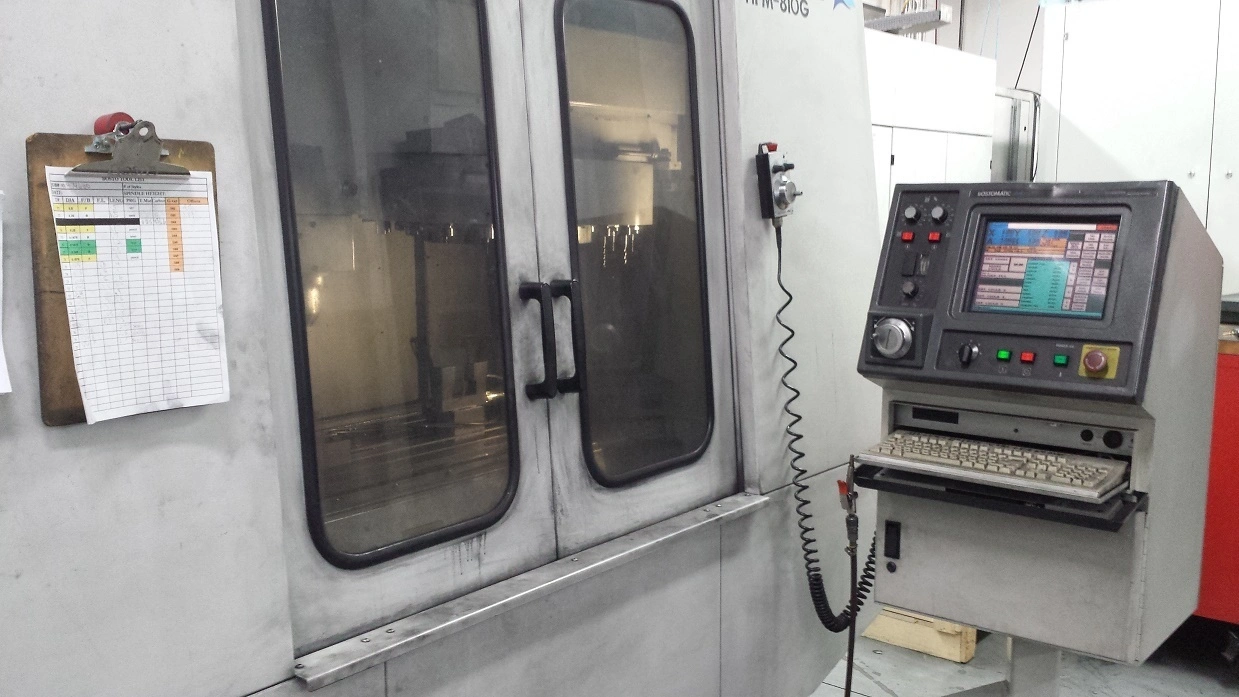

Bostomatic Model HPM-810G 3-Axis CNC Vertical Machining Center
Preliminary Specificatins
Table Size: 39.5" x 17"
X Axis: 31.8"
Y Axis: 16"
Z Axis: 20"
Spindle Speed: 30,000 RPM
Spindle Taper: HSK 40-E
Tool Capacity: 20 ATC
Spindle Motor Drive: 8 HP
Equipped with:
Bostomatic CNC Control
Full Guarding
Manual Pulse Generator / Remote Jog Handwheel
Graphite Package (spindle fan and plumbing)
Pneumatically Activated Drawbar
Coolant 30% Dowtherm SR-1 / 70% Distilled Water
