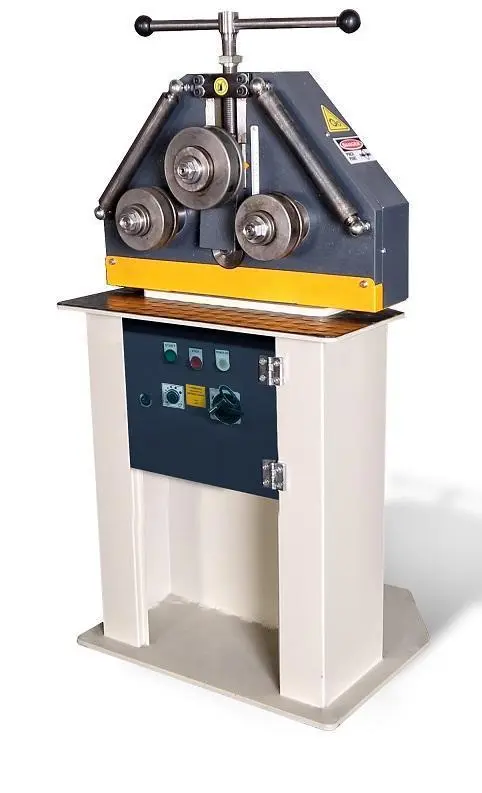

3/16" x 1-1/2" x 1-1/2" Demo CT - Sahinler Angle Bending Roll Model PK-30

Demo Sahinler CT Angle Bending Roll
Model PK-30

  Capacities:
         Pipe.....: 1-1/2" Schedule 40 (SP)
         Tubing...: 2-3/8" x .080" Round (SP)
                  : 1-1/2" x .125" Square
                  : 2" x 1-1/4" x .125" Rectangle
         Flat Bar.: 3" x 5/8" Easy Way
                  : 2" x 3/8" Hard Way
         Solid Bar: 1-3/16" Square and Round (SP)
         Angle....: 1-1/2" x 1-1/2" x 3/16" Leg Out
                    1-1/2" x 1-1/2" x 3/16" Leg In (SP)
         Channel..: 2" x 1" x 3/16"

  Note: Shapes above marked (SP) require optional special rolls. The other
  shapes can normally be rolled with standard rolls supplied with machine.
  Rolling leg in requires optional leg-in guide rolls and may require special
  rolls.
Specifications:
         Diameter of Shaft       : 1-3/16"
         Electrics               : 1-1/4 HP, 220 Volt, 3 Phase
         Weight                  : 500 lbs.

  Features:
         Steel Frame
         Two rolls driven
         Two Rolling Speeds
         Manually adjusted vertical roll
         Hardened and Ground Shafts and gears
         Shafts rotate on opposed tapered roller bearings
         Lateral straightening rolls
         Linear Scale to indicate position of vertical roll
         Horizontal and Vertical Operation
         Full Cabinet Base with Door
         Movable Foot Control

  FOB: New York
