Southwestern Industries Trak LPM 31" x 18" x 21" CNC Vertical Machining Center (2009), 31" x 18" x 21" ., 40 Taper, 8000 RPM, 16 ATC, 15HP, Prototrak PMX CNC Control, Wired For 4th Axis
| size | 31" x 18" | 31" x 18" |
| X Travel | 31" | 787.4 mm |
| Y Travel | 18.5" | 469.9 mm |
| Z Travel | 21" | 533.4 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | 40 | 40 |
| Table-W | 19" | 482.6 mm |
| Table-L | 35" | 889 mm |
| # Axis | 3 | 3 |
| Control | CNC (Prototrak PMX) | CNC (Prototrak PMX) |

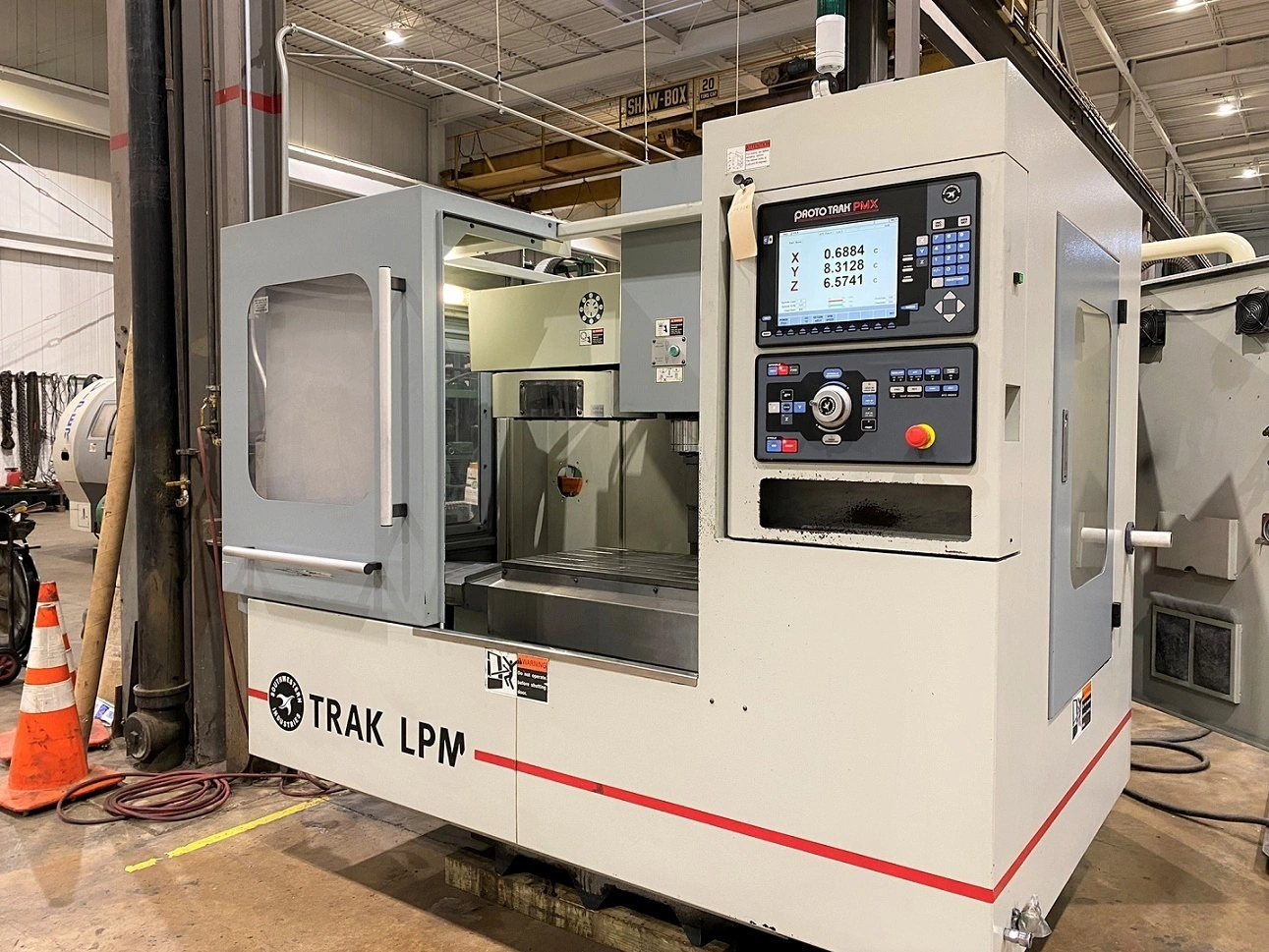

Southwestern Industries Trak LPM CNC Vertical Machining Center
40 Taper, 8000 RPM, 16 ATC, 15HP, Prototrak PMX CNC Control
Specifications (Preliminary)
Table Working Surface: 35-3/8" X 19-5/8"
X-Axis Travel: 31"
Y-Axis Travel: 18.5"
Z-Axis Travel: 21"
Spindle Taper: 40
Spindle Speed: 8,000 RPM
Tool Changer Positions: 16 ATC
Main Motor Drive: 15 HP
Approximate dimensions: 14'L x 7.5'W x 9'H
Equipped with: Prototrak PMX CNC Control, Wired For 4th Axis
Wired For 4th Axis, 40 Taper, 8000 RPM, 16 ATC, 15HP, Prototrak PMX CNC Control
