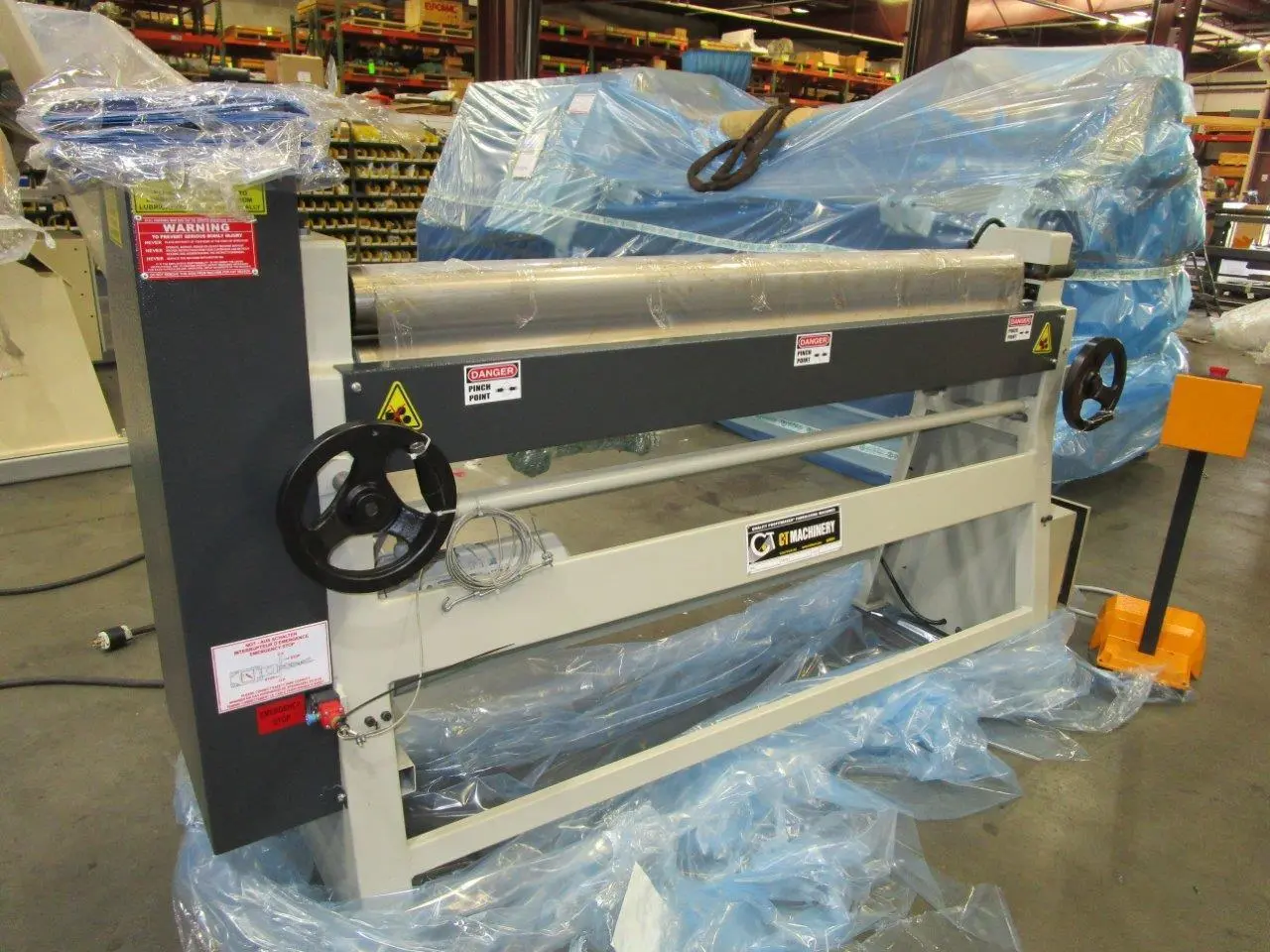

3.94" Diameter x 41.34", NEW CT-Sahinler Power Bending Roll Initial Pinch - Model MSM 1050-100
Overview
Specifications
NEW CT- Sahinler Power Bending Roll - Initial Pinch - Model MSM 1050-100
Model Number MSM 1050 – 100
The capacity in mild steel is 3’ x 10 ga.
The machine has the following features:
Cast iron frames for rigidity and stability
Brake-motor for rapid stopping of rolls rotation
Upper and lower rolls driven
Lower and rear rolls adjustable
SAE 1050 Quality Certified Steel rolls with high tensile strength
Convenient hand wheels for adjustment
Upper roll swings out for removal of completed cylinder
Locking device keeps the roll in position during rolling
The rear roll can be readily tilted to facilitate cone bending
The machine has the following specifications and standard equipment:
Diameter of all rolls - 3.94”
Overall bending length - 41.34”
Rolling speed - 19-1/2’ per minute
Motor HP - 1-1/2
Electrics 3/60/220/440. Low voltage at the controls.
Moveable foot control on a trailing lead. Emergency stop button on the control.
Emergency stop wire at front and rear of the machine.
Cone bending attachment.
Rolls grooved for three sizes of round bar: 3/8”, 1/2”, 5/8”.
Scale to indicate position of the rear roll.
Dimensions, L x W x H (approximate): 65” x 28” x 48”
Weight - approximately 1,100#
FOB: Maryland
.
