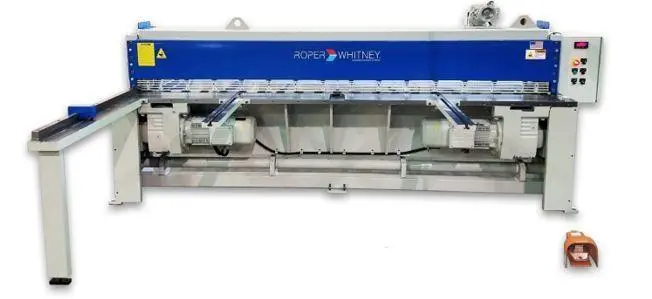

10 Ga x 10 ft. New Roper Whitney Mechanical Power Shear Model PX1010-R
Overview
Specifications
New Roper Whitney Mechanical Power Shear
Model PX1010
Specifications:
CUTTING LENGTH ........................... 121"
CUTTING CAPACITY .(MILD STEEL)............ 10 GAUGE
CUTTING CAPACITY .(STAINLESS STEEL)....... 14 GAUGE
STROKES PER MINUTE ....................... 45
BACK GAUGE RANGE ......................... 30"
NUMBER OF HOLDDOWNS ...................... 16
MOTOR HP ................................. 7.5
Equipped With:
- "PRO PACKAGE" CONSISTING OF:
- 30" FRONT OPERATED POWER BACK GAUGE WITH DRO & FINE TUNING HAND WHEEL
- FRONT SUPPORT ARMS
- 5' SQUARING ARM
- REAR DROP AIR OPERATED SHEET SUPPORT SYSTEM
- SINGLE, CONTINUOUS AND JOG STROKE CYCLES
- FOOT PEDAL
- FOUR EDGE HIGH CARBON, HIGH CHROME BLADES
- SELF LEVELING HOLDDOWN FEET WITH NEOPRENE INSERTS
- PRECISION MACHINED T-SLOTTED TABLE
- INLAID INCH/METRIC BED SCALES
DIMENSIONS: 145" X 78" X 60"
WEIGHT: 9,200 LBS.
FOB: Origin
