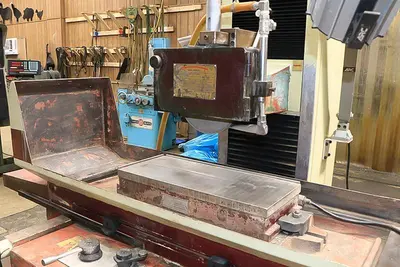

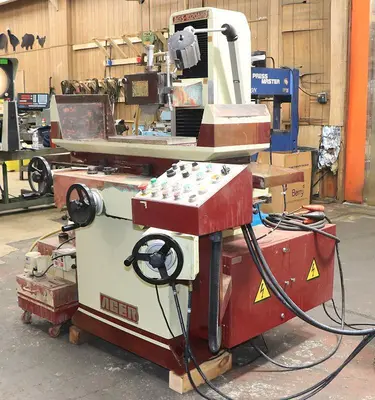

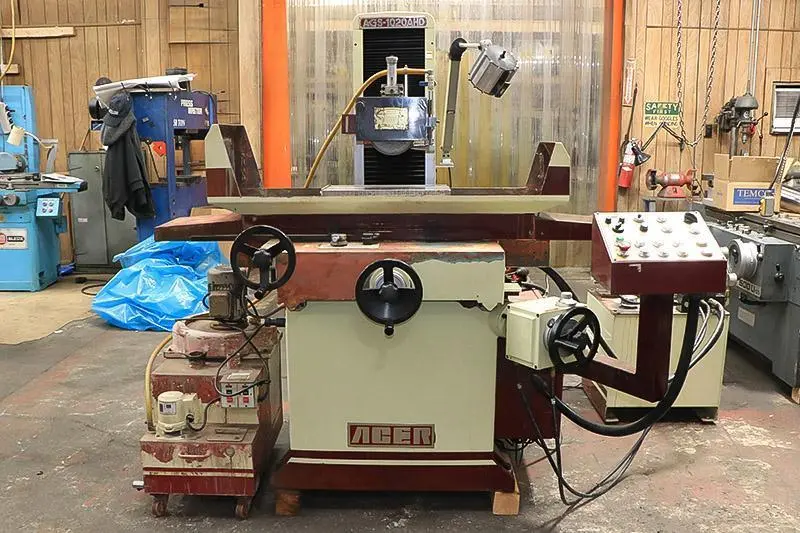

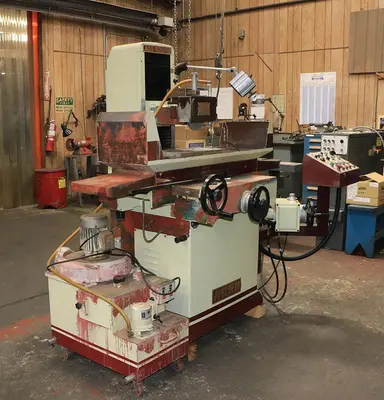

8" X 18" ACER HYDRAULIC SURFACE GRINDER W/AUTOMATIC INCREMENTAL DOWNFEED

8" X 18" ACER HYDRAULIC SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: AGS-1020AHD
NEW: 2007

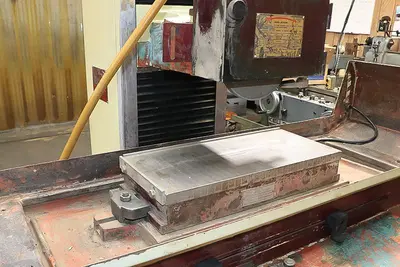

MAX. SURFACE GROUND ........................ 10" X 20"
DIST. FROM SPINDLE CENTER TO TABLE ......... 19- 1/2"

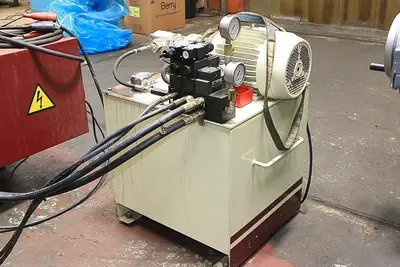

VARIABLE TABLE SPEED, HYDRAULIC ......       16' TO 80' FPM
MAX. TABLE TRAVEL .......................... 20- 1/2"
AUTOMATIC CROSSFEED INCREMENT .............. 0" TO 1"
MAX. CROSSFEED TRAVEL ...................... 11"

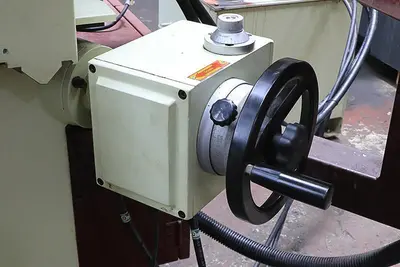

DOWNFEED HANDWHEEL PER GRADUATION .......... 0.0005"
PER REVOLUTION ............................. 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ......... 0.001"
PER REVOLUTION ............................. 0.2"
AUTO INCREMENTAL DOWNFEED .................. 0.001" TO .0001"
SPINDLE MOTOR .............................. 2 H.P.
STANDARD GRINDING WHEEL .................... 8"D X 1/2" X 1- 1/4"
MAXIMUM TABLE LOAD CAP. INCLUDING CHUCK ..   700 LBS.
APPROX. WEIGHT ............................. 2,970 LBS
FLOOR SPACE REQUIRED ....................... 71"L X 55"W X 70"H
