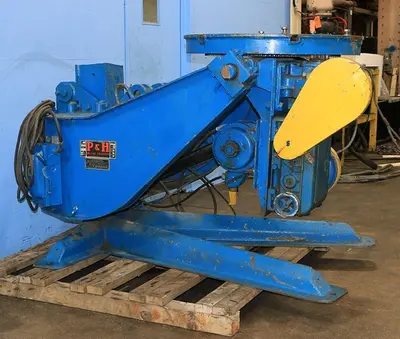

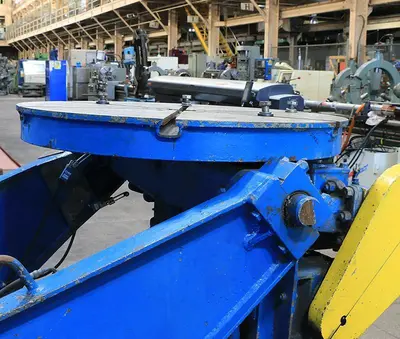

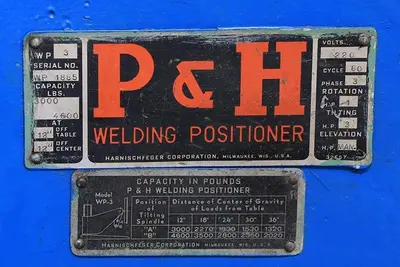

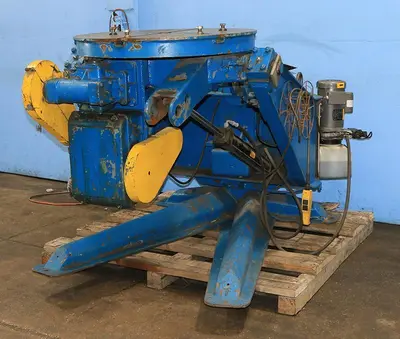

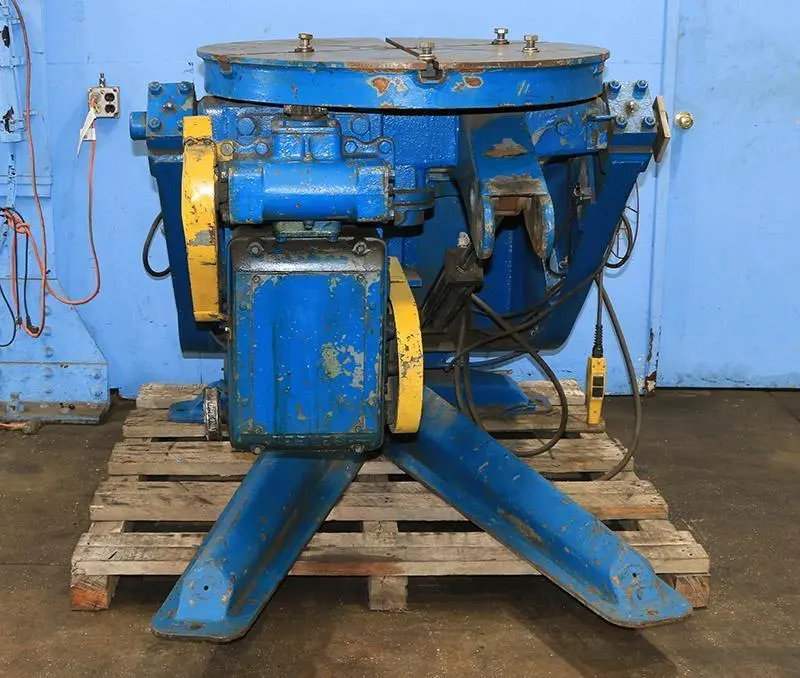

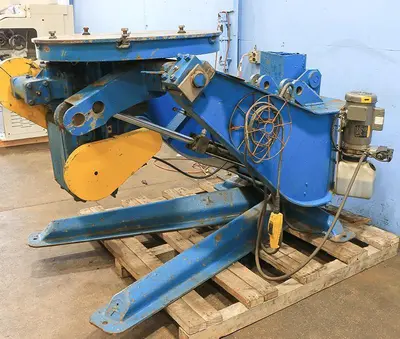

USED P & H 3

P & H 3,000 LB. WELDING POSITIONER
MODEL 3
SPECIFICATIONS:
POWER TILT ............................................ 135 DEGREES
CAPACITY .............................................. 3,000 LBS. @ 12" OFF TABLE
CAPACITY .............................................. 4,600 LBS. @ 12" OFF CENTER
TABLE SIZE ............................................ 36"
TILTING MOTOR HP ...................................... 3
ROTATION MOTOR HP ..................................... 1

MOTOR SPECS: 220 v / 60 HZ / 3 PH


- MANUAL ADJUSTABLE TABLE HEIGHT
- VARIABLE SPEED ROTATION
- MOTORIZED TILT
- PENDANT CONTROL

FOB: Origin
