| size | 25" X 25" | 25" X 25" |
| X | 31" | 787.4 mm |
| Y | 25" | 635 mm |
| Z | 25" | 635 mm |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 120 | 120 |
| Taper | 50 | 50 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24.8" | 629.92 mm |
| # Axis | 4 | 4 |

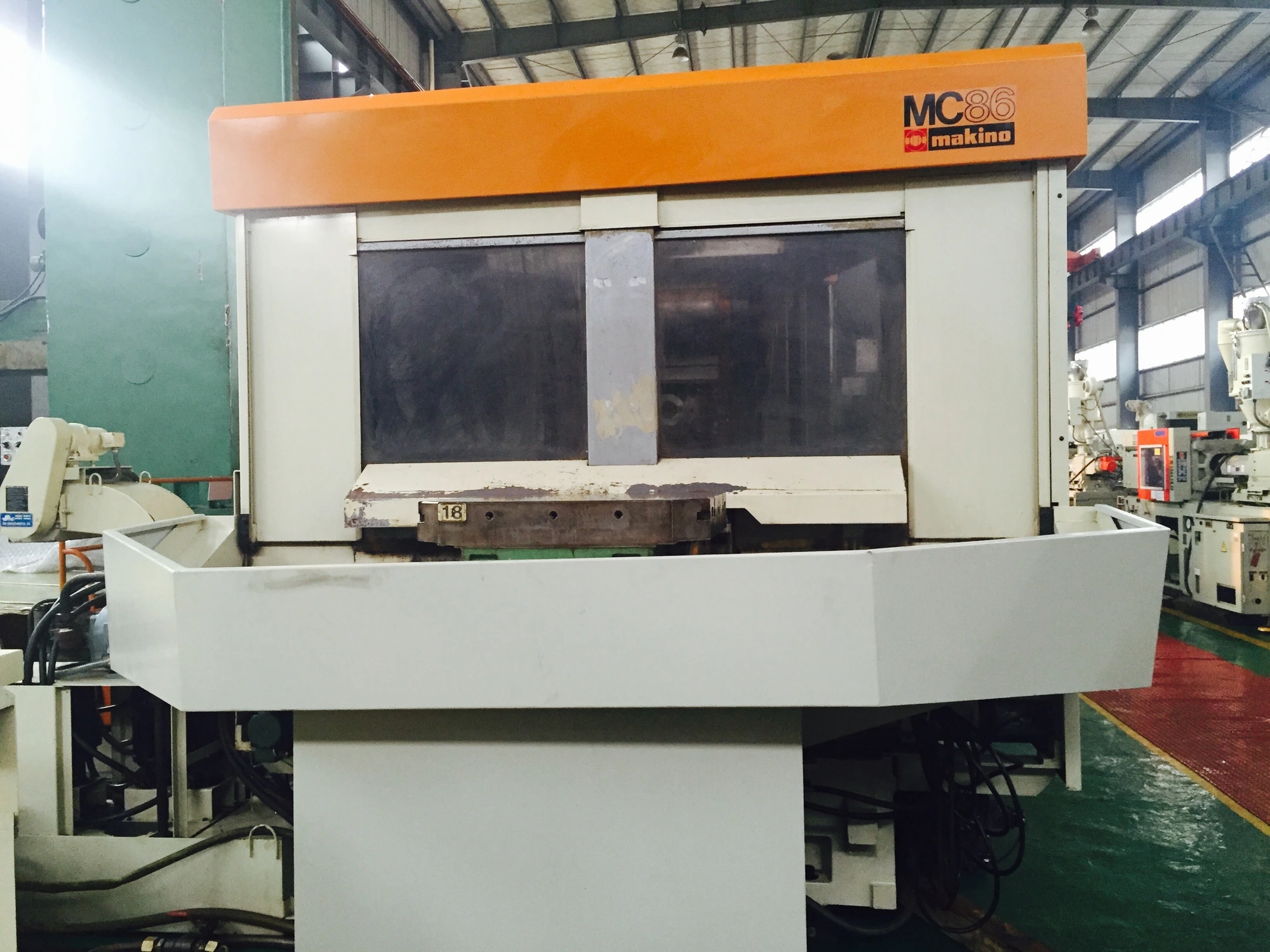

Makino Model MC-86 A-120 4-Axis CNC Horizontal Machining Center
Table Size: 24.8" X 24.8"
X-Axis Travel: 31.9"
Y-Axis Travel: 25"
Z-Axis Travel: 25"
Table Indexing: 360,000 Degrees
Spindle Taper: CT 50
Spindle Speeds: 4,000 RPM
Tool Capacity: 120 ATC
Spindle Motor: 15/20 HP
Spindle Center to Table Top: 3.9" to 28.9"
Spindle Nose to Pallet Center: 7.9" to 32.8"
Equipped with:
Fanuc 15M CNC Control
Full Contouring B Axis Table
Probe Ready and Touch Off
Dual Auger Conveyors
2 Extra Pallets
120 Tool Pallet Changer
