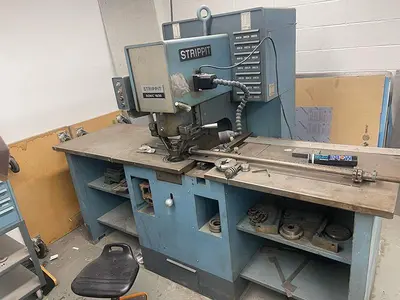

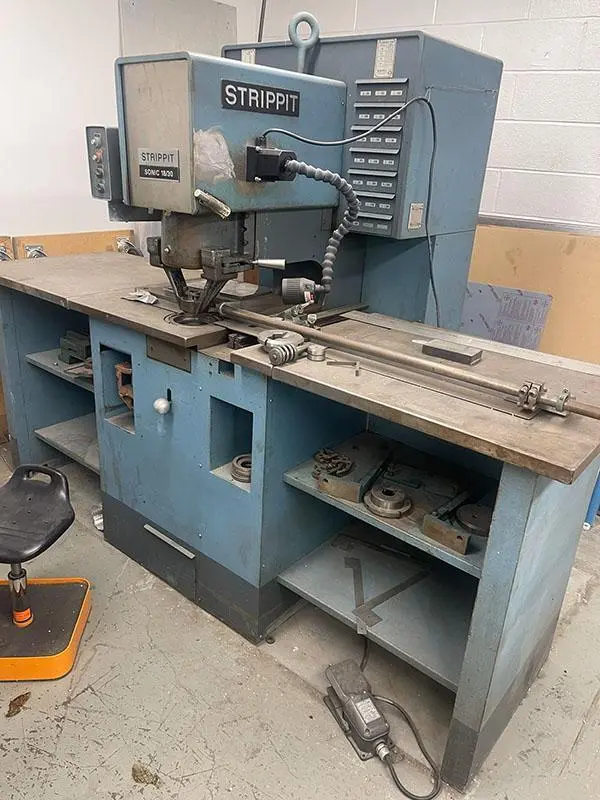

30 Ton STRIPPIT Single Station Punch, Model: Sonic 18/30

30 Ton STRIPPIT Single Station Punch

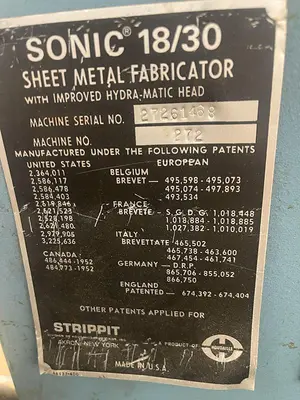

Model:  Sonic 18/30

Specifications:
Capacity ....................... 30 Ton
Stock Size ..................... 18” x 30”
Material Thickness ............. 1/4” max
Max. Hole size ................. 3/4" in 1/4" m.s.
Throat depth ................... 18”
Shut Height .................... 5-13/32"
Stroke ......................... 5/8”
Strokes per min. ............... 165
Motor .......... 1 HP / 1,200 RPM, 230/460 V, 3-phase
Overall Dim.............. 67” x 88” x 67”
Weight.................... 3,800 lbs.

Equipped with:
- ELECTRIC FOOT PEDAL

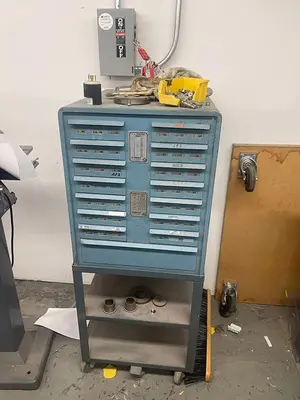

- MISCELLANEOUS TOOLING & CABINETS
- 1-1/4" & 3-1/2" TOOL HOLDERS
- CORNER NOTCHING DIE
- LAMP
- BACKGAUGE WITH FINGER STOPS
FOB: Origin
