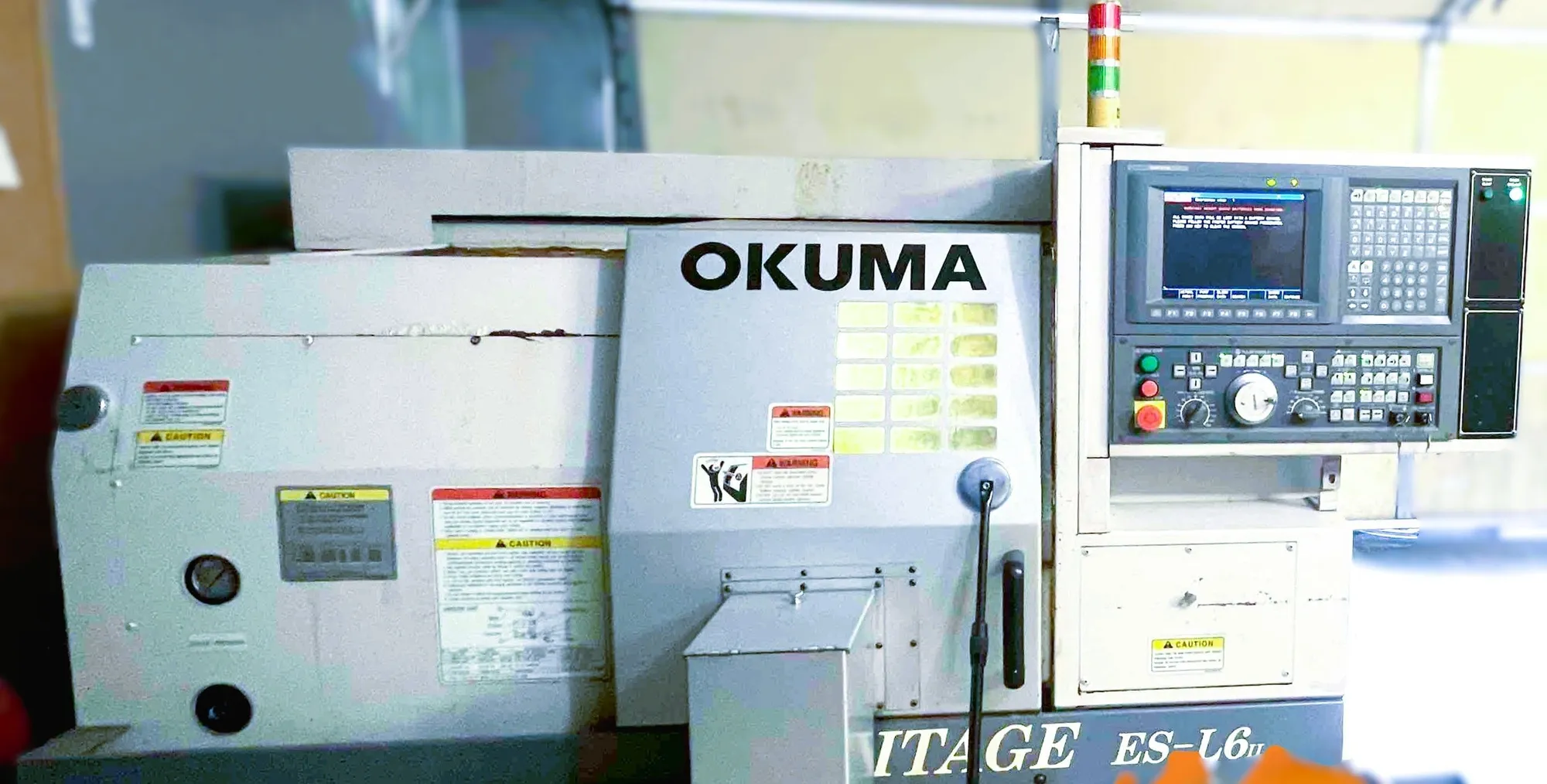

USED 2005 OKUMA HERITAGE ES-16II
Overview
Description
OKUMA Heritage ES-L6II CNC Lathe, New in 2005. Chip Conveyor. 6" Chuck. Spindle Orientation. 6000 RPM. OSP Control.
Specifications
| Swing | 17.72" | 450.09 mm |
|---|---|---|
| Machining Length | 21.65" | 549.91 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.69" | 42.926 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 8.27" | 210.06 mm |
| Tailstock | Yes | Yes |
| Control | CNC (OSP-U10) | CNC (OSP-U10) |
X-Travel: 6.10"
Z-Travel: 12.60"
Distance Between Centers: 22"
Max Swing Over Bed: 17.72"
Max Turning / Cutting Length: 11.02"
Max Cutting / Turning Diameter: 8.27"
Rapid Traverse: 787/984 IPM
Spindle-
Bar Capacity: 1.69"
Chuck Size: 6.0"
Chuck Type: Hydraulic
Chuck Description: 3-Jaw Chuck
Spindle Bore: 2.09"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Second Spindle
Total Spindles: 1
Turret-
Single Turret: Equipped With
Tool Positions: 12
Control-
Control Make/Model: Okuma OSP-U10L CNC Control
Control Options: Color Monitor;Spindle Orientation
Additional Control Options: 10.4" TFT Color Touch Display
Tailstock / Steadyrest
Tailstock: Equipped With
Equipped With
Parts Catcher
Chip Conveyor
