4th & 5th axis, M plus cnc
| size | 24" x 24" | 24" x 24" |
| X | 41 mm | 1.6142" |
| Y | 31 mm | 1.2205" |
| Z | 32 mm | 1.2598" |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 120 | 120 |
| Taper | 50 | 50 |
| Pallet-W | 24.8 mm | 0.9764" |
| Pallet-L | 24.8 mm | 0.9764" |
| # Axis | 3 | 3 |

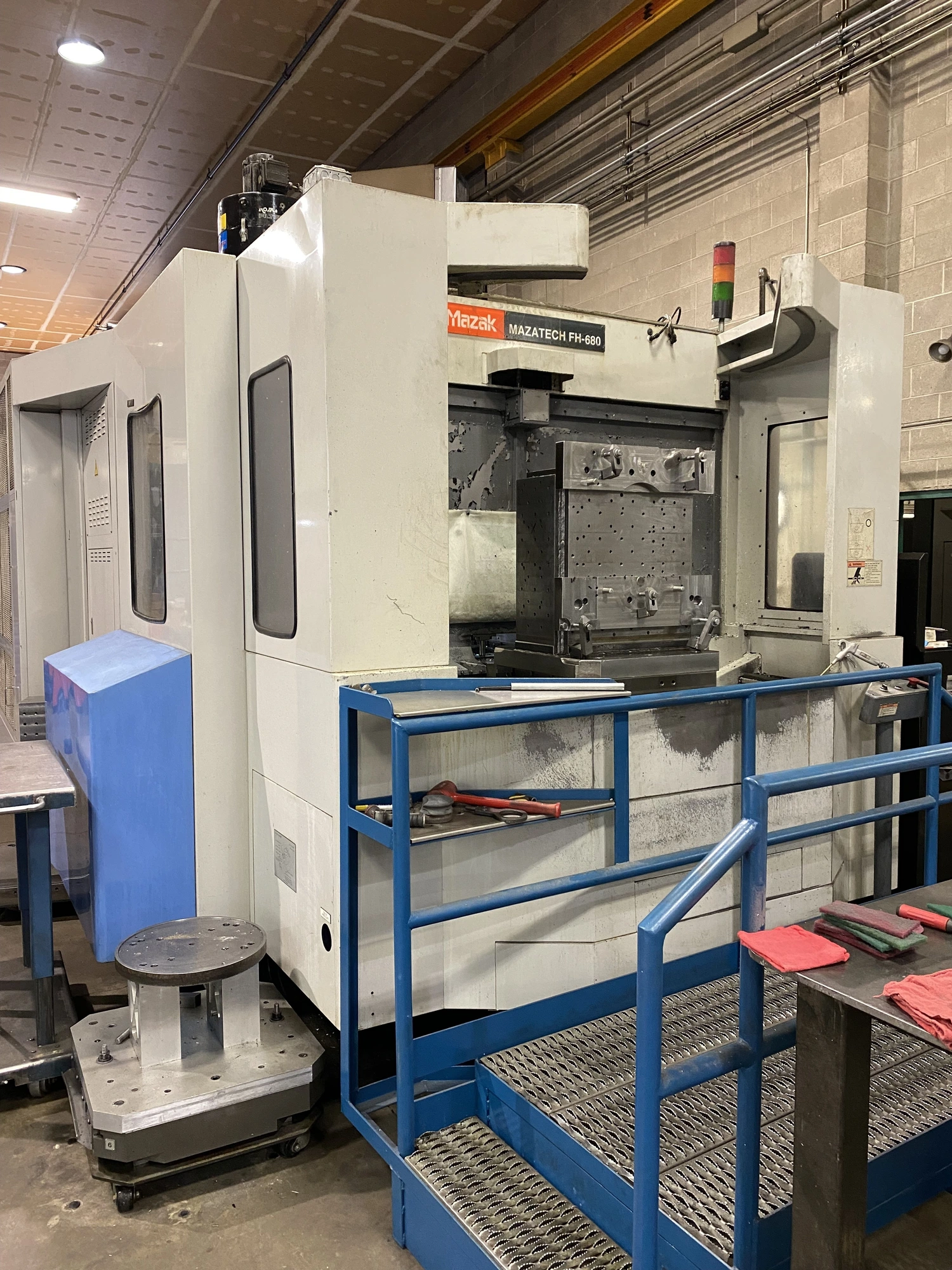

Mazak FH-680 Horizontal Machining Center
Specifications:
Pallet Size 24.8" x 24.8"
Pallet Index 1 Degree
Number of Pallets 2
Travels: X-Axis 41.9"
Y-Axis 31.5"
Z-Axis 32.4"
Spindle Speed Up to 10,000 Rpm
Spindle Taper Cat #50
Main Motor 30/40 Hp
Rapid Traverse Rate 1,260 Ipm
Spindle Nose to Table Center 7.87" to 40.35"
Pallet Top to Spindle Center 3.93" to 35.4"
Maximum Feed Rate 0.4 to 1,260 Ipm
Maximum Table Load 3,300 Lbs.
Tool Capacity 120 Tools
Machine Weight, Approx. 43,600 Lbs.
Mazatrol M-Plus Cnc Control
Twin Pallet Machine
120 Station Tool Changer
Rigid Tapping
Chip Conveyor
High Pressure Coolant Thru Spindle
Air Blast
Set up for Probe
Full 4th Axis
Full 5th Axis, Rotary table mounted on pallet
Coolant with Magnetic Chip Separator
Machine is Under Power
