Dainichi Model M112 58" X 236" CNC Flat Bed Lathe, 58" Swing Over Bed, 43" Swing Over Cross, 236" Centers, Fanuc Control
| size | 40" Chuck | 40" Chuck |
| Swing | 58" | 1,473.2 mm |
| Machining Length | 236" | 5,994.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 40" | 1,016 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 500 RPM | 500 RPM |
| Turning Dia | 43" | 1,092.2 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |

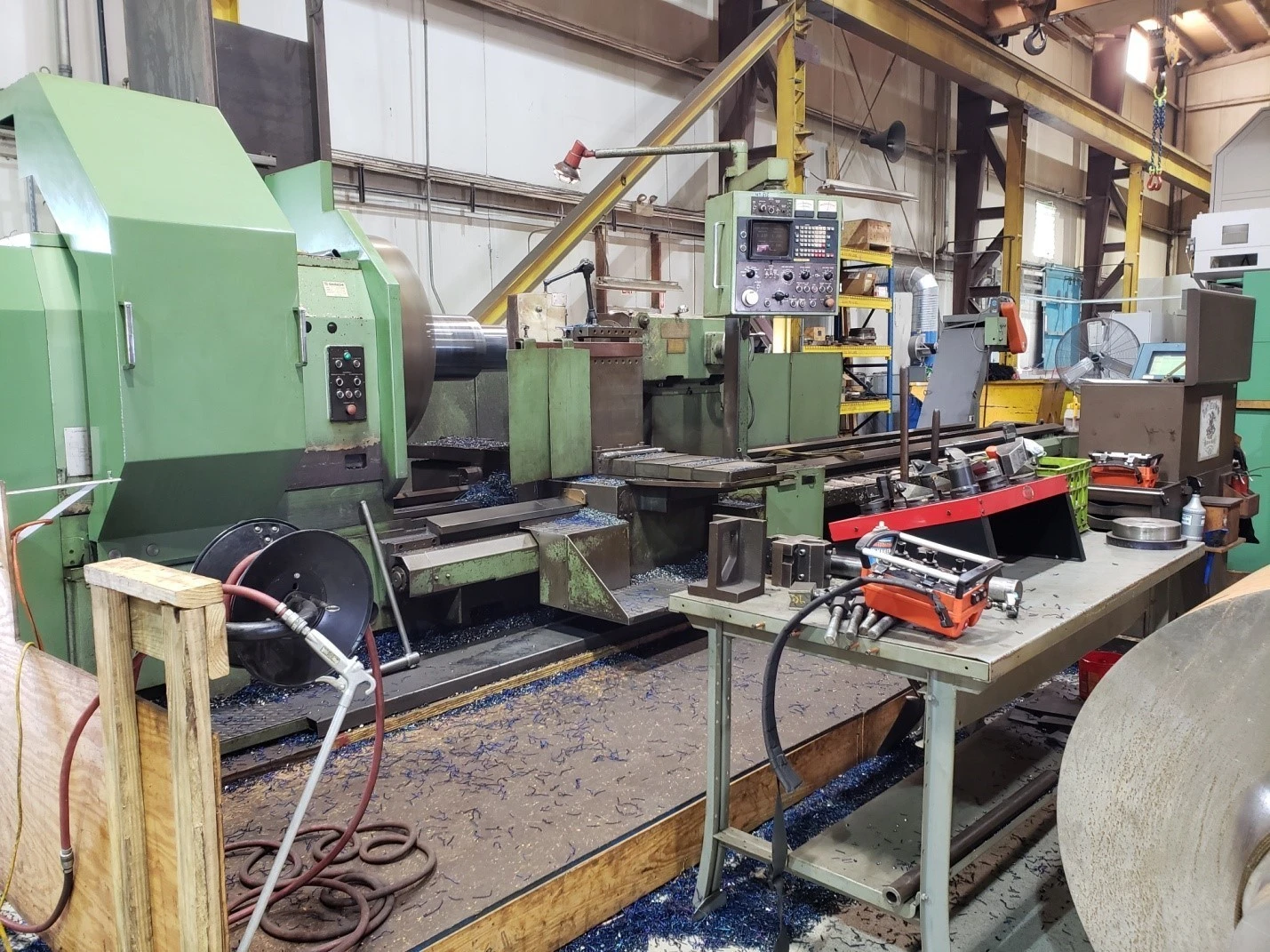

Dainichi Model M112 58" X 236" CNC Flat Bed Lathe
Swing Over Bed: 58.25"
Swing Over Carriage: 43.25"
Maximum Shaft Length with 4-Jaw Chuck: 236"
Maximum Shaft Weight Between Centers: 22,000 Lbs.
Maximum Shaft Weight with Steady Added: 30,000 Lbs.
Maximum RPM: 500
Spindle Motor: 50 HP
Equipped with:
Fanuc CNC Controls
Riser Blocks added under headstock and tailstock for added swing.
