23.5" X 59" Electro-magnetic chuck, 4" Wide wheel, 20 HP, Incremental down-feed.
| Table-W | 23" | 584.2 mm |
| Table-L | 59" | 1,498.6 mm |
| Horz/Vert | Horz | Horz |
| size | 23" X 59" | 23" X 59" |

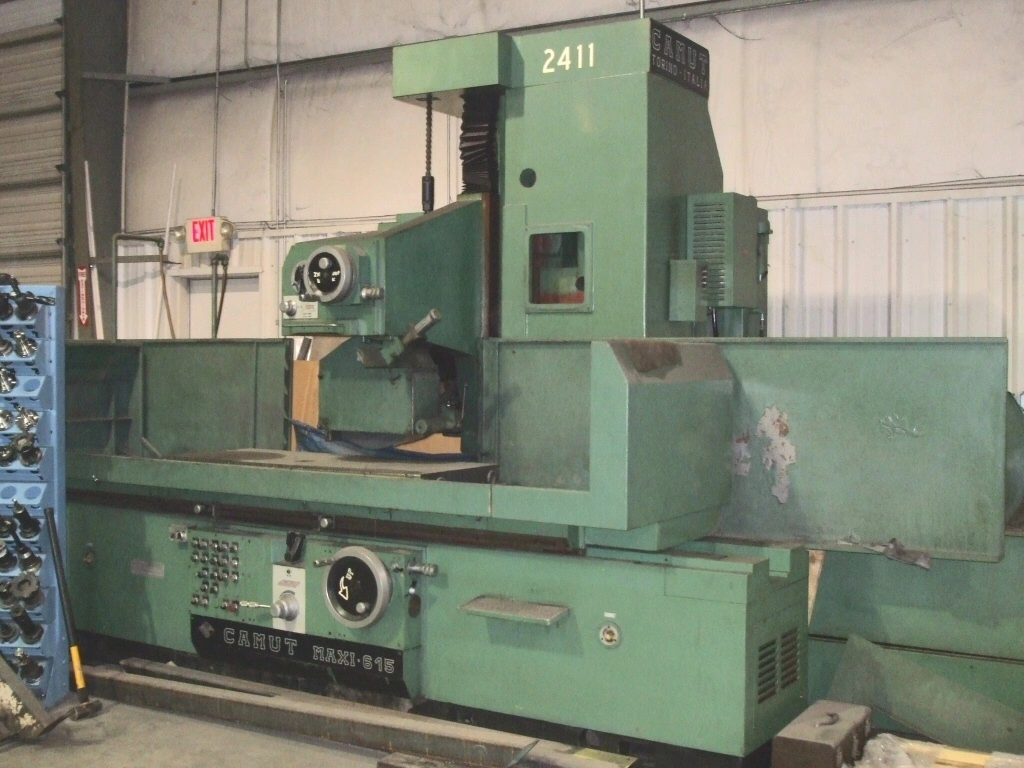

Camut Model Maxi-615 Automatic Hydraulic Surface Grinder
Area of magnetic chuck: 23.5" X 59"
Longitudinal travel of table: 61.5"
Table traverse: Hydraulic - infinitely variable
Wheel-head cross travel: Hydraulic - infinitely variable
Grinding wheel size: 18" Diameter X 4" Width
Grinding wheel drive motor: 20 HP 960 RPM AC
Equipped with:
23.5" X 59" Electro-magnetic Chuck with Rectifier and Neutrofier
Automatice Incremental Downfeed
Power vertical Rapid Traverse to the Wheel-Head
Over-the-wheel Dresser
Coolant System
