Aaron Process 300 Gallon Sigma Blade Mixer Extruder. 450 Gallon Total Capacity.
Overview
Description

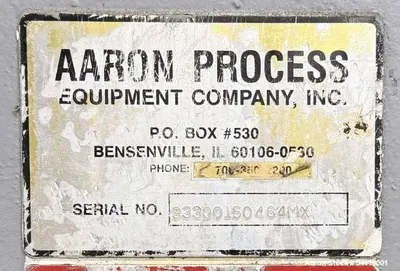

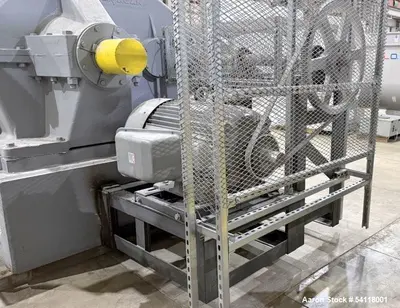

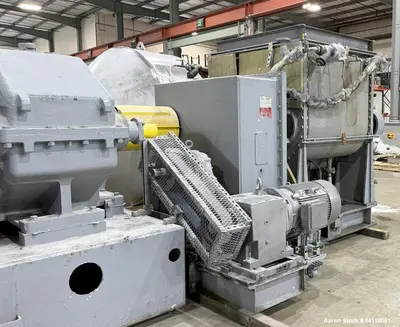

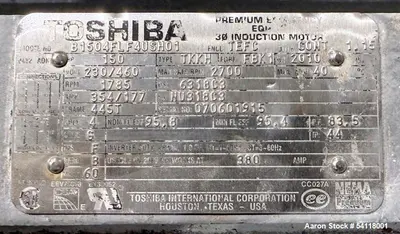

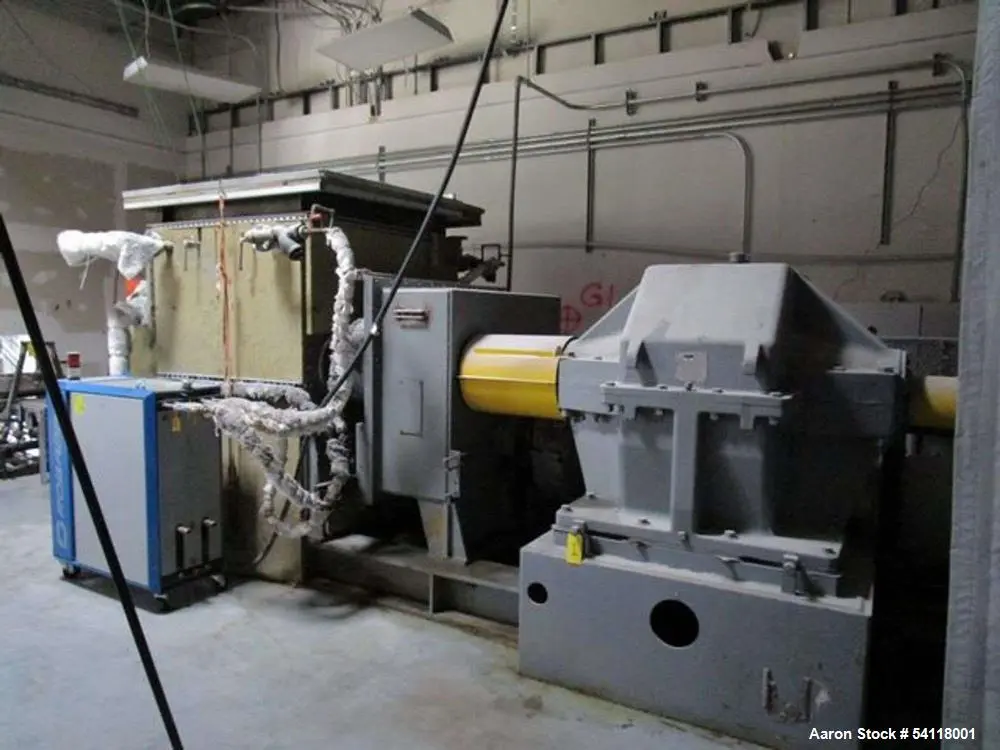

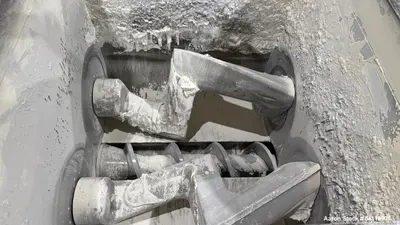

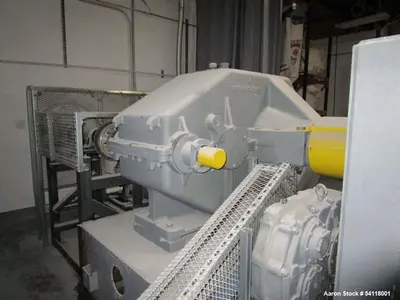

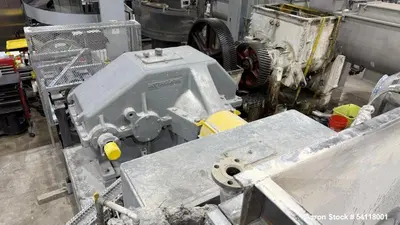

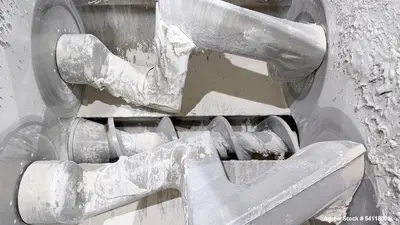

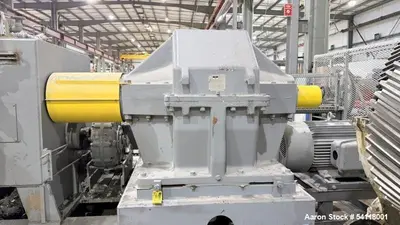

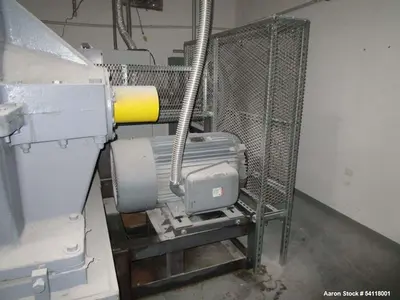

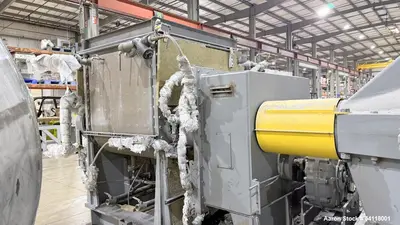

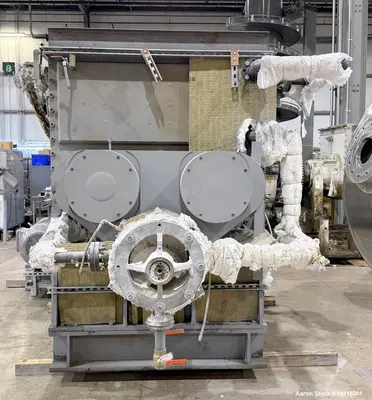

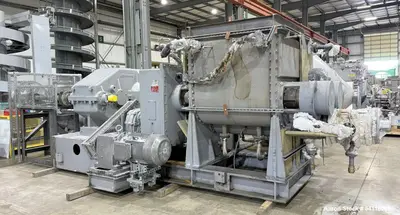

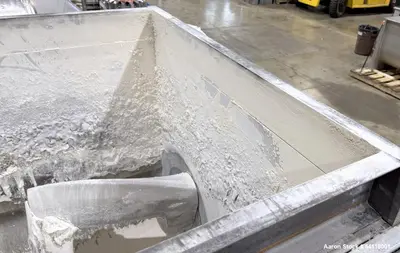

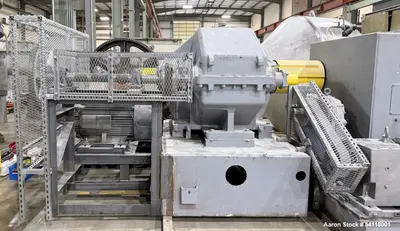

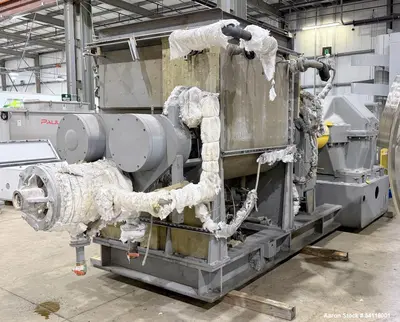

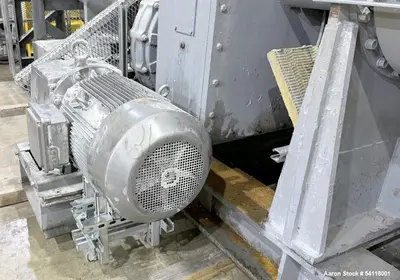

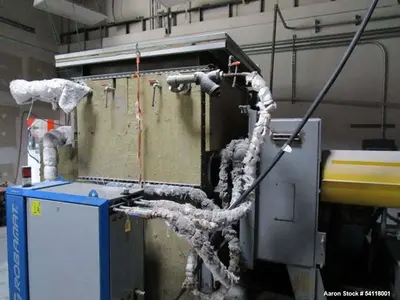

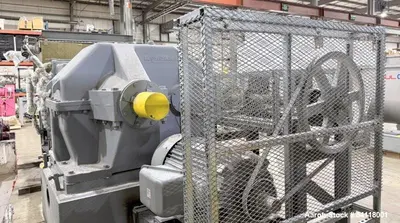

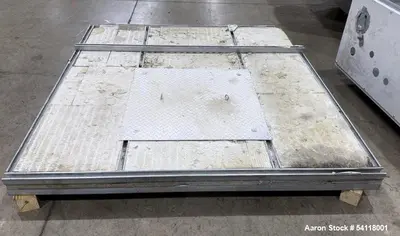

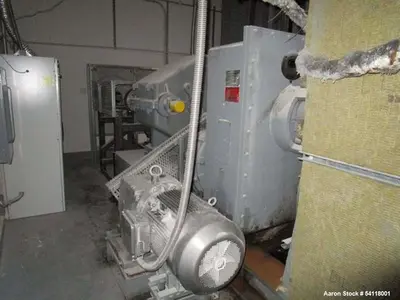

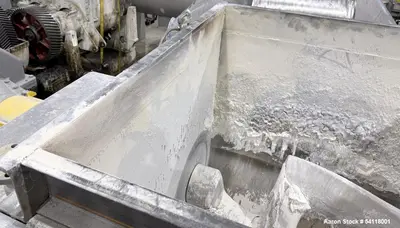

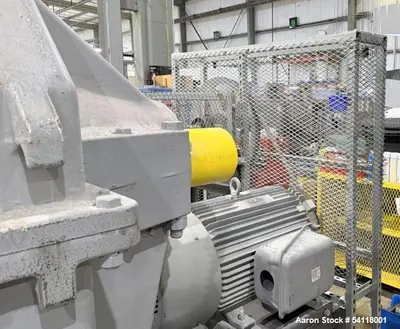

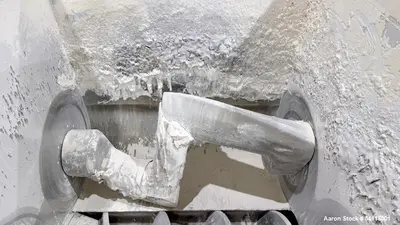

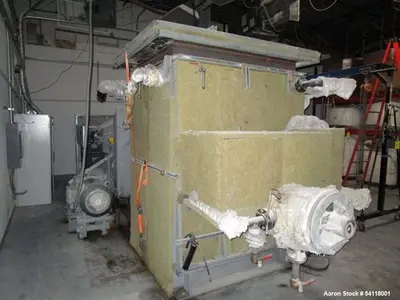

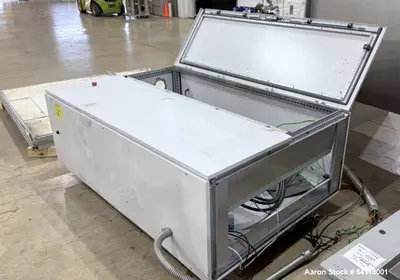

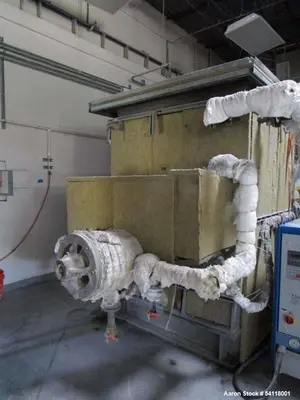

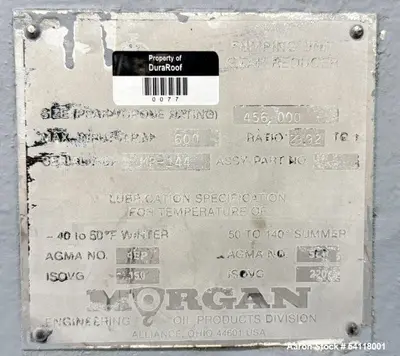

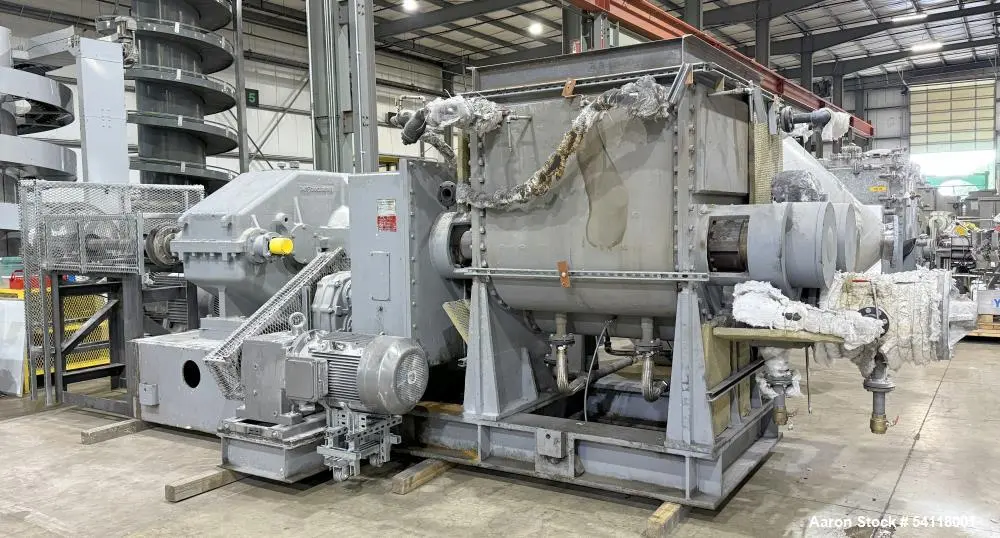

Used Aaron Process 300 Gallon Sigma Blade Mixer Extruder. 450 Gallon Total Capacity. Carbon Steel Construction. Serial Number 93300150464MX. Tangential Sigma Blades. Bowl is approximately, 54" front to back and 50" left to right. Insulated Cover. Bowl, End Plates and Barrel are Jacketed for Hot Oil at 450 Deg. F. Split Packing Glands. 24" Long Barrel Extension for Discharge Screw. Main Motor is 150 HP, 230/460 Volt, 3/60, Belt Driven and thru 2 Gearboxes. Discharge Screw is 75 HP, 460 Volt, 3/60, Belt Driven and thru Torque Arm Reducer. Includes Drive Panel for Blades and Screw and Remote Panel. Mixer is mounted on a Carbon Steel Base that measures approximately 273" Long x 108" Wide x 96" Tall. Panel is approximately 72" x 48" x 24". Remote Panel 25" x 31" x 13". Top Insulated Cover is approximately, 76" x 72". Built in 1994.
Specifications
Used Equipment Facts About This Machine
Manufacturer Info
Manufacturer: Aaron
Model: Mixtruder
Capacity: 300 Gallon Working Capacity
Condition: Used
Product Description
This used Aaron Mixtruder offers a 300-gallon working capacity with tangential sigma blades for heavy-duty mixing and kneading of high-viscosity materials. It features a 13" diameter discharge screw powered by a 75 HP motor for efficient product removal. The mixing chamber is driven by a 100 HP, 3/60/230/460V, 900 RPM motor, paired with a Fincor Model 316Om control system and an Olson isolation transformer for stable operation.
The 48" x 48" x 48" mix chamber is designed for robust industrial performance, and the system includes all related control panels, making it ready for integration into demanding processing lines. Ideal for applications in plastics, rubber, adhesives, food products, and other viscous material processing.
Specifications
Type: Mixtruder with Sigma Blades
Capacity: 300 Gallon working capacity
Blade Type: Tangential Sigma Blades
Discharge Screw: 13" diameter, 75 HP motor driven
Main Drive Motor: 100 HP, 3-phase, 60 Hz, 230/460 V, 900 RPM
Controls: Fincor Model 316Om Control
Transformer: Olson isolation transformer
Mix Chamber Dimensions: 48" L x 48" W x 48" H
Included: All related control panels
Condition: Used
Applications
Rubber compounding
Plastic resin mixing and extrusion
Adhesive blending
Sealant production
Food processing (high-viscosity dough, confectionery)
Pharmaceutical paste mixing
Ceramic material preparation
Chemical batch processing
Paints and coatings mixing
Composite material processing
Products This Would Be Used For
Plastics pellets
Rubber sheets and compounds
Adhesives and sealants
Thick pastes and doughs
Industrial coatings
Chemical reaction batches
Ceramic extrusion compounds
Composite feedstocks
Food extrusions
Specialty chemical blends
