3 Axis, 50 Taper, One Degree, Coolant Through Spindle, 8000 RPM, Fanuc 18iMB CNC
| size | 19.7" X 19.7" | 19.7" X 19.7" |
| X | 30" | 762 mm |
| Y | 26" | 660.4 mm |
| Z | 26" | 660.4 mm |
| RPM | 8,000 RPM | 8,000 RPM |
| Taper | 50 | 50 |
| Pallet-W | 19" | 482.6 mm |
| Pallet-L | 19" | 482.6 mm |
| # Axis | 3 | 3 |

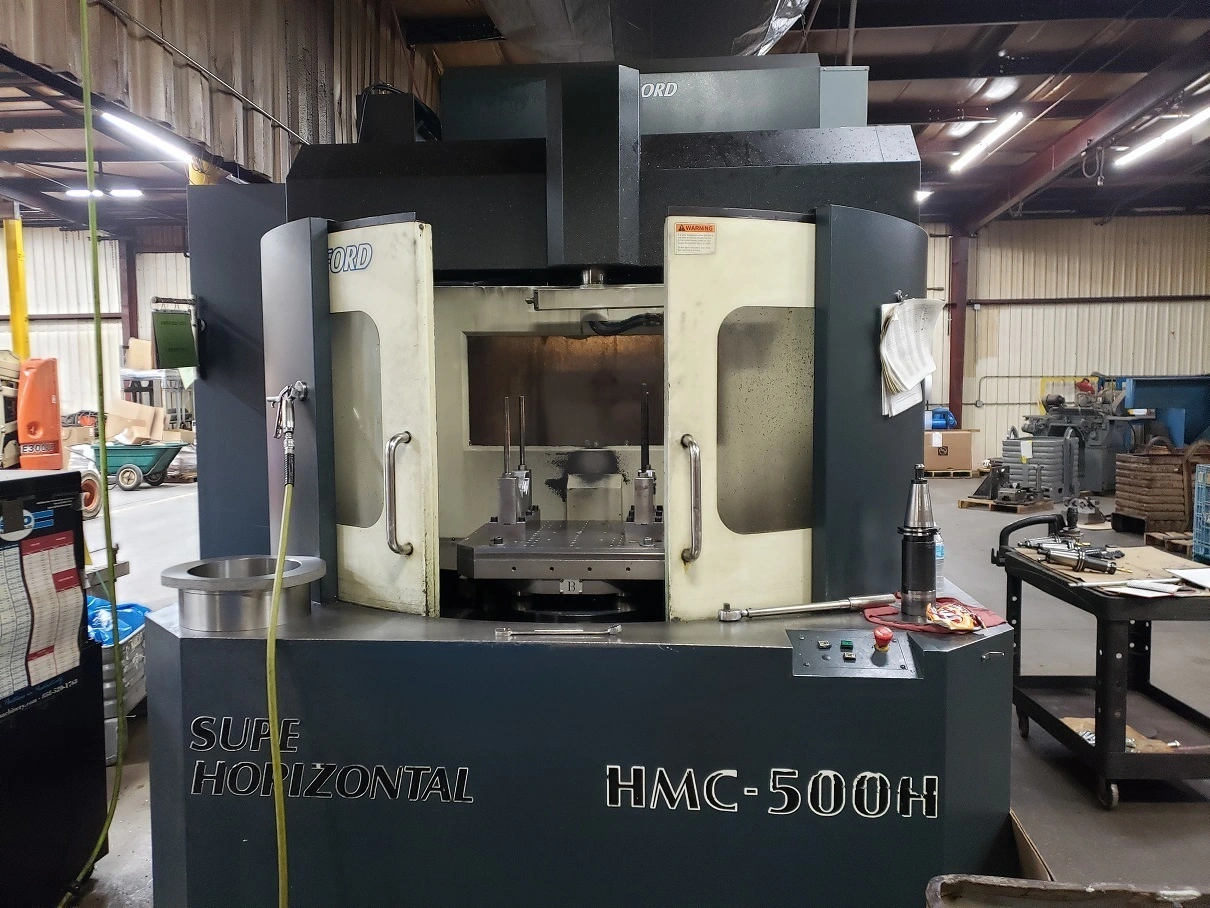

19.7" X 19.7" Johnford Model HMC-500H 3 Axis Horizontal Machining Center
Pallet area (2-pallets): 18.7" X 19.7"
X Axis Travel: 30"
Y Axis Travel: 26"
Z Axis Travel: 26"
Spindle Speeds: 8000 RPM
Taper: 50 CAT
Table Index: 1 Degree
Tool Changer: 40 ATC
Main Motor Drive: 30 HP
3 Axis, 50 Taper, One Degree, Coolant Through Spindle, Fanuc 18iMB
