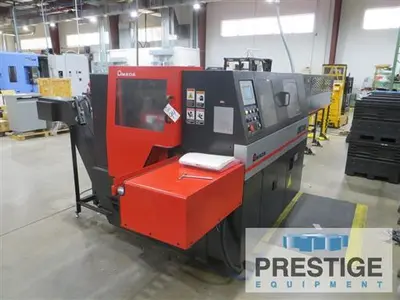

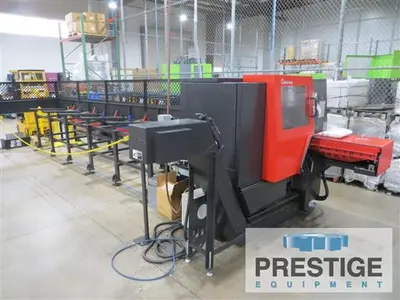

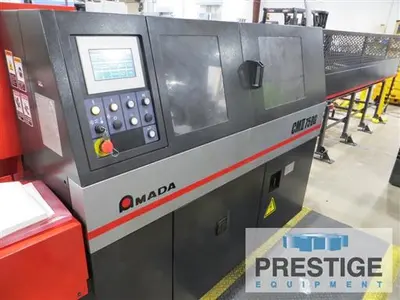

USED 2018 AMADA CMII75DG

CUTTING CAPACITY:
Capacity Rounds: 0.394" x 3"
Capacity Rectangle: 2.55" x 2.55"

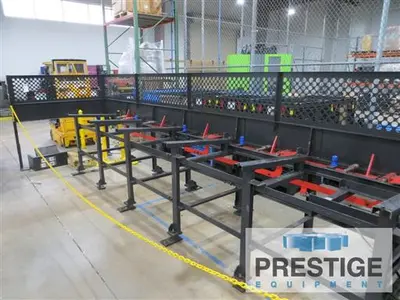

Maximum Stock Table Loading Capacity: 19.6' x 3" x 10 Bars

SAW BLADE:
Blade, OD x Bore x T: 11.2" x 1.57" x 0.08"
Number of Teeth: 60,80,120 or 140 (4 Types)
Cutting Speeds, Range: 50-180 RPM
Head Feeds, Range Infinitely Variable: 0-180 IPM by Inverter

MATERIAL INDEX:
Stroke Length: 28.1"
Index Length Range: 0.394" - 393.7" Multiple Indexing
End Trimming Length: 0.394" - 3.9"
Remnant Length: 1.97" Plus Length of Parts

MOTORS:
Saw Blade Motor: 10 HP
Saw Head Feed Motor: 2.75 HP Servo Motor
Hydraulic Pump Motor: 2 HP
Cut-to-Length Feed Motor: 1 HP Servo Motor
Machine Dimensions: 83" x 65" x 64" High
Machine Weight: 4,409 Lbs.

Equipped With:

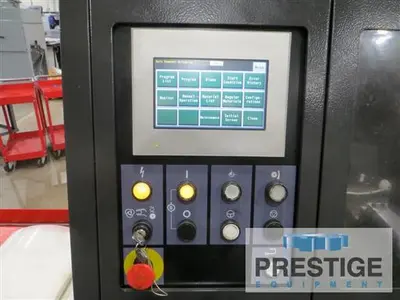

CNC Controlled

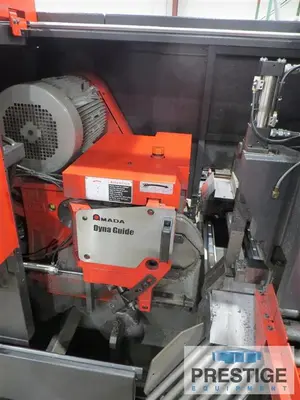

Dyna Guide Cutting Head
Shuttle Vise Material Indexer
Servo Motor, Ball Screw, Stock Grip Feed
Chip Conveyor
Coolant System

Features:
CNC Controlled
Dyna Guide
Incline Table
Auto Trim Cut
Chip Conveyor
Sorting Device
