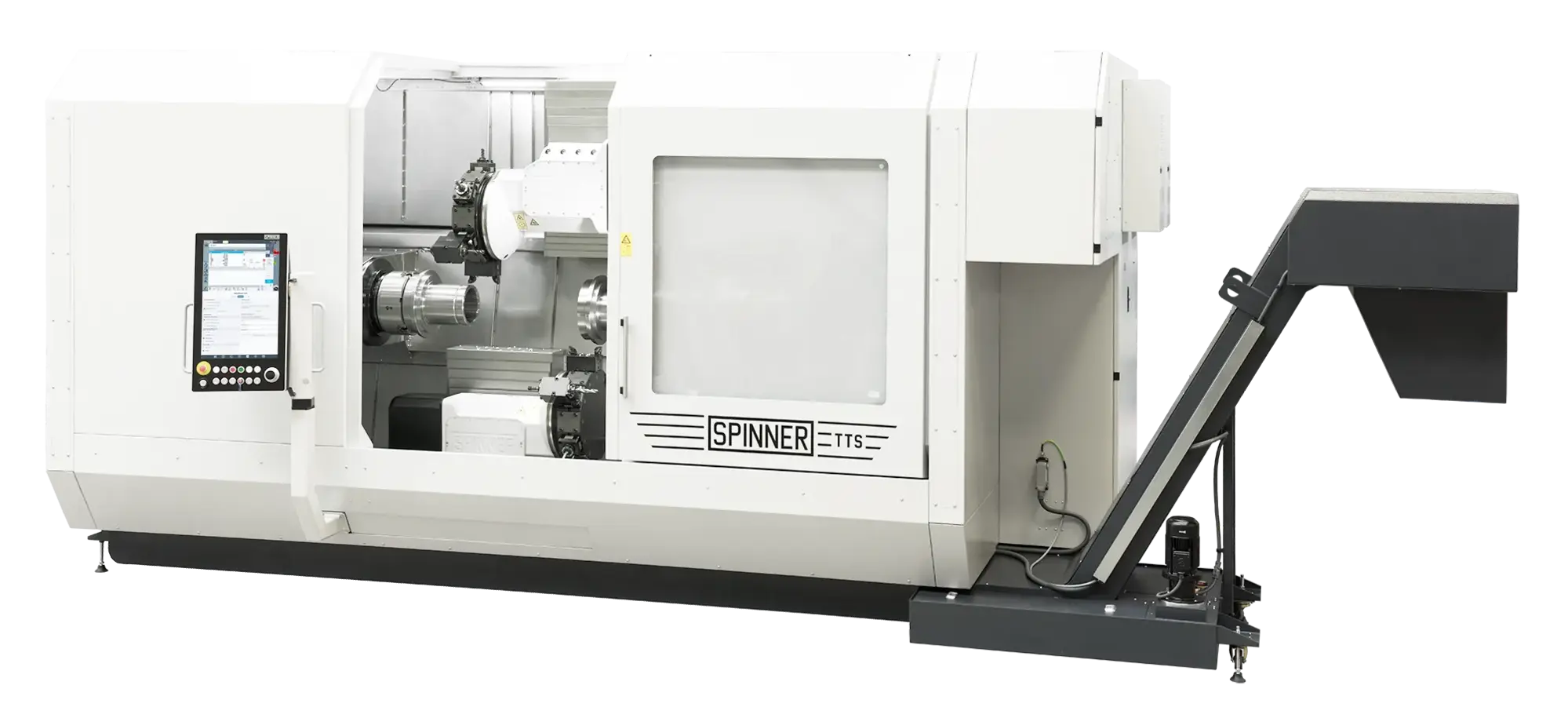

The TTS-85/125 is a multi-turret high-performance turning center for simultaneous machining for medium and high volume turning of large long workpieces with up to four independent high-speed servo driven turrets made by Spinner. All turrets operate independently on the main or counter-spindle or can work on one spindle at the same time if desired.
Several configurations are available with optional steady rest to best meet your specific part applications. A long bed option is also available bringing 82.7″ of work area between spindles. The TTS-85/125 machines typical large energy and oil parts easily and fast.
| Swing | 900 mm | 35.433" |
| Bar Capacity | 85 mm | 3.3465" |
| Power | 80 hp | 59.7 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Live Tooling | Yes | Yes |
| Control | CNC (Fanuk 31i) | CNC (Fanuk 31i) |
| Dimensions | 6380 x 2480 x 2560mm | 6380 x 2480 x 2560mm |
| Weight | 7900 Kg | 7900 Kg |
