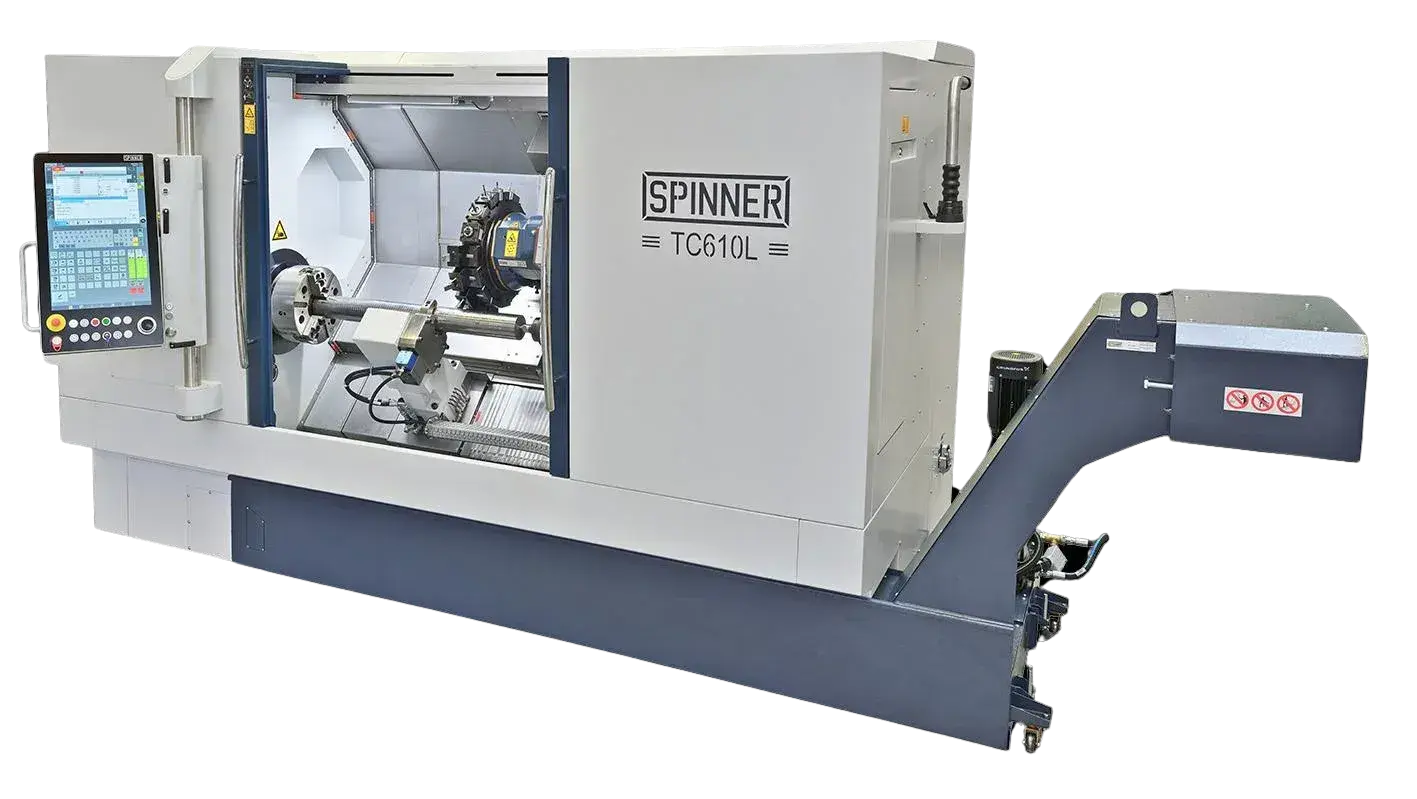

NEW SPINNER TC 610L

Utah, United States
1,225Listings|9Followers
Overview
CNC Lathes

Large CNC lathe for long work requiring a steady rest. If you are looking for a workhorse long bed CNC lathe with Y-axis and live tooling the TC610L is a great choice.

Modern and dynamic built-in motor spindle with water cooling
Dynamic servo-turret with adjustable tool change speed via feed override
Optional Y-axis and live tooling provides flexibility
Programmable steady rest and tailstock

Specs
Swing
23.622"
600 mm
Machining Length
49.213"
1,250 mm
Chuck Size
9.8425"
250 mm
Bar Capacity
3.3465"
85 mm
Power
80.5 hp
60 kW
Max RPM
3,400 RPM
3,400 RPM
Turning Dia
15.748"
400 mm
Live Tooling
Yes
Yes
Control
CNC (Fanuc 32iTB)
CNC (Fanuc 32iTB)
Dimensions
3400 x 1950 x 2100 mm
3400 x 1950 x 2100 mm
Weight
6500 Kg
6500 Kg
