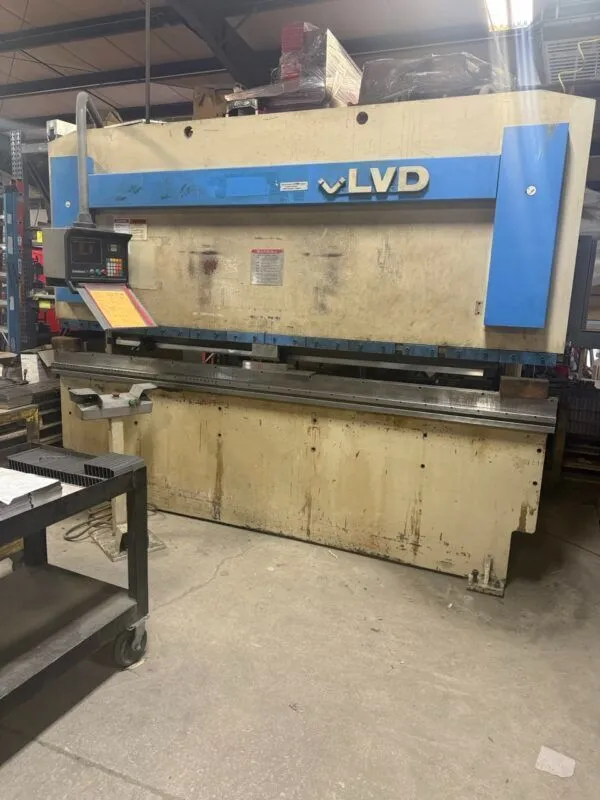

LVD 150-JS-10 press brake, 1995 model with 150-ton capacity. 10' overall length and 8' between housings. Features a 5.12" stroke and 2-axis control. Ideal for precision metal bending tasks. Used condition.
| Tonnage | 150 T | 136.078 t |
| Overall Length | 10' | 3 m |
| Between Housings | 8.5' | 2.6 m |
| Stroke | 7.9" | 200.66 mm |
| # Axis | 2 | 2 |
| Dimensions | 135in X 68in X 112in | 135in X 68in X 112in |
| Weight | 22,000 lbs | 22,000 lbs |
Tonnage: 150 Tons
Overall Length: 10ft
Distance Between Housings: 8’6″
Stroke: 7.9″
Open Height: 15.75″
Throat Depth: 15.75″
Rapid Approach: 368 IPM
Press Speed: 2 – 59 IPM
Return Speed: 326 IPM
Approx Weight: 22,000 Lbs
Approx Dimensions: 135″ X 68″ X 112″ H
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
