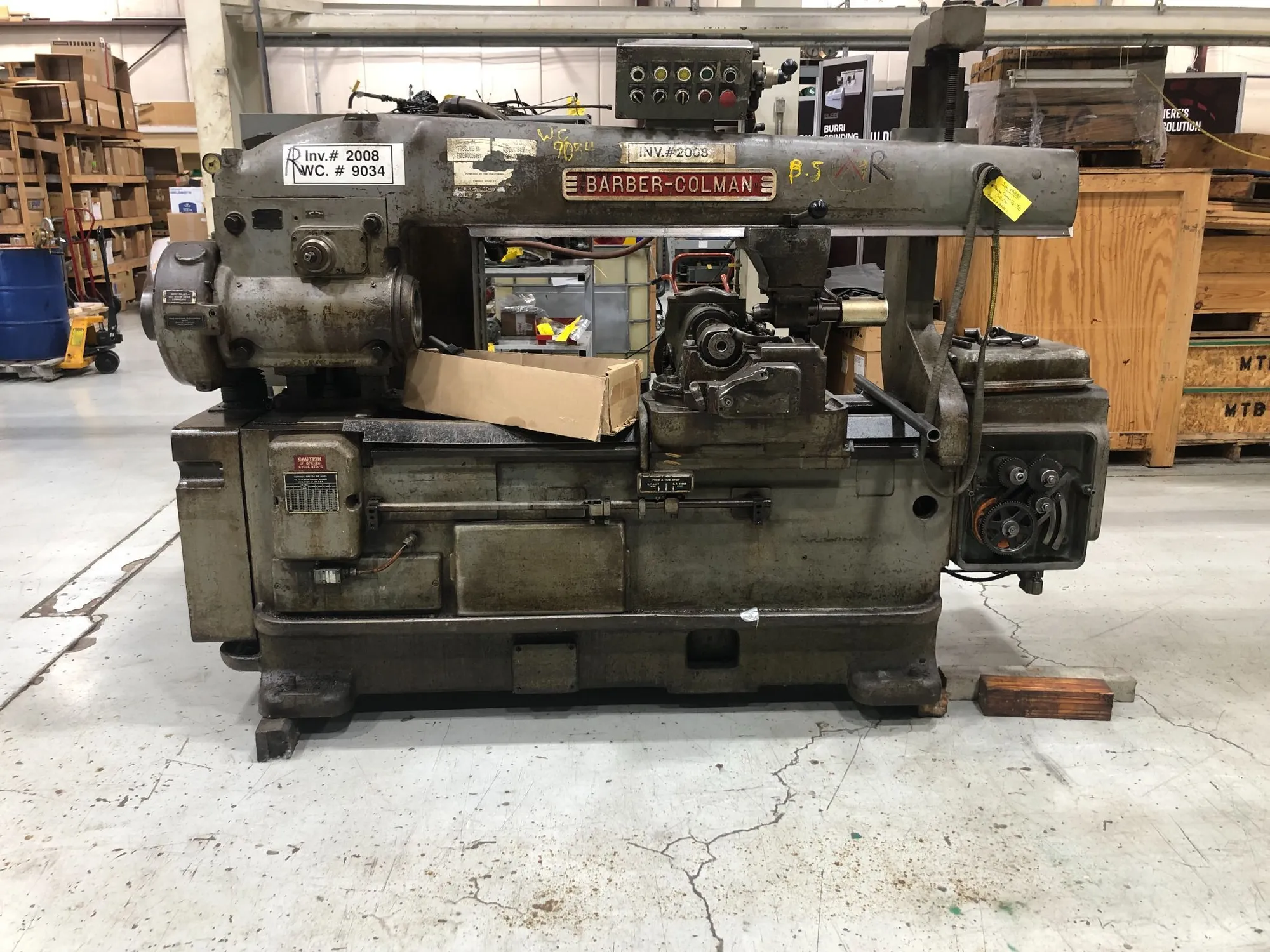

USED 1970 BARBER COLMAN 16-36
Overview
IN STOCK:
This Barber Colman long bed mechanical gear hobbing machine is a common machine but noteworthy due to its legendary capacity. It is suitable for making a variety of spline shafts or larger gears - with gears or splines at either end or in the center.
Features:
Hob arbor assortment.
Air operated tail center.
Automatic hob shift.
Single Start Index Worm (Standard Accuracy).
The aforementioned description and listing of specifications and accessory equipment is correct and accurate to the best of our knowledge. However, it should not be considered binding in any regard, as we reserve the right to change and/or alter same without prior notice. Consequently the buyer is responsible for confirming same, upon physical inspection and inventory of the machine(s) and all related accessory equipment.
Specs
Pitch rating(Ideal Conditions) 6 DP 4.233333 Mod
Maximum workpiece diameter 16.000 in 406.4 mm
Maximum facewidth 13.000 in 330.2 mm
Maximum radial center distance 9.500 in 241.3 mm
Minimum radial center distance 1.250 in 31.75 mm
Maximum axial travel 15.000 in 381 mm
Maximum distance table
face to tail center 36.000 in 915 mm
Maximum distance table
face to C/L of hob 40.000 in 1016 mm
Minimum distance table
face to C/L of hob 3.500 in 88.9 mm
Worktable diameter 7.250 in 184.15 mm
Workhead spindle bore 3.125 in 79.375 mm
Index worm gear diameter 12.700 in 322.58 mm
Worktable Starts 1 Threads
Maximum hob diameter 5.000 in 127 mm
Maximum hob length 5.000 in 127 mm
Maximum hob shift travel 3.500 in 88.9 mm
Equipped With
NO CNC - Relay Logic including timers & change gears.
Integral coolant tank, no conveyor.
Hob arbor assortment.
Assortment of change gears (Not a Complete Set!)
Two copies of the operations manuals.
Two copies of the maintenance documentation.
30 Day return warranty on the machine.
