USED 2022 COLOSIO PFO 400

CAPACITY:
Locking Force: 463 Ton
Max. Injection Force: 49 Ton
Ejection Force: 19 Ton
Min. Die Height: 9.84"
Max. Die Height: 29.52"
Moving Platen Stroke: 23.62"
Ejection Stroke: 5.11"
Platen Dimensions: 38.5" x 38.5"
Distance Between Tie-Bars: 24.40"
Tie-Bars Diameter: 4.92"
Max. Shot Weight: 10.34 Lbs
Casting Cycles: 10
Approximate Machine Dimensions: 91" x 266" x 122"
Approximate Machine Weight: 44,600 Lbs

Equipped With:

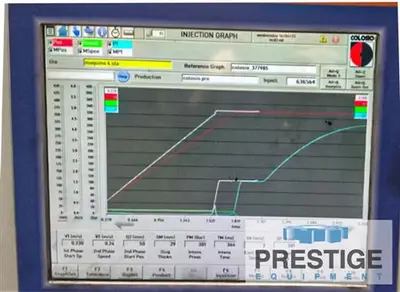

Colosio Full Control System
Integrated Colosio Rotofast Automatic Ladle
Relbo Rapid 75 Automatic Die Sprayer
