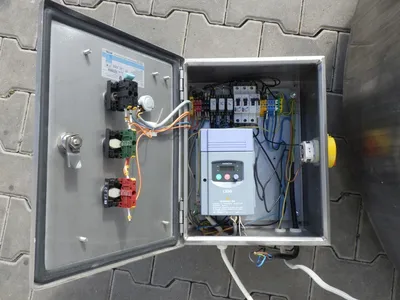

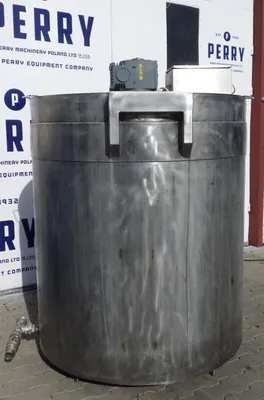

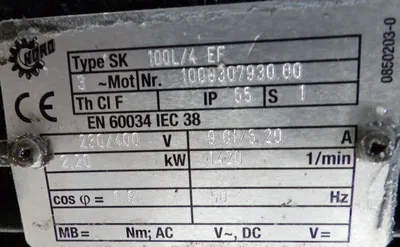

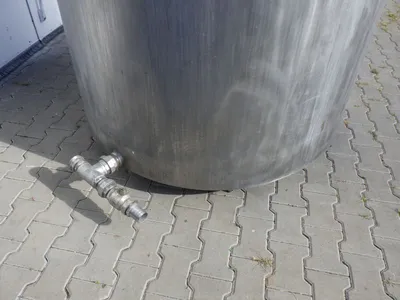

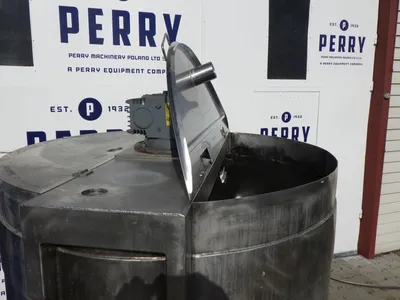

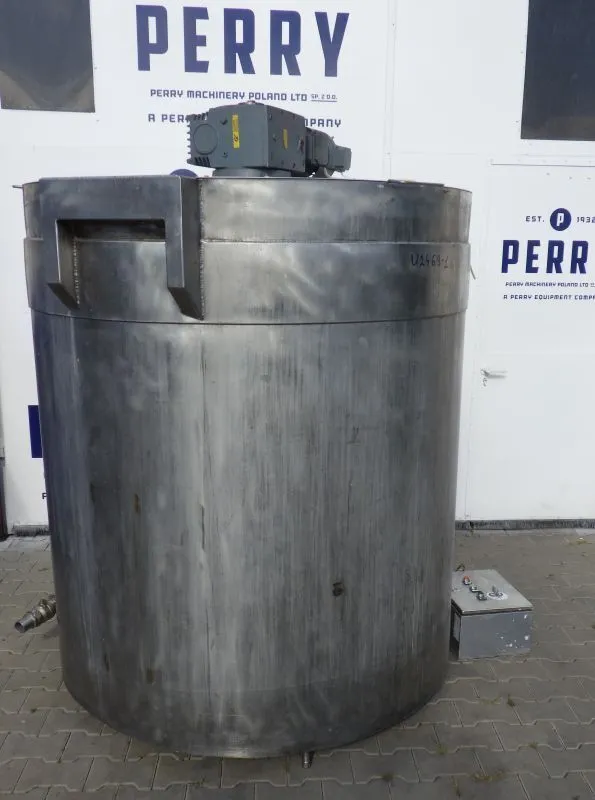

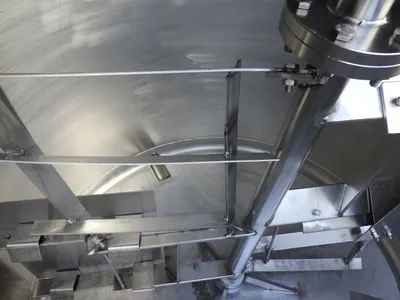

Used, vertical stainless steel mixing tank made by Obram-Dairy Sp. z o.o. (Poland) with total volume 2000 l. Tank has internal diameter 1400 mm x length of straight side of wall 1350 mm. Bottom flat, sloping towards the side wall discharge outlet. Tank has top mounted frame agitator driven by a Nord gearbox via an electric motor with power 2.2 kW, 1420 rpm, 230/400 V, 50 Hz. Agitator has a speed of up to 28 rpm and is supported at bottom. Tank has a local stainless steel electrical cabinet with frequency converter. Top of the tank open. At the both sides of agitator, there are manually tilted lids. Tank is mounted on 4 stainless steel legs. Last time used in chemical production.
| Capacity | 500 gal | 1,892.7 L |
| Diameter | 4.59' | 1,399 mm |
| Height | 4.43' | 1,350.3 mm |
| Type of stainless | AISI 304 | AISI 304 |
| Type Of Heads | Flat | Flat |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | Legs | Legs |
| Dimensions | 4.59ft x 4.43ft | 4.59ft x 4.43ft |
