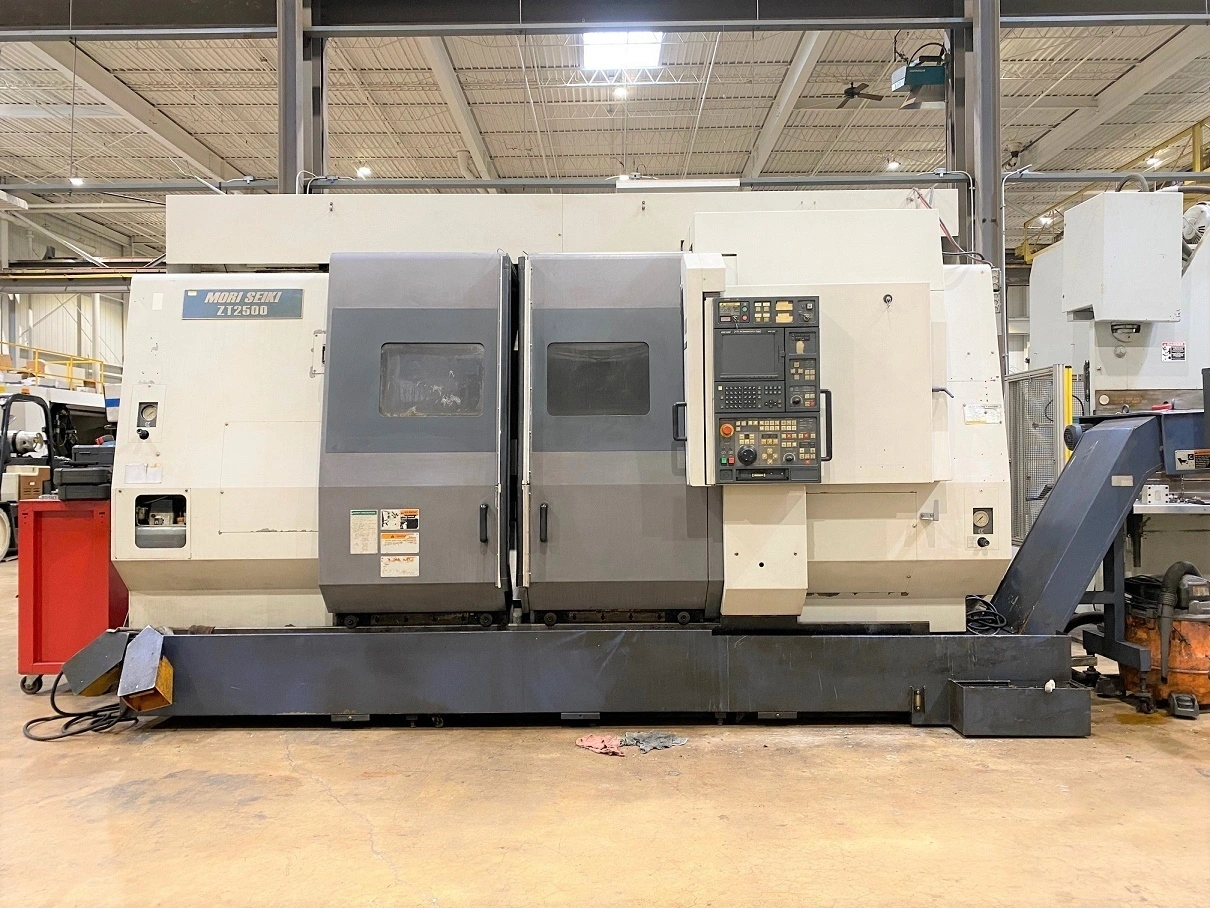

USED 2001 MORI SEIKI ZT-2500Y
Overview
Twin Spindle, Twin Turret, Live Tool, Y Axis Mori Fanuc MSG501
Specs
Mori Seiki Model ZT-2500Y 8-Axis CNC Lathe with Live Tool, Sub Spindle
Twin Turret
Specifications:
Maximum Turning Diameter: 14.9"
Maximum Distance Between Spindles: 51.2"
Maximum Turning Length: 14"
Maximum Bar Capacity: 2.8"
X1-Axis Travel: 11"
X2-Axis Travel: Lower Turret 7.9"
Z1-AXIS Travel: 37.8"
Z2-Axis Travel: Lower Turret 38.8"
Y-Axis Travel: +/- 2.9"
C-Axis Indexing: 0.001 Degree
Spindle Speeds: 4,000 Rpm
Spindle Nose (Both): A2-8
Hole Through Spindle: 3.5"
Number of Tool Positions: 12 Each Turret
Rotary Tool Speed Range: Up to 4,000 Rpm
X, Z, & B-Axes Rapid Traverse Rate: 945 Ipm
Y-Axis Rapid Traverse Rate: 472 Ipm
Approximate Machine Weight: 29,000 Lbs.
Equipped With
Twin Spindle Twin Turret
MSC 501 MAPPS Conversational Cnc Control
Tool Presetter
Chip Conveyor
Live Milling on all 12 Stations (both) ( Live Tooling on Lower Turret not Currently Functional )
Miscellaneous live tool holders ( approx 10 available )
Miscellaneous tool static holders
(2) Electric Foot Pedals
https://youtu.be/FSgVArjZkbI
Shipping Dims
Dimensions -
Length - 158"
Width - 106"
Height - 112" on 3.5" blocks
Chip conveyor -
Length- 204"
Width - 70"
Height - 55"
Chiller units (Quantity - 2) -
Length - 31"
Width - 20"
Height - 42"
Dust collector -
Length - 22.5"
Width - 17.5"
Height - 74 "
Skid of miscellaneous parts -
Length - 40"
Width - 33"
Height - 16"
Skid of Guarding -
Length - 36"
Width - 36"
Height - 41.5"
