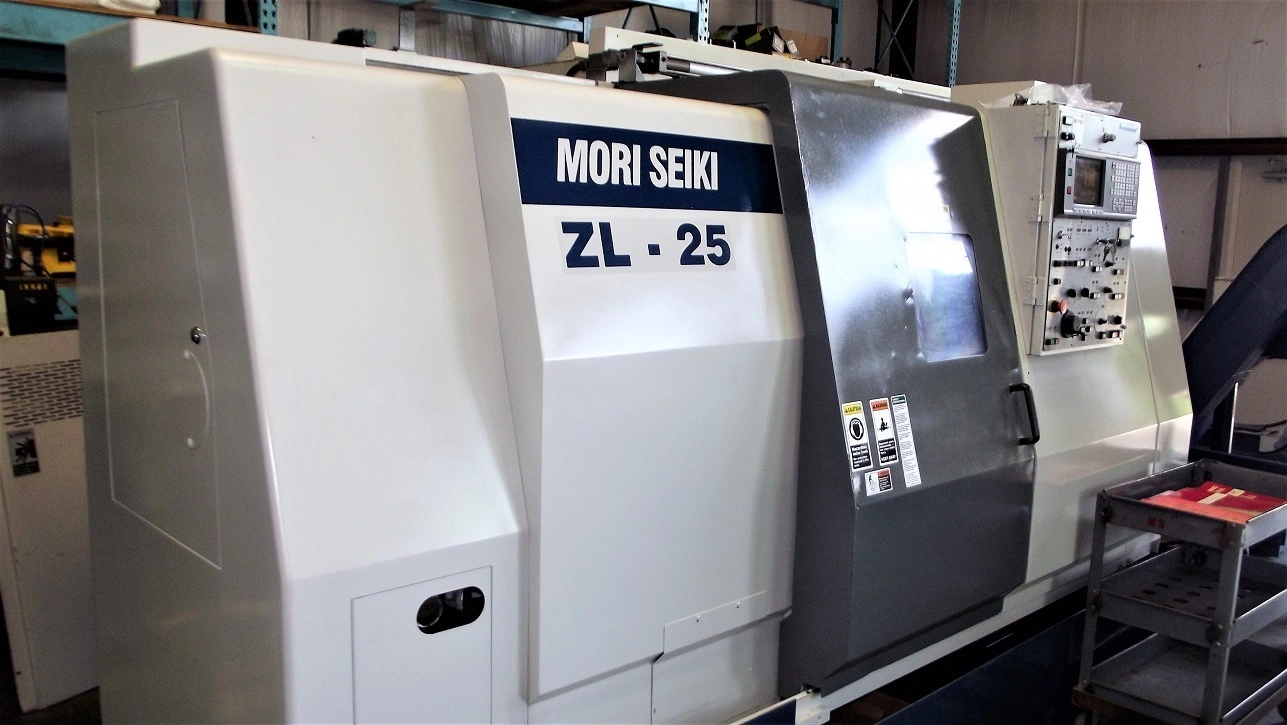

USED 1992 MORI SEIKI ZL25B/500

4 Axis, Twin Turret, Mori Fanuc MFD6 CNC Control

Mori Seiki Model ZL-25B/500 4 Axis CNC Lathe
Swing over Bed: 20.5"
Swing over Cross Slide: 13.8"
Distance Between Centers: 25.4"
Max. Machining Diameter: 10.2"
Max. Machining Length: 21.7"
X-Axis: 6.3"
Z-Axis: 25.4"
Spindle speed: 42-4200 RPM
Spindle nose: A-6
Hole thru spindle: 2.4"
Spindle I.D.: 4.3"
Shank height for square tool: 1"
Shank diameter for boring bar Max." 2"
Rapid feed rate (Z-Axis): 590.6"
Tailstock stroke: 23.2"
Tailstock quill taper: MT3
Tailstock quill stroke: 3.1"
Electric power supply: 40 KVA
Machine Weight (approx): 15,400 LBS
Equipped with:
Mori Fanuc MFD4 CNC controls
Twin Turrets
Tailstock
Chip Conveyor
Splash guards
10" 3 Jaw Chuck
