3 Axis, 8' x 20", Incremental Downfeed
| Table-W | 8" | 203.2 mm |
| Table-L | 20" | 508 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 1" | 25.4 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| size | 8 x 20 | 8 x 20 |

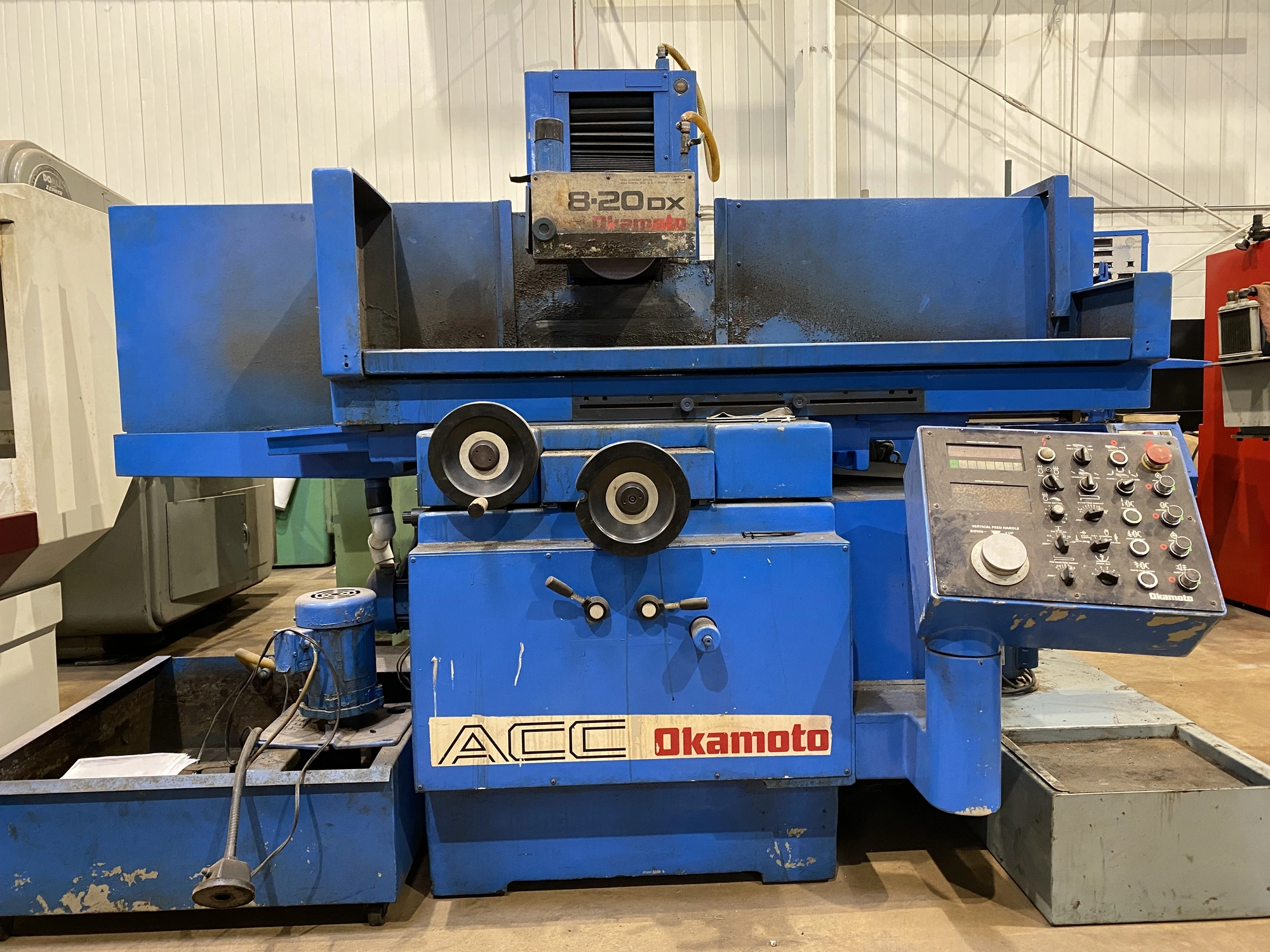

Okamoto ACC-8.20DX Hydraulic Surface Grinder (1993)
Nominal Grinding Capacity ................... 8 X 20
Maximum Height Under 8 in Wheel ............... 15.6
Table Speed, Infinitely Variable ............ Up To 82 Fpm
Max. Longitudinal Table Movement, Manual .... 24
Auto Cross Feed Increment ................... 0.002 To 0.40
Auto Coninous Crossfeed ..................... 4 To 40 Fpm
Crossfeed, Manual, Hand Feed Per Rev. ....... 0.25
Grad. Of Handwheel ....... 0.0004
Max. Crossfeed, Manual ...................... 9
Auto Incremental Downfeed Increments ........ 0.00005 To .0015
Power Rapid Wheel Positioning Rate .......... 16 Ipm
Spindle Motor ............................... 2 H.P.
Wheel Size .................................. 8 Dia. X 1 W X 1.25
DX" Series Programmable Electronic Auto Incremental Downfeed
