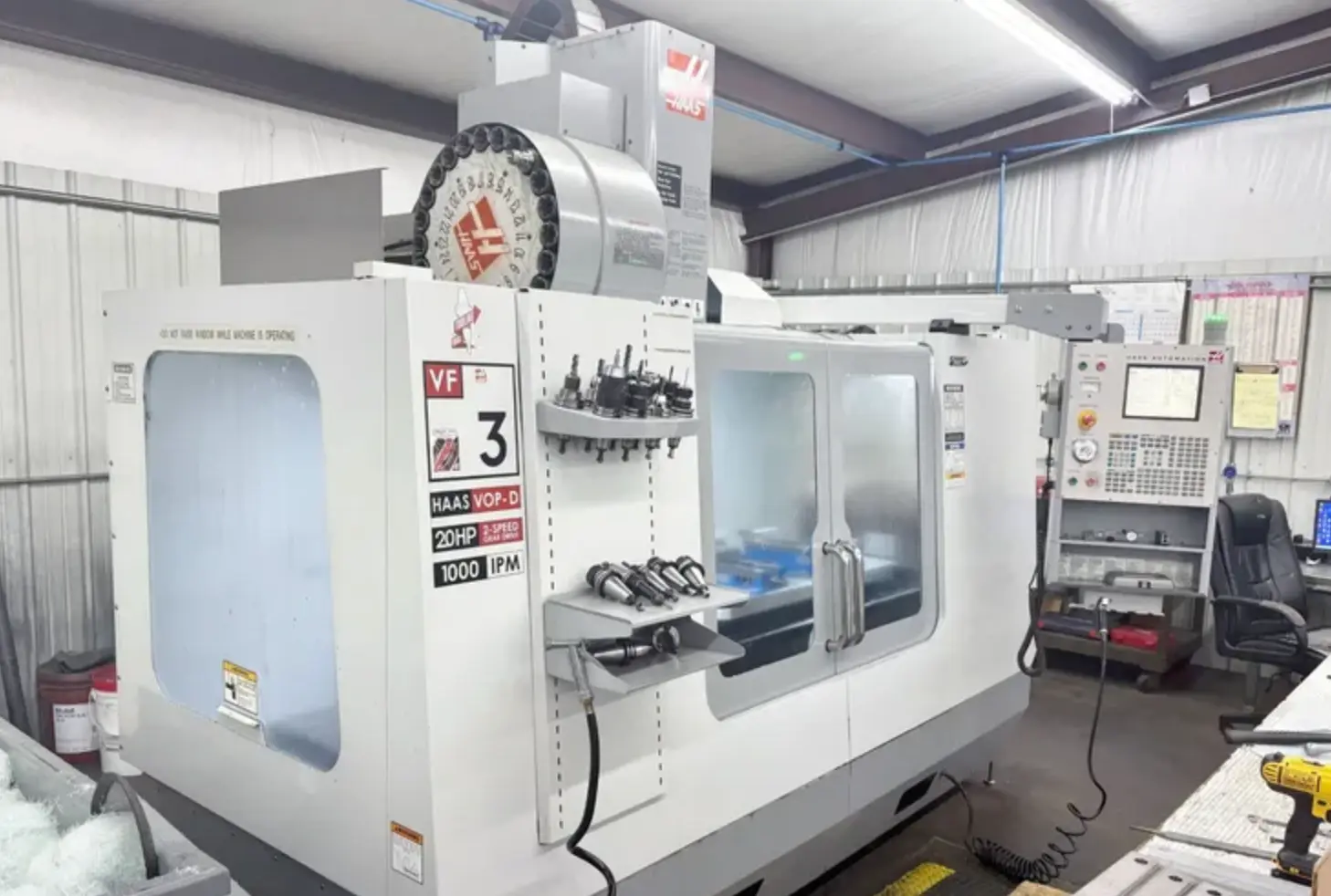

Used Vertical Machining Center, 40x20x25" travel, 20 hp, 7,500 RPM, 24 ATC, CAT-40 taper. Features include 2-speed gearbox, 4th axis drive, side-mount tool changer, programmable coolant, chip auger, macros. Spindle time: 17,155 hrs.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
2-SPEED GEARBOX
4TH AXIS DRIVE & WIRING
SIDE-MOUNT TOOL CHANGER (24 ATC)
PROGRAMMABLE COOLANT
REMOTE JOG HANDLE
CHIP AUGER
COORDINATE ROTATION & SCALING
RIGID TAPPING
MACROS
1000 IPM RAPIDS
AS OF AUGUST 2025, SPINDLE TIME – 17,155 HOURS
MACHINE CUT PRIMARILY ALUMINUM, PLASTIC & STAINLESS
