50 TON AMADA “TP45EX” OPEN BACK GAP FRAME PRESS - 50 to 100 spm variable speed - 2.75" stroke - 14.5" shut height - overload protection - Fujishoko "NC600" NC roll feeder
| Tonnage | 45 t | 49.604 T |
| Stroke | 2.75" | 69.85 mm |
| Shut Height | 14.5" | 368.3 mm |
| Power | 5 hp | 3.7 kW |
| Bed W | 17.72" | 450.09 mm |
| Bed L | 31.5" | 800.1 mm |
| SPM | 100 strokes/min. | 100 strokes/min. |
| Dimensions | 46 x 60 x 90.5 | 46 x 60 x 90.5 |
| Weight | 10000 | 10000 |

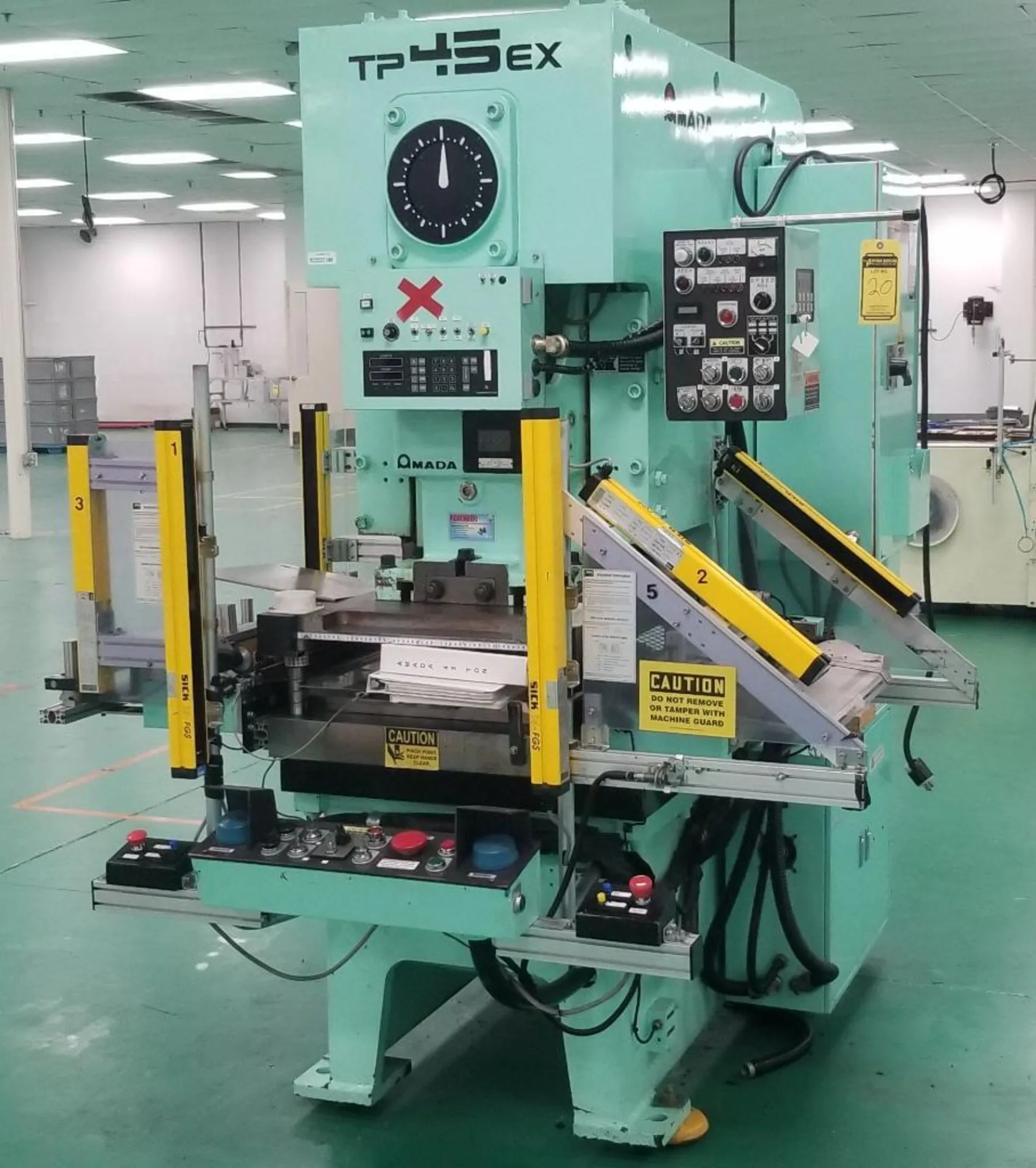

50 TON AMADA “TP45EX” OPEN BACK GAP FRAME PRESS
Serial No. 72009104, Model TP45EX
EQUIPPED WITH:
Fujishoko "NC-600" NC Roll Feed (90522)
Enhanced User Interface Controls
Sick Light Cutains
Motorized Slide Adjustment
Overload Protection
CATALOG SPECIFICATIONS:
Tonnage Capacity, Short Tons 50 TONS
Tonnage Capacity, Metric 45 TONS
Stroke Length 2.75” 70MM
Slide Adjustment 2.36” 60MM
Shut Height 14.5” 370MM
Die Height 10" 255MM
Slide Area, L-R x F-B 15.75” x 13.78”
Slide Area, L-R x F-B 400MM x 350MM
Bolster Area, L-R x F-B 31.5” x 17.7”
Bolster Area, L-R x F-B 800MM x 450MM
Bolster Thickness 4.5” 115MM
Gap Length 9.4" 240MM
Opening in Back 19.3" 490MM
Strokes Per Minute, Variable 50 to 100 SPM
Motor Horsepower 5 HP 3.7 KW
Overall Dimensions, W x D 46" x 60"
Overall Height 90.5" 2295MM
Weight Approximately 10000 LBS 4550KGS
F.O.B. OUR WAREHOUSE
