Specifications:
Table travel (X-Axis) 36”
Saddle Travel (Y-Axis) 12”
Quill Travel 5”
Knee Travel (Z-Axis) 16”
Ram Travel 12”
Throat Distance (Min.) 18.75”
Throat Distance (Max.) 6.75”
Standard 48” x 9”
T Slot center distance 3 @ 2.5” centers
T-Slot Size 0.625”
Cast Iron: 3/4"
Steel: 5/8"
Face Mill: 3"
End Mill: 3/4"
Spindle Taper: R8 Or Nt-30
Quill Diameter: 3-3/8"
Collet Capacity: 1/8" To 5/8"
Varaiable Spindle Speed: 60 To 4200 Rpm
Spindle Feeds: 0015, .0003, .0006 Inch/Rev
Spindle To Column: 5" To 17-3/8"
Motor: 3 Hp
Bridgeport Base
Table Size 9" x 42" or 9" x 49"
X-Axis Travel ~30"
Y-Axis Travel ~12"
Knee Travel (Z-axis) ~16"
Quill Travel ~5"
Spindle Taper R8
Manual Feeds X, Y, and Z via hand cranks
Power Feed (optional) May be installed on X-axis (varies by configuration)
Construction Cast iron for vibration dampening and rigidity

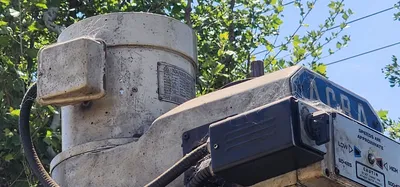

Acra Milling Head Specifications
Spindle Motor 2 HP, 3-phase, 220/440V
Spindle Speed Range 60–4,500 RPM (variable speed)
Spindle Taper R8
Quill Feed 3-speed power downfeed (0.0015, 0.003, 0.006 in/rev)
Head Tilt ±90° left/right, ±45° front/back
Construction Meehanite cast iron head casing
Description:

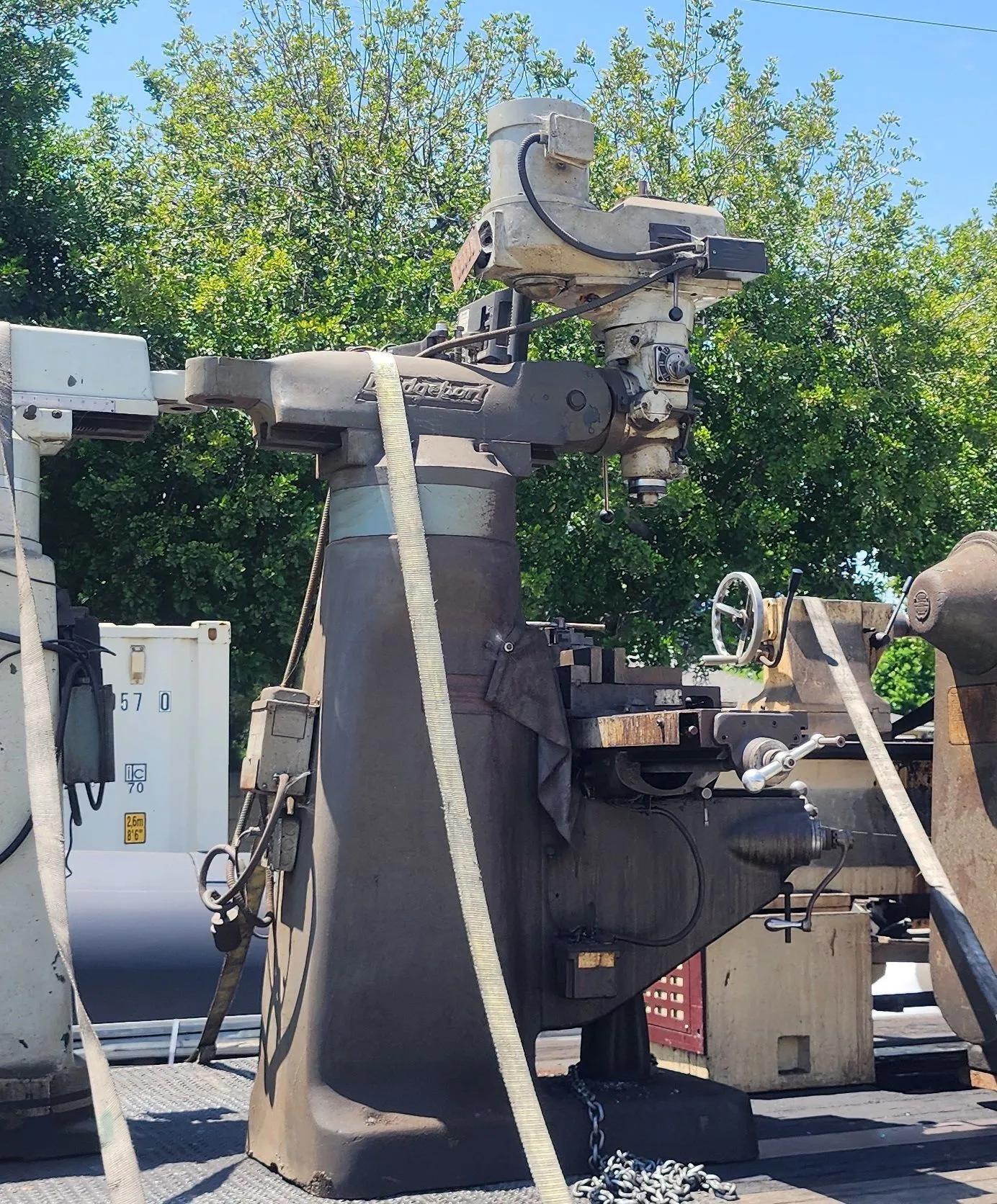

Bridgeport-style vertical knee mill base that has been retrofitted with an Acra head—a fairly common and practical combination in machine shops when upgrading or repairing old Bridgeport machines.
________________________________________
🔧Machine Overview
Base Machine: Bridgeport Vertical Knee Mill (Manual Mill Base)
Head: Acra Variable Speed Milling Head (Likely AM-2V or AM-2S)
________________________________________
✅ Description – What It Does
This machine is a manual vertical milling machine used to:
• Cut, shape, and drill metal or plastic parts
• Perform tasks like face milling, slotting, keyway cutting, hole drilling, and contouring
• Handle prototype work, maintenance jobs, and precision machining of small to medium-sized parts
The Bridgeport base provides stability and smooth table movement, while the Acra milling head brings modern, reliable power and speed control.
________________________________________
⚙️ Bridgeport Base Specifications (Typical)
Feature: Spec
Table Size: 9" x 42" or 9" x 49" (depends on model)
X-Axis Travel: ~30"
Y-Axis Travel: ~12"
Knee Travel (Z-axis): ~16"
Quill Travel :~5"
Spindle Taper: R8
Manual Feeds: X, Y, and Z via hand cranks
Power Feed (optional): May be installed on X-axis (varies by configuration)
Construction: Cast iron for vibration dampening and rigidity
________________________________________
🏭 Acra Milling Head Specifications (Assuming AM-2V or AM-2S)
Feature: Spec
Spindle Motor: 2 HP, 3-phase, 220/440V
Spindle Speed Range: 60–4,500 RPM (variable speed)
Spindle Taper: R8
Quill Feed: 3-speed power downfeed (0.0015, 0.003, 0.006 in/rev)
Head Tilt: ±90° left/right, ±45° front/back
Construction: Meehanite cast iron head casing
________________________________________
💡 Capabilities
• Precision manual milling for small to medium parts
• Versatile use in maintenance, R&D, toolrooms, and prototyping
• Cuts steel, aluminum, plastics, and more with correct tooling
• Customizable with power feeds, DROs, or coolant systems
________________________________________
📌 Listing Summary Description

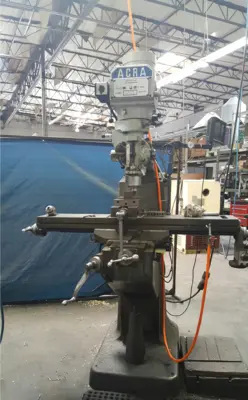

Bridgeport Vertical Milling Machine with Acra 2 HP Head — This machine features the classic, rigid Bridgeport knee mill base with a modern, variable-speed Acra head retrofit. Ideal for precision manual milling, drilling, and light-duty shaping in maintenance or job shop environments. 9" x 42" table, R8 spindle taper, and 2 HP head with 60–4,500 RPM speed range.
| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 36" | 914.4 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R8 | R8 |
