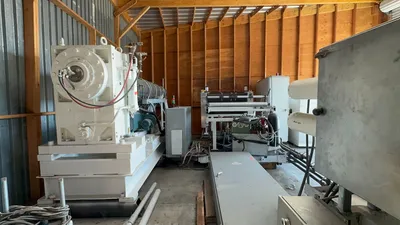

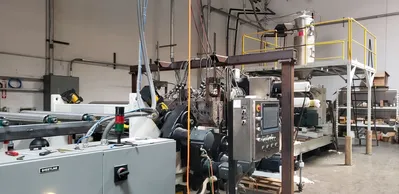

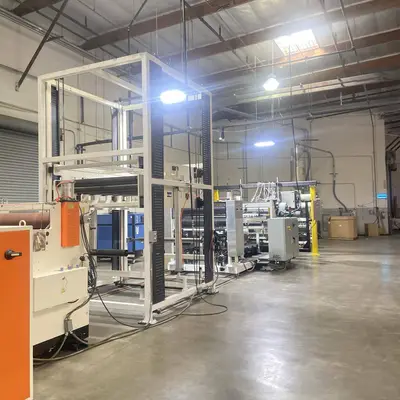

USED 2001 OMV MACHINERY TFT-IMC 740 B

Description

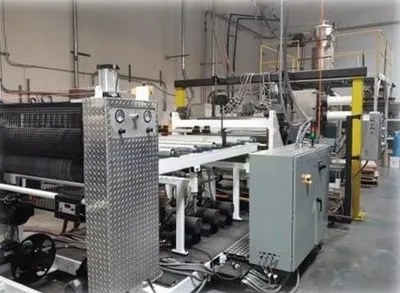

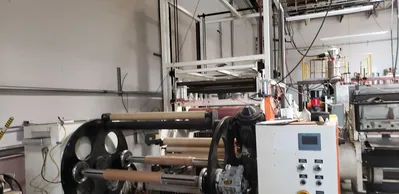

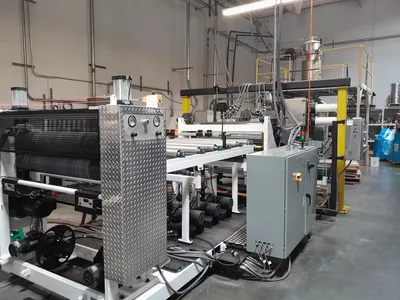

48”Standard 6” 350 HP PET Sheet Extrusion Line

Motor : 350 HP
Drive: 30 HP Yaskawa GA800
Screen Changer: 8" Dual Roll
Gear Pump: 30 HP Motor MSDP-30
Die: Ultraflex 54"
Cooling Capacity: 16 HP
Voltage: 460
Rolls # of Rolls: 3
Roll Size: (2) 51" x 20" (1) 51" x 12"
Roll Motor: Individually driven rolls 5 HP Marathon motors
Controls: Digital Controllers
Conveyor Size: 16" with 4" diameter idlers
Draw Rolls Size: 8" x 74"
Draw Rolls Motor: 3 HP AC Motor
Water Pumps: (3) 5 HP

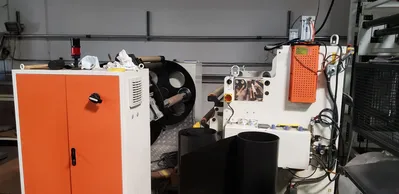

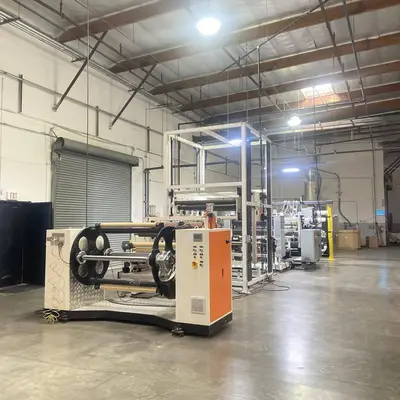

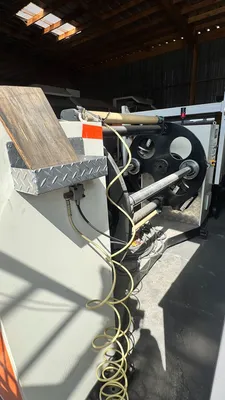

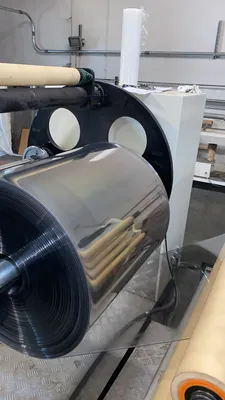

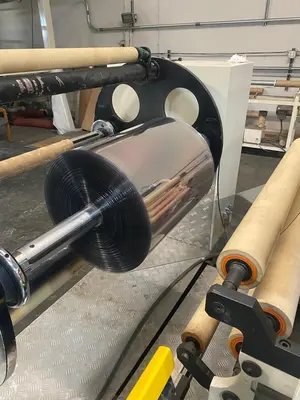

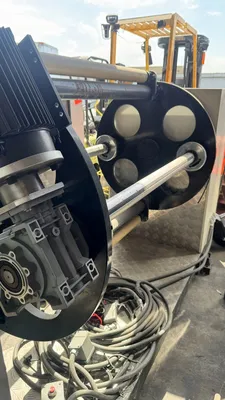

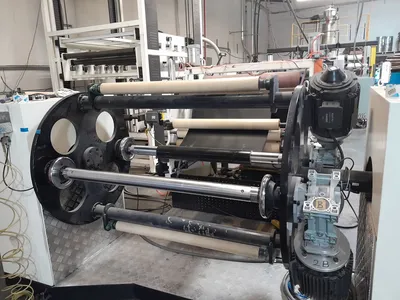

Winder: Included
Types of Material: PET, Polyethyleen, Polystyrol, HMWPE
Maximum Width: 48 inches - Minimum Thickness: .012” –
Maximum Thickness: .25”
Production level: Approximately 2,250lbs. per hour. Inch
23.9 ratio gearbox

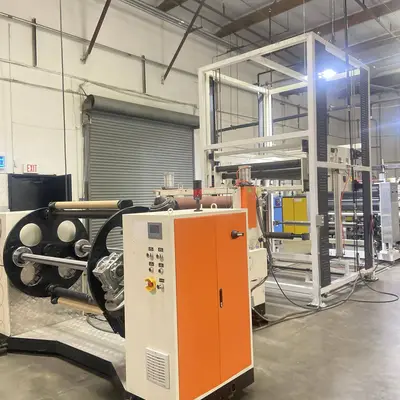

51”x12”Siemens Touch Screen Controls, Accumulator, Automatic Winder
54” Ultraflex Dye,Cooling System, Drive & Heat Control Panel

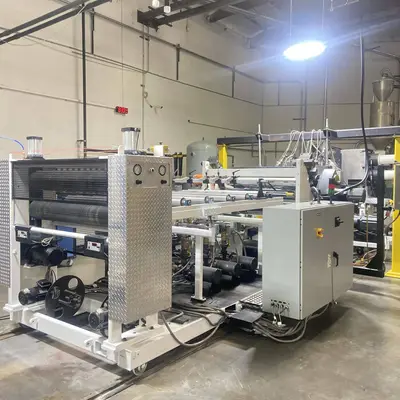

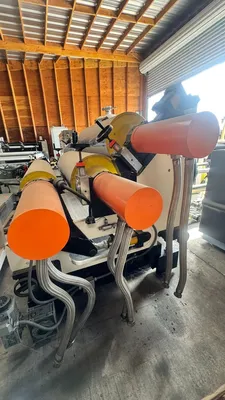

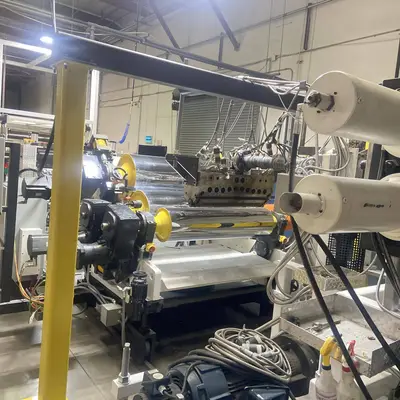

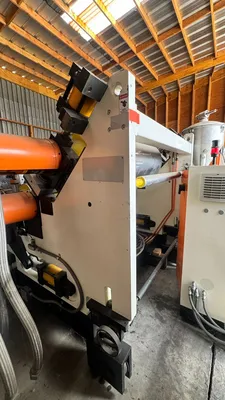

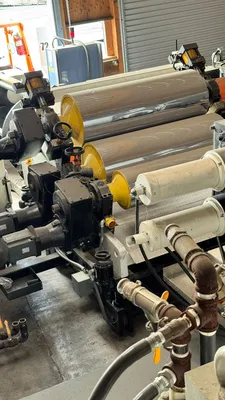

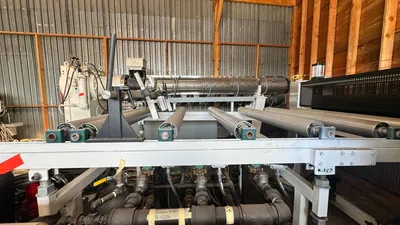

20” diameter x 52” face width rolls (2)

Horizontal arrangement

Three (3) individually driven rolls with 5 HP Marathon motors and Sumitomo reducers geared for a maximum FPM
Precision spherical roller bearings
12” diameter x 52” face roll (1)

Frame and Chassis

Precision frames constructed of heavy duty steel plate, blanchard ground, line bored and laser aligned
Chassis constructed of ½” wall tube steel with plate steel
Adjustable height "vee" casters and "vee" track
Roll articulation via cantilever pivot arms
Roll gap adjustment with screw jacks and dial indicators
Hydraulic actuation on top and bottom rolls

Operators Panel

Machine mounted close to chrome rolls
Digital speed controls for chrome rolls and draw rolls; slaved for synchronized operation

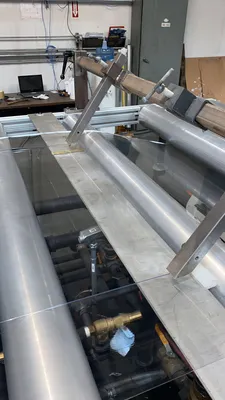

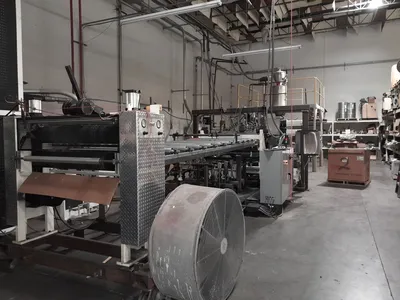

Conveyor

16’ conveyer with 4" diameter aluminum idlers

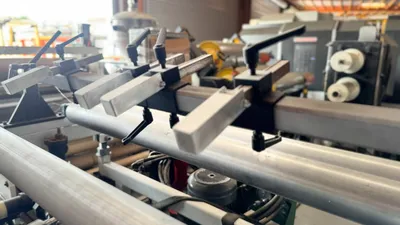

Adjustable height slitter knives, four (2) total

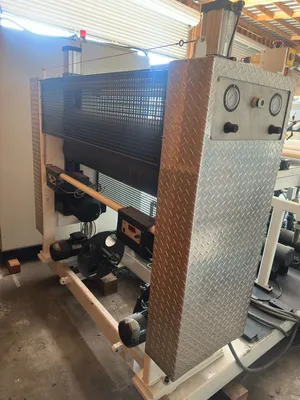

Draw Rolls

8" diameter x 74" face width 70 durometer Hypalon draw rolls
3 HP AC flux vector motor with helical gear box
Line mover built into frame

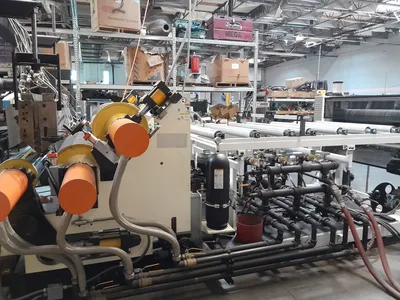

Temperature Control System

Closed loop heating and cooling system, one zone for each roll, with one stand-by unit, with common manifold to other units
Five (3) 5 HP Scot water pumps, with one stand-by circuit
kW heaters each roll
Cold water injection system with Italian brand solenoid valves.

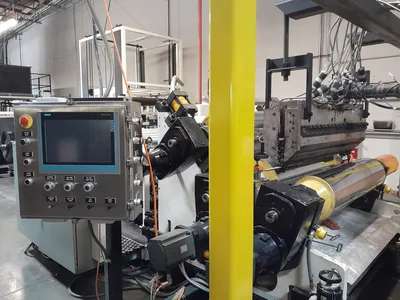

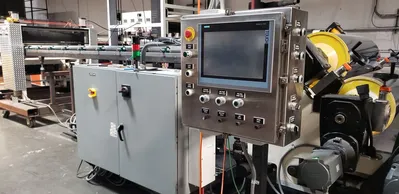

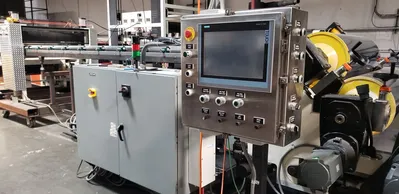

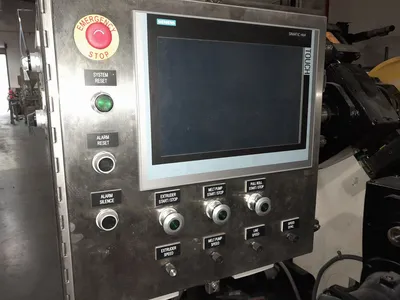

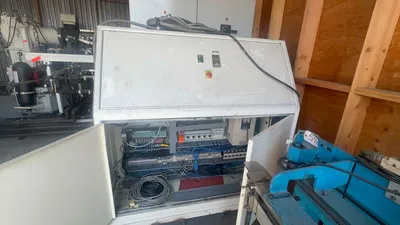

Control panel machine mounted – Touch screen Control

Safety System

Emergency safety cable near each incoming nip
Emergency stop palm button at operator’s and shear control stations
Any device actuation opens all rolls and stops drives

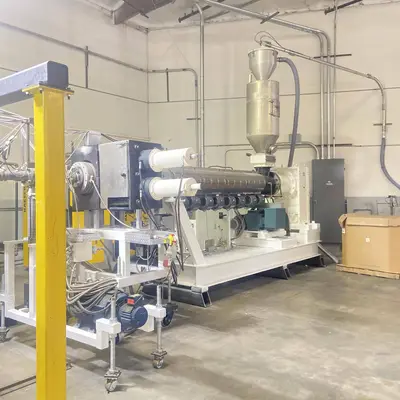

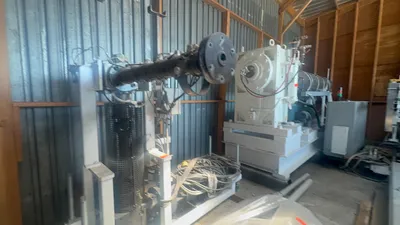

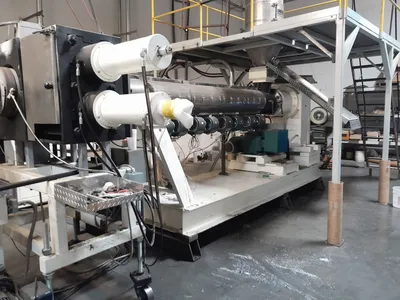

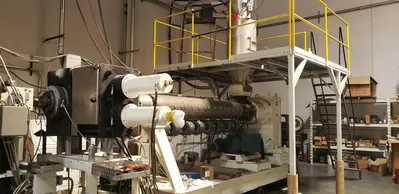

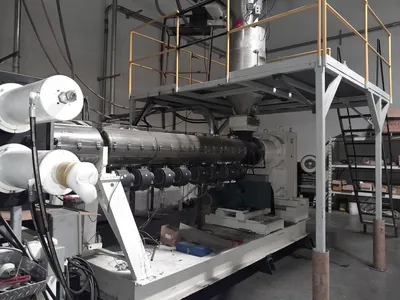

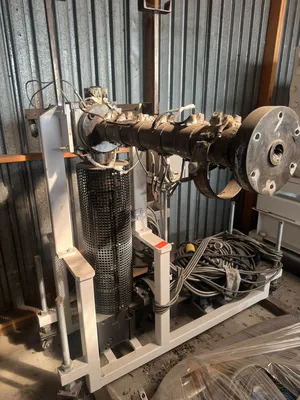

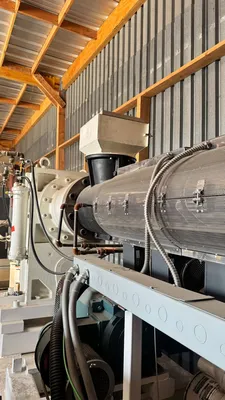

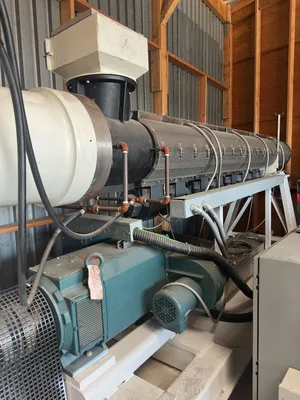

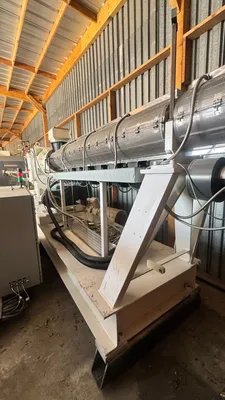

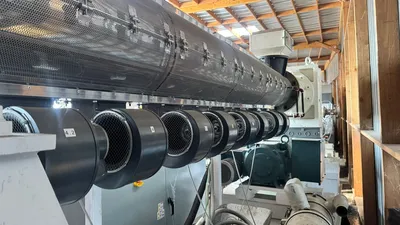

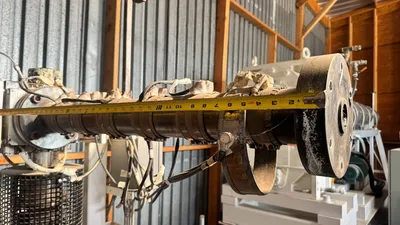

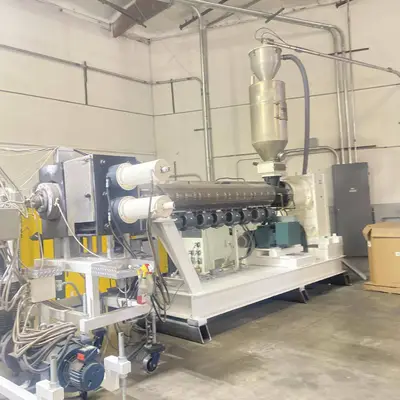

6” Extruder 140” long
300 HP Motor
Speed Control Drive Yaskawa 30 HP GA800

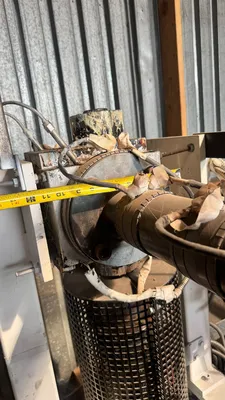

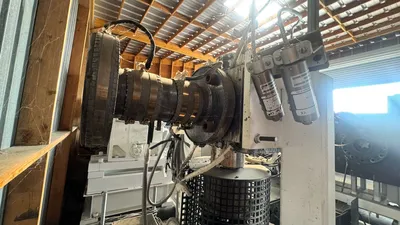

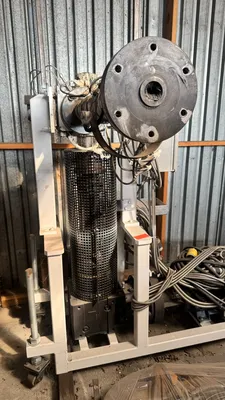

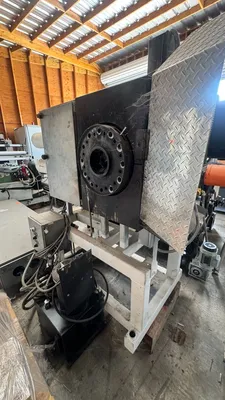

8” Screen Changer (Dual)
30 HP Motor Gear Pump MSDP-30
Die Ultraflex 54”

Chiller

Heat: 12KW Cooling cap. 460v, 60kw @135C (14+I2) Pump cap max. :100I/min 8Bars (TOE/CY 6091) Incl.profibus interface.

******* DOES NOT COME WITH THE DRYER *******

Description:
This is a high-output PET sheet extrusion line designed for producing plastic sheets up to 48 inches wide, commonly used in thermoforming, packaging, and industrial applications. It features a robust 6” single-screw extruder powered by a 350 HP main drive, allowing for high-throughput and consistent melt quality—ideal for demanding production environments.

The line includes a precision Yaskawa GA800 30 HP AC drive system, providing excellent motor control for the haul-off or auxiliary downstream equipment. The entire system is designed for efficiency, high output, and reliability in processing PET and potentially other polymers like RPET, PLA, or PP with proper screw design and configuration.

________________________________________

⚙️ Specifications:

Component Details

Extruder Diameter 6” (Single Screw)

Main Motor 350 HP (Heavy-Duty for High Output)

Drive System 30 HP Yaskawa GA800 (High-Efficiency Inverter)

Sheet Width Up to 48” (depending on die and downstream setup)

Material PET, RPET, PLA, others (with optional screw mods)

Typical Output 1,500 – 2,000+ lbs/hr (material & config dependent)

Cooling System Multi-zone cooling rolls with precision control

Roll Stack Chrome polished rolls, pneumatically loaded

Conveyor & Haul-Off Driven rollers with variable speed control

Electrical Cabinet Integrated control panel, emergency stops

________________________________________

💡 Capabilities:

• Produces high-clarity PET or RPET sheet for packaging, forming trays, clamshells, etc.

• Can run regrind and virgin PET with proper drying and feeding.

• Energy-efficient drive systems ensure stable operation and low maintenance.

• Adaptable to include gravimetric blenders, edge trimmers, sheet winders, and inline thermoforming.

________________________________________

📦 Ideal Applications:

• Food packaging (trays, containers)

• Industrial sheets and blister packs

• Thermoforming base material

• Recycled PET sheet production (RPET)

________________________________________

📝 Listing Description:

48” Standard Plastic Sheet Extrusion Line – 6” 350 HP PET System

High-performance plastic sheet extrusion line featuring a 6” single-screw extruder powered by a 350 HP motor. Includes Yaskawa GA800 30 HP drive for smooth downstream control. Capable of producing up to 48” wide PET or RPET sheet. Perfect for packaging, thermoforming, and industrial sheet production. Heavy-duty, well-maintained, and ready for production.
