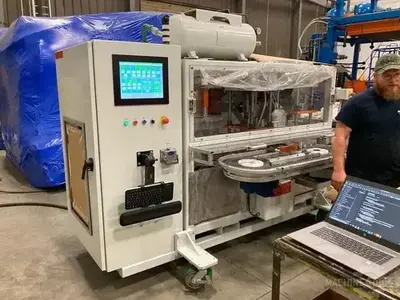

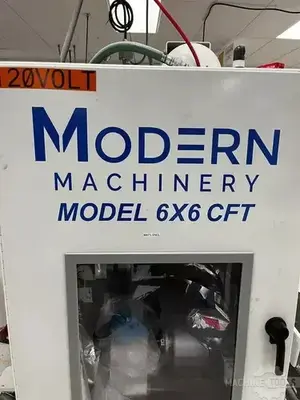

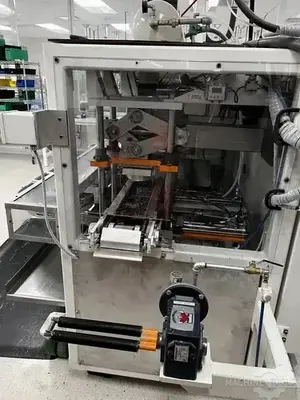

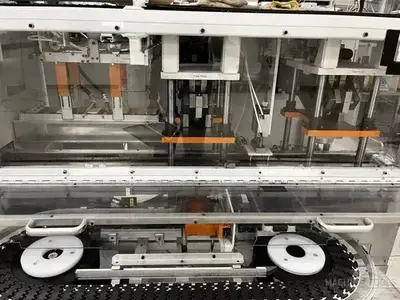

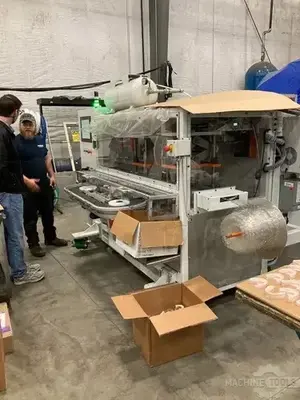

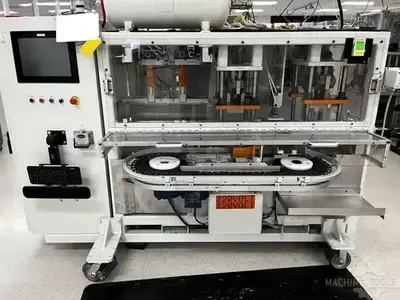

USED 2021 MODERN MACHINERY 0606CFT

Lab Size Inline Style Thermoformer

Request a Quote
Add to Cart
Max Tool Size: 6" x 6"
Max Draw Depth: 4" (Above & Below Sheeline)
Sheet Width (Max & Min): 8" & 4"
Unwind Stand: Free Standing (18" Dia Roll x 3" Cores)
Indexing: Servo Indexing (Digitally Controlled)
Sheet Conveying: #40 Pin Chain - 1" Centers on Points (Sprocketless Design)
Oven (Panel IR Heaters - Top Only): 30" Long / 5-Stop
Oven Elements: Solar "F" Series Panel
Number of Zones: (5) Zone
Oven Contol System: Hetronik PID Oven Control System (Elec. Photo Sag Eye)
Bottom Mounted IR Sensor: Monitors Sheet Temperature
Platens: (4) Post Guiding
Platen Drives: Servo Toggle Design (80 PSI) w/ Digital Encoder (For Positioning)
Top - Open/Closed (Daylight)/Stroke: 7" / 3" / 4"
Bottom - Open/Closed (Daylight)/Stroke: 7" / 3" / 4"
Trim Station: (4) Post Trim Station (Servo w/ Encoders)
Trim Station Tonnage: 10 Ton
Max Tool Weight: 100 Lbs (Top & Bottom)
Index Length: 6"
Trim Tool Stroke Dimensions: Refer to Platen Top & Bottom Daylights Details
Control: Allen Bradley Controller
A Motorized Scrap Winder: Semi-Auto Tool Loading Mechanism
Vacuum Pump & Tank Reservoir
