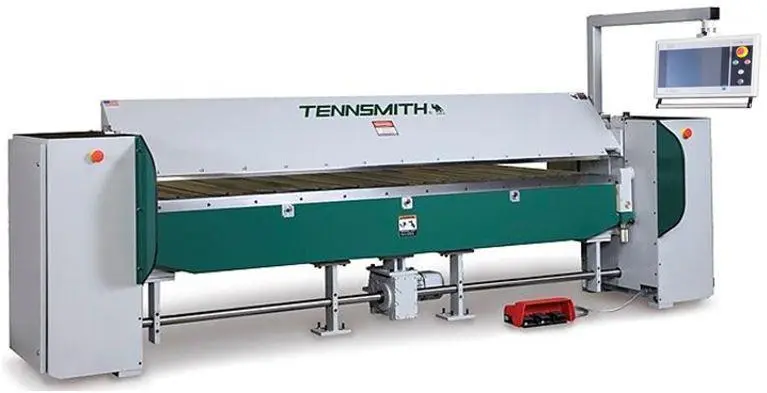

New Tennsmith CNC Folder, Model# SBS159-16-60

New Tennsmith CNC Folder Model SBS 159-16 with SYNERGY Control and 61" Back Gauge
Specifications:
Bending Capacity (Mild Steel)     16ga / 1,6mm
Bending Capacity (Stainless)        20ga / 1,0mm
Bending Length 159 in / 4040mm
Bending Bars      1 " (25mm) bending bar x 159" (4040mm)
                         7/16" (11mm) bending bar x 159" (4040mm)
Crowning of the Folding Beam    7-Point 0”- 0.030” Adjustment
Folding Beam Adjustment            1 in / 25mm
Clamping Beam Opening Height 7 in / 178mm
Clamping Beam Tooling 30 Degrees
Back gauge Depth (SBS159-60)   61 in / 1550mm
Working Height 34 in / 864mm
Back Gauge Motor           3/4 hp
Clamping Beam Motor   2 hp / 1.5 kw
Bending Beam Motor     2 + 2hp / 3 kw
Machine Dimensions      210 x 96 x 72 in / 5334 x 2438 x 1829 mm
Shipping Weight               9,985 lbs.
Speeds:
Clamping Beam Speed   2.5” per second
Folding Beam Speed       80 degrees per second
Back gauge Speed (0.375” to 41”)              5 seconds
Electrics:
Machines are standard with 220 Volt or 440 Volt 3 Phase 60 Hz electrics
FOB: Tennessee
Note: Above is quotes with 61" back gauge travel -
Machine is offered with 41" back gauge travel as well - P.O.R.
Additional options are available - depends on requirements
Let us know how we can assist.
