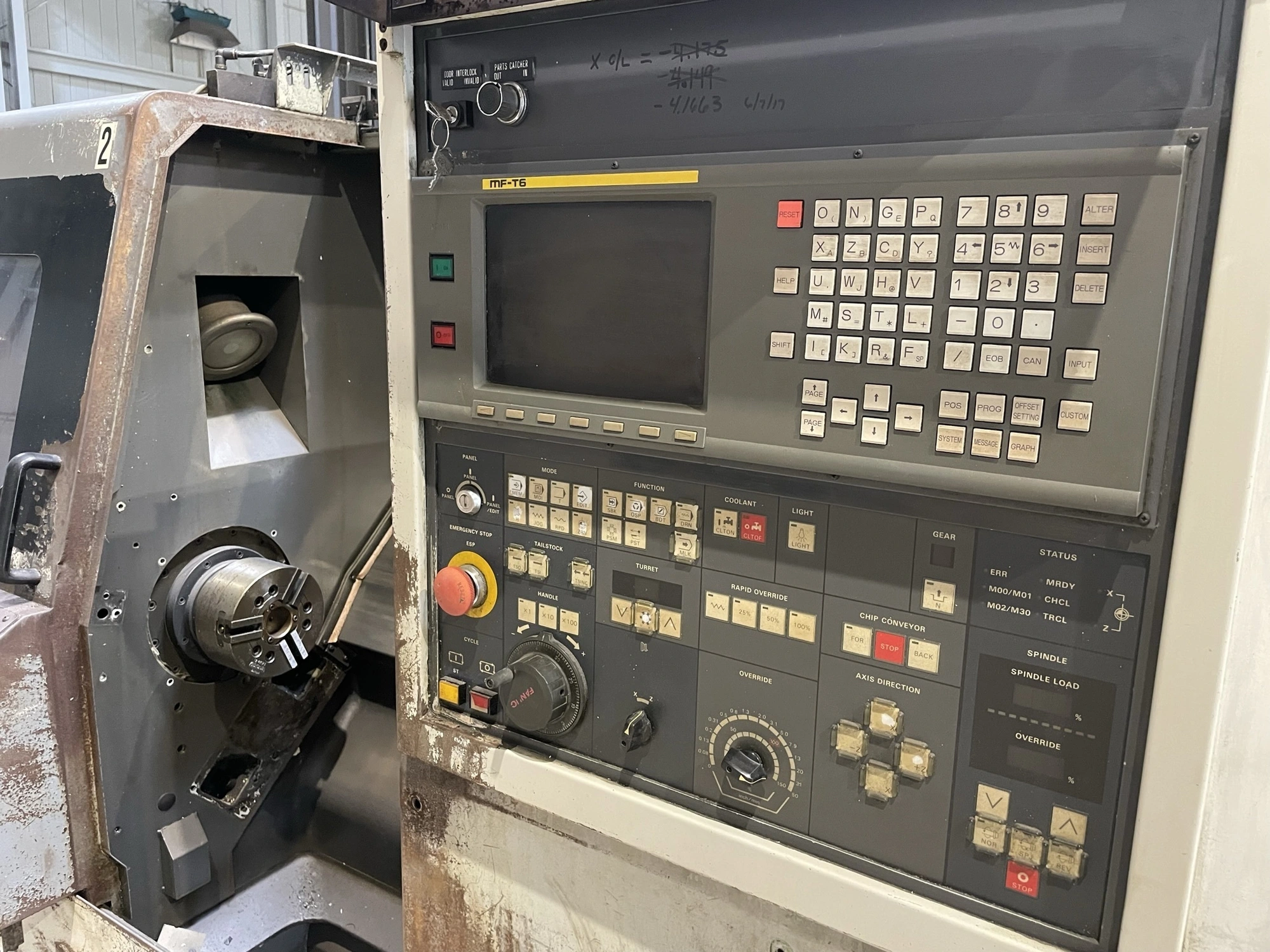

USED MORI SEIKI SL-15 CNC LATHE
Overview
Description
...
Specifications
| size | 8" Chuck | 8" Chuck |
|---|---|---|
| Swing | 17" | 431.8 mm |
| Machining Length | 22" | 558.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 1.77" | 44.958 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Dimensions | 92" x 60" x 70" | 92" x 60" x 70" |
| Weight | 9500 | 9500 |
Mori Seiki Model SL-15 2-Axis Slant Bed CNC Lathe
Swing Over Bed: 17.7"
Distance Between Centers: 23.4"
X-Axis Travel: 5.3"
Z-Axis Travel: 22"
Spindle Nose: A2-5"
Spindle Bore: 2.0"
Spindle Speed: 60 - 6,000 RPM
Spindle Motor: 10 HP
Turret Type: 12 Position Turret
Tailstock Quill Dia./Type: 3" / #4 MT
Machine Dimensions LxWxH: 92" x 60" x 70"
Machine Weight: 9,300 lbs.
Equipped With
Mori Fanuc MFT6 CNC Control
3-Jaw 6" Chuck
Tailstock
