2 Axis Slant Bed, 6" Chick, Fanuc 21T CNC
| size | 6" | 6" |
| Swing | 16" | 406.4 mm |
| Machining Length | 13" | 330.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.65" | 41.91 mm |
| Turning Dia | 6" | 152.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

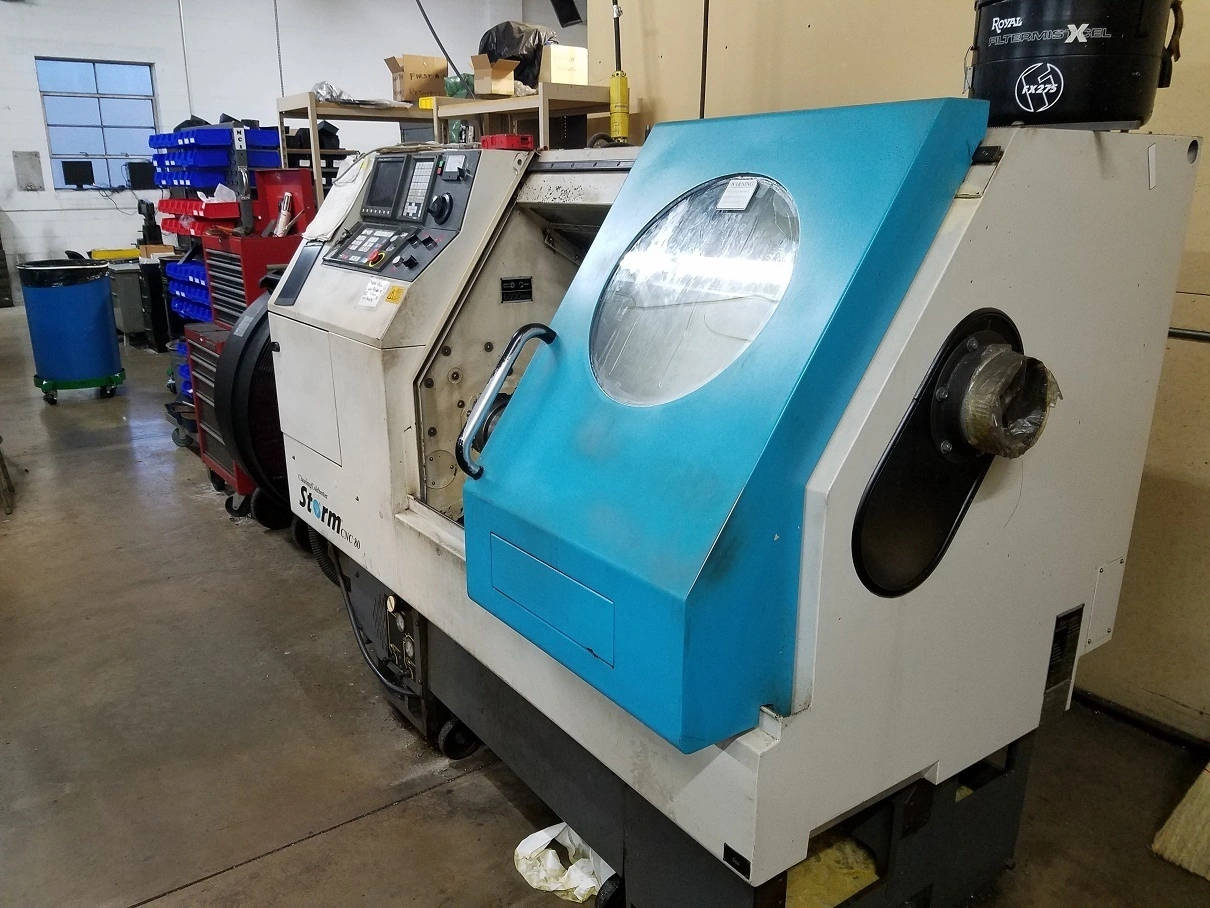

Clausing Colchester Model Storm 80 2-Axis CNC Lathe
Max Swing Over Bed: 16.54"
Max Turning Diameter: 6.69"
Cross Travel (X-Axis): 6.5"
Longitudinal Travel (Z-Axis): 13.78"
Rapid Traverse Rate (X-Axis): 591 IPM
Rapid Traverse Rate (Y-Axis): 591 IPM
Tool Capacity:12 TRT
Bar Capacity: 1.65"
Spindle Nose: A2-5
Spindle Speed: 45-4000 RPM
Spindle Horsepower: 15 HP
Approximate Machine Dimensions: 117" x 74" X 73"
Approximate Machine Weight: 5,560 LBS
Equipped with:
GE Fanuc 21T CNC Control
6" 3-Jaw Hydraulic Chuck
