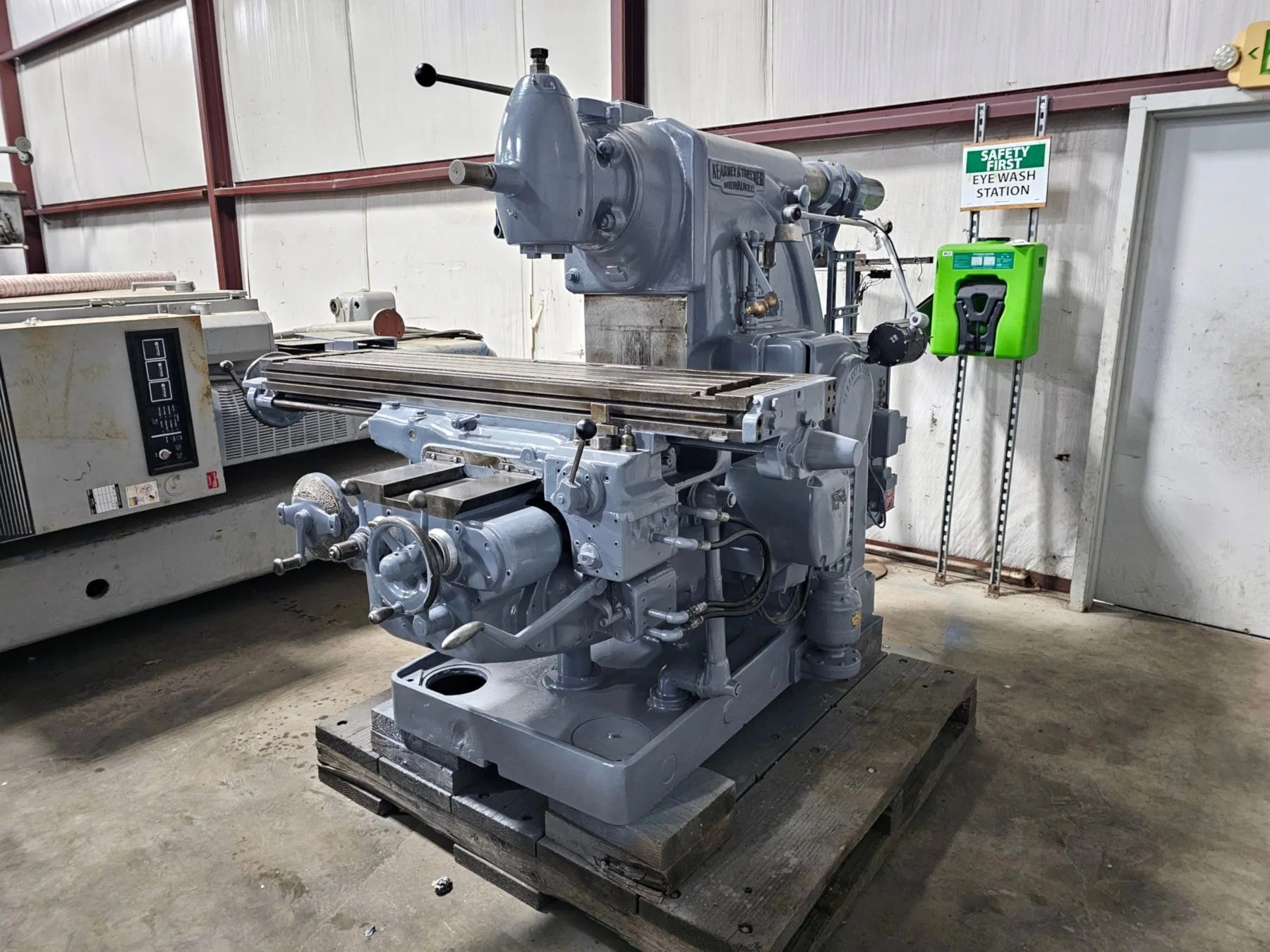

15" X 64" Used K & T Horizontal Milling Machine Model 3 CK With Double Swivel Vertical Head
| Table Size-W | 15" | 381 mm |
| Table Size-L | 64" | 1,625.6 mm |
| Travel-Long | 34" | 863.6 mm |
| Travel-Cross | 16" | 406.4 mm |
| Travel-Vert | 16" | 406.4 mm |
| Taper | 50 | 50 |
| RPM | 1,500 RPM | 1,500 RPM |
| Power | 20 hp | 14.9 kW |
| Dimensions | R-L 78" X F-B 80" X Height 72" | R-L 78" X F-B 80" X Height 72" |
| Weight | 9,500 Lbs | 9,500 Lbs |
Table Size.........................................15" X 64"
Table Travel.......................................34"
Table Cross Travel.................................16"
Spindle Taper......................................50"
Knee Travel Up & Down..............................16"
Spindle Speeds.....................................15 To 1,500 Rpm's
Spindle To Table Min / Max.........................6-3/4" / 16-1/2'
Saddle And Table Feeds.............................3/8 To 90 I.P.M.
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................37-1/2 I.P.M.
Main Motor.........................................20 Hp. 220 / 400 / 3
Floor Space........................................R-L 84" X F-B 84"
Height.............................................72"
Weight.............................................10,500 Lbs.
Arbor Support (2)..................................Yes
Double Swivel Vertical Head........................Yes
Coolant............................................Yes
Note:
Machine came of the US Navy.
Machine has been cleaned, painted and cycled.
New oil and belts.
