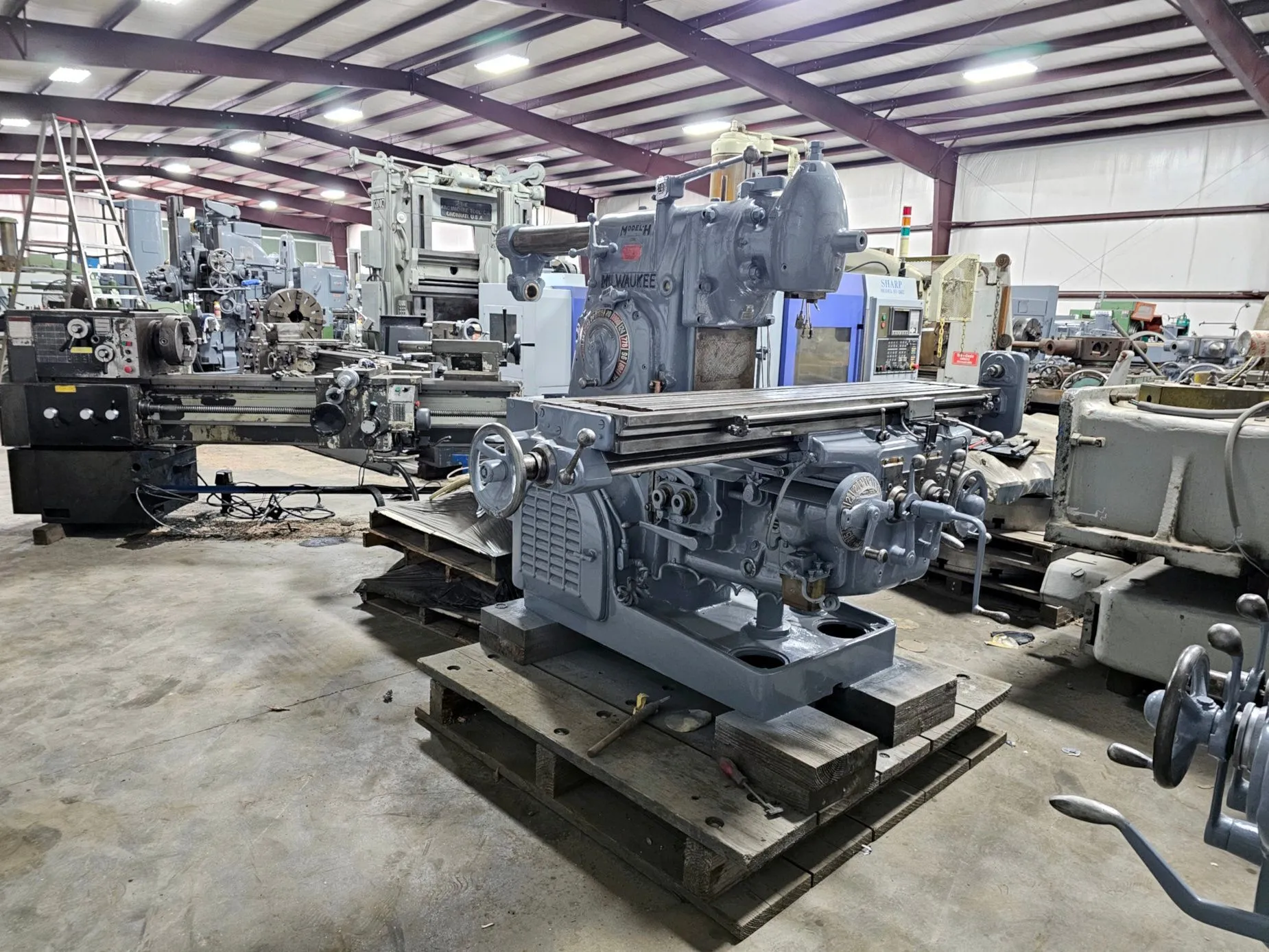

13.5" X 64" Used K & T Horizontal Milling Machine Model 3 H Plain With Vertical Head Rebuilt 1983
| Table Size-W | 13.5" | 342.9 mm |
| Table Size-L | 64" | 1,625.6 mm |
| Travel-Long | 34" | 863.6 mm |
| Travel-Cross | 16" | 406.4 mm |
| Travel-Vert | 16" | 406.4 mm |
| Taper | 50 | 50 |
| RPM | 1,000 RPM | 1,000 RPM |
| Power | 15 hp | 11.2 kW |
| Dimensions | R-L 84"X F-B 84" X Height 72" | R-L 84"X F-B 84" X Height 72" |
| Weight | 9,500 Lbs. | 9,500 Lbs. |
Table Size...................................13.5" X 64"
Table Travel.................................34"
Table Cross Travel...........................16"
Spindle Taper................................50"
Knee Travel Up & Down........................16"
Spindle Speeds...............................20 To 1,000 Rpm
Spindle To Table Min / Max...................6-3/4" / 16-1/2'
Saddle And Table Feeds.......................3/8 To 90 I.P.M.
Rapids Long. & Cross.........................150 I.P.M.
Rapids Knee..................................37-1/2 I.P.M.
Main Motor...................................15 Hp. 220 / 400 / 3
Currently Wired For..........................230 Volts
Floor Space..................................R-L 84"X F-B 84"
Machine Height...............................72"
Weight.......................................9,500 Lbs.
Vertical Head Double Swivel..................Yes
Arbor Support (1)............................Yes
Coolant......................................Yes
Note:
Machine came of the US Navy.
Machine will be cleaned, painted and cycled.
New oil and belts
