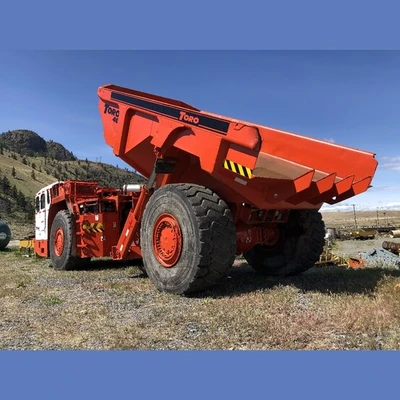

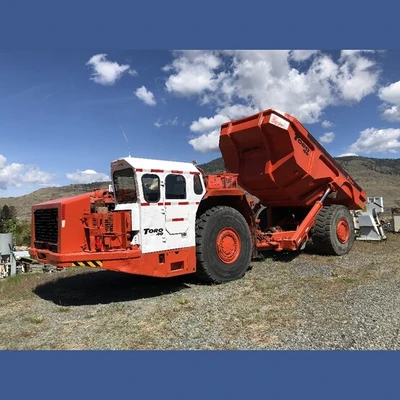

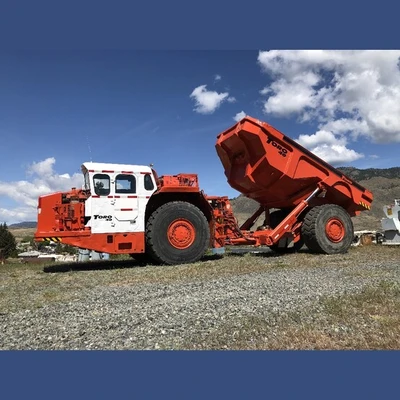

2008 SANDVIK TORO 40 UNDERGROUND HAUL TRUCK

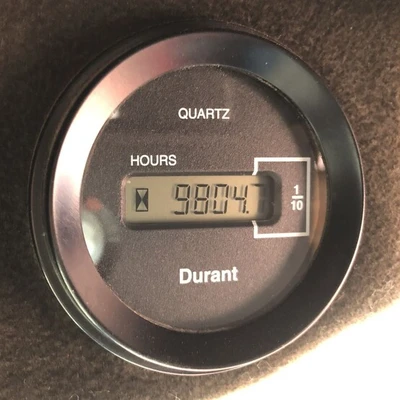

Truck Hours: 9,800
Year: 2008
Dimensions:
Total Length: 10,217 mm (402 in.).
Total Width: 2,990 mm (118 in.).
Height: 2,670 mm (105 in.).
Max. Height of the box: 2760 mm (109 in.).
Weights:
Operating Weight: 30,700 kg (67,700 lb).
Total loaded weight 70,700 kg (155,900 lb).
Axle weights without load:
front axle 22,200 kg (49,000 lb).
rear axle 8,500 kg (18,700 lb).
Axle weights with load:
front axle 33,400 kg (73,600 lb).
rear axle 37,300 kg (82,200 lb).
Capacities:
Payload capacity: 40,000 kg (88,125 lb).
Box std.: 18.0 m³ (24yd³).
Dump box movements:
Discharging time: 13 sec.
Dumping angle: 62°.
Frame:
Rear and front frame: Welded steel construction.
Material: Raex 384 (St 52-3).
Central hinge: Box constructed, adjustable lower bearing.
Firewall.
Engine: Detroit S-60 DDEC IV:
Diesel Engine.
Output: 354 kW / 2100 r/min (475 HP).
Torque: 2102 Nm / 1350 rpm.
Number of cylinders: in line 6.
Cooling system: water cooled.
Combustion principle:
Direct injected.
Turbo + inter cooler.
4 stroke.
Air Filtering: Donaldson.
Exhaust System:
HTI covered exhaust manifold & Turbo
Double wall exhaust pipe
Catalytic purifier & muffle
Fuel Tank Capacity: 550 l (145 gal.)
Dana SOH 8821 Gearbox:
Power shift transmission with electric remote shifting.
8 forward gears.
2 reverse gears.
Dana axles.
Brakes: Service and emergency brake are fully hydraulic.
Dana liquid cooled LCB.
Ansul fire suppression system.
Rear Backup Camera.
Automatic Hydraulic Lubrication System.
Box: conventional.
ROPS/FOPS canopy meets CSA B352 standards.
Overall Condition: Good, used.
Location: Savona British Columbia
Type: Selling
ETI: 78.000
Status: In warehouse
Delivery time: 2-3 weeks
