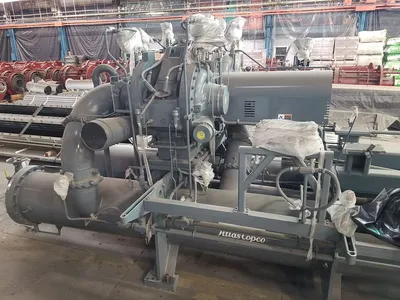

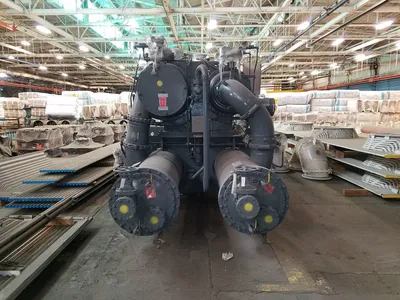

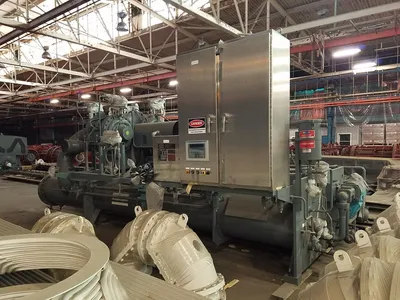

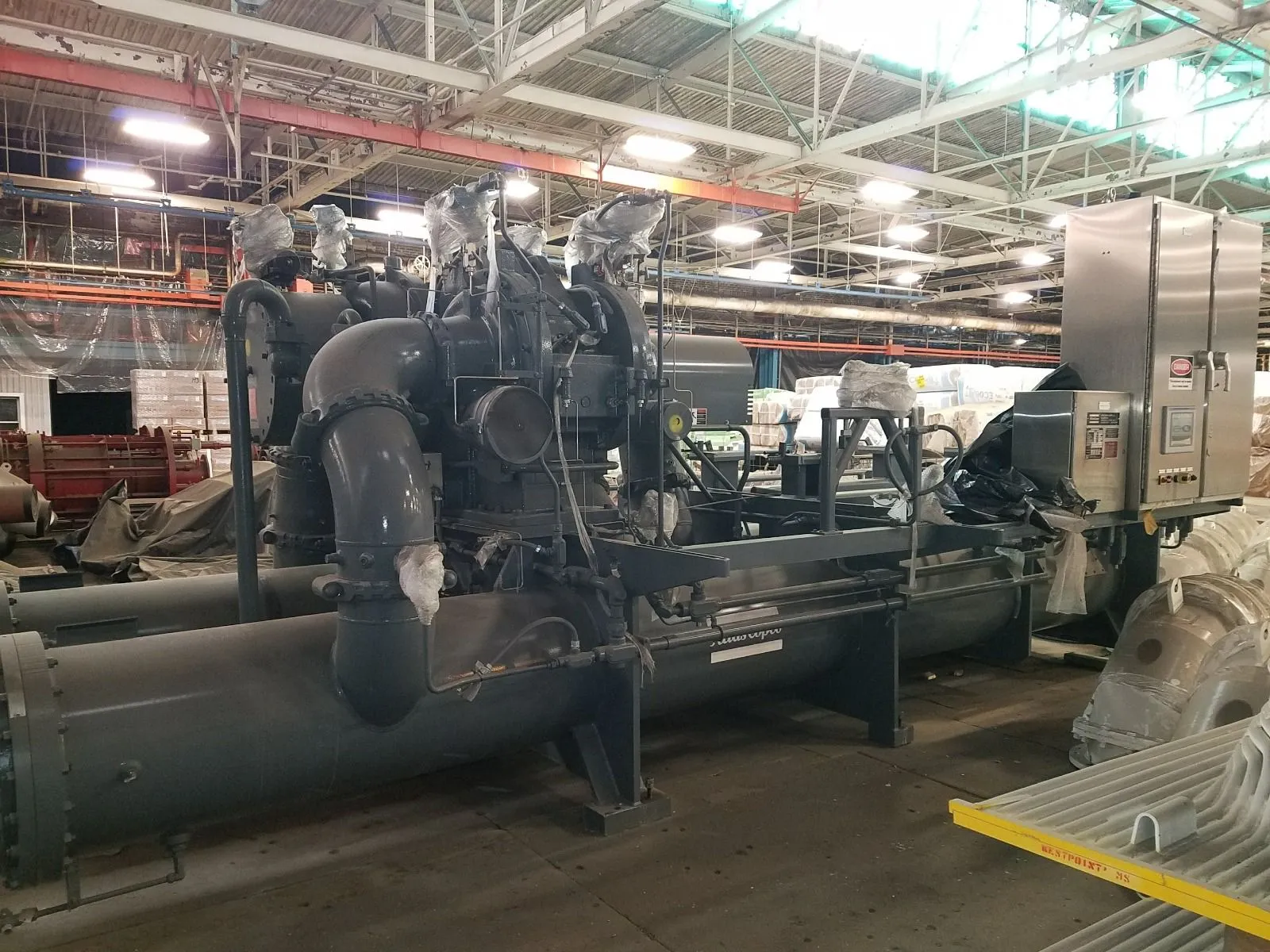

USED 2011 ATLAS COPCO, COMPTEC, HM5 6000 CFM, GEAR BOX HM1500

This is a NEW surplus, never energized

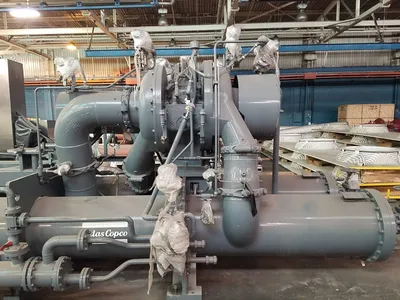

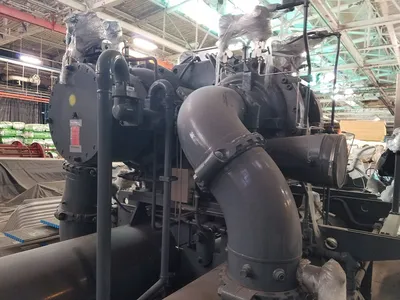

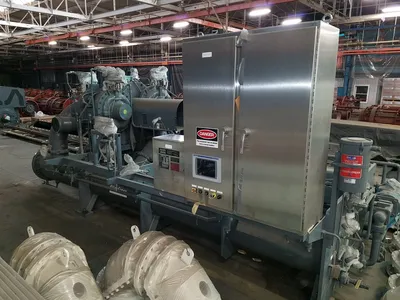

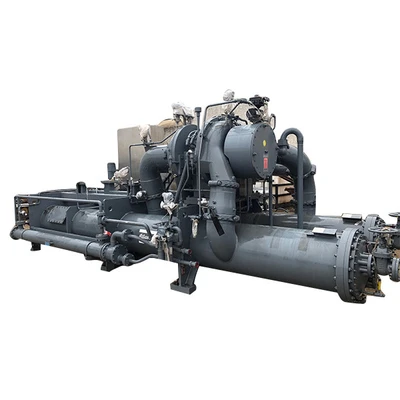

6000 SCFM Atlas Copco Centrifugal Soot Blower Air Compressor

For Sale. It is being stored in climate controlled storage,

with regular shaft rotation on the motor.
We purchased this new from a power-plant that never was built.

It has been stored in a climate controlled warehouse since then.

This compressor was designed to operate the soot blowing operation

for a large coal fired power plant.  It can be repurposed for other operations.
FOB: Milwaukee,  Ready to ship.
Main Package Information

Atlas Copco

Turbo Compressor

Model HM5

Serial Number : TBI104

Inlet Pressure : 14.0 PSI

Inlet Temp : 100 Deg F

SCFM: 6000

Discharge Pressure : 314.3 PSI

Cooling Water Flow : 1086 Gallons Per Minute

Inlet Water Temp : 100 Deg F

Max Inlet Water Pressure : 150 PSIG

Weight Total : 49,057

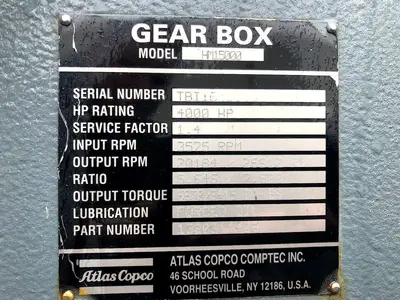

Gearbox Information

Manufacture : Atlas Copco Comptec Inc.

Model : HM15000

Serial Number : TBI10415

HP Rating : 4000

Service Factor : 1.4

Input RPM : 3575 RPM

Output RPM : 20184/26912 RPM

Ratio : 5.646/7.528

Output Torque : 6678/3415 Inch Pounds

Lubrication : Forced Oil

Part Number : 1320311406

Cooling Water Supply:

Consumption, Complete : 1086 GPM

Inlet Pressure : min 70 psig

Inlet Pressure : max 150 psig

Inlet Temperature : min 45 deg f

Inlet Temperature : max 105 deg f

Oil Filling:

Quality : ISO VG 32

Quantity : 282 gallons

Date of Manufacture : 9/2011
Shipping Information : Freight Only, FOB, Milwaukee, WI
SELLING:  Escobar Trading, Inc.

                   Enrique Escobar

Type: Selling
ETI: #88.000
Status: In warehouse
Capacity: 6000
Kg/Hr
Delivery time: 2 weeks
