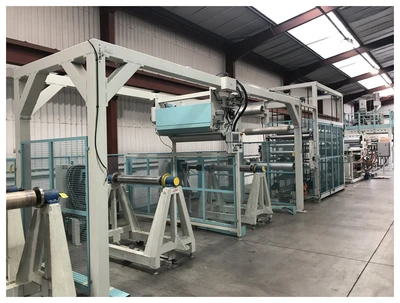

1000mm Amut PET,PP & PS sheet extrusion line. 75mm extruder, gear pump. 1000mm die. 1000mm 3 roll stack, haul off Accumulator and winder. 2016
* 3 component gravimetric dosing unit.

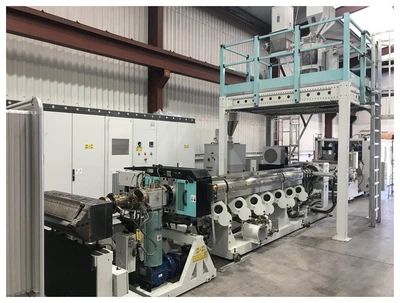

* 75mm extruder Model EA75. vented. 196kw Dc motor. 7 zone barrel with air cooling. Side feeder
* 60mm screen changer with hydraulic power pack.
* Maag 70/70 gear pump with 14.3 kw dc motor
* Static Mixer model X/70-75
* 950mm wide die for 850mm max width net product.

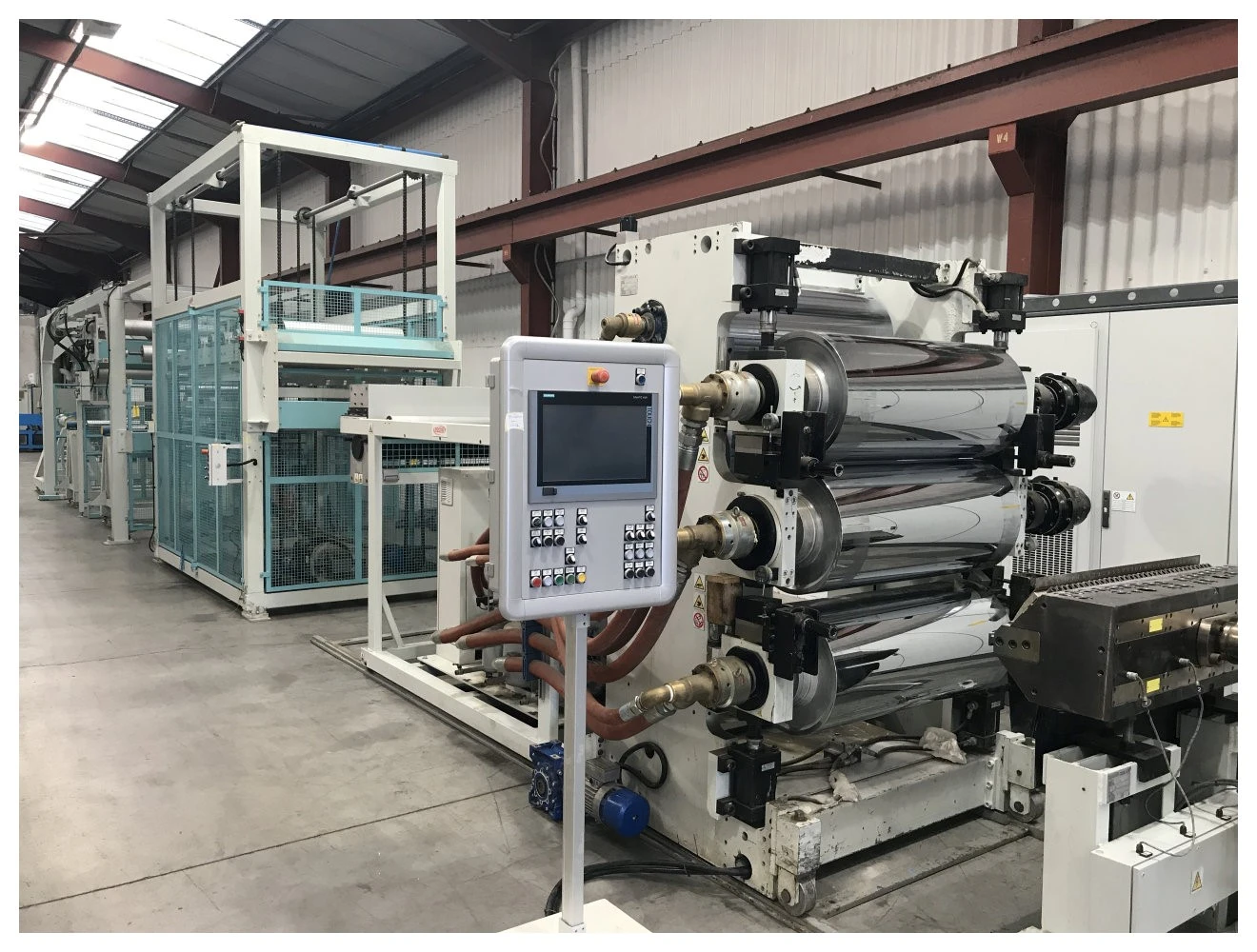

* 1000mm wide 3 roll stack model AKV1000 +3 CIL/100/45. 450mm dia rolls independently driven by 3.5kw ac motors. Hydraulic nip.
* AKR1000 additional cooling roll unit. Comprising of 2 x 200mm diameter rolls.
* 3 zone pump group model OCENT/V
* Edge trim with rotating blades.
* Edge trim winder
* Cooling roller unit
* 2 roll Haul off model TRK1000 160mm dia 1000mm wide
* 1000mm wide accumulating station Model ACDP/1000/30
* Nip haul off with automatic cutting model TAF/1000
* 2 station winder station model AVJ-1000+b2-1000 with 2 independent winders for jumbo rolls max reel dia 2000mm
Output approx 600kgs per hour (+ or - 10% for P.P).
The line is also suitable for the production of PET and or PLA sheet by adding the proper dehumidification system and related extrusion accessories.
CALL US FOR RPICING$
Type: Selling
ETI: 33.000
Status: In warehouse
Delivery time: 2-3 weeks
