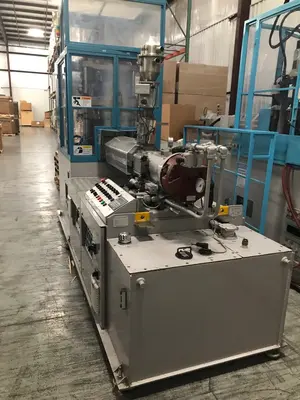

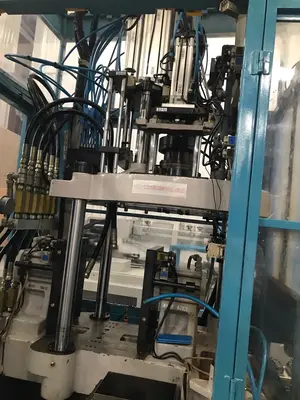

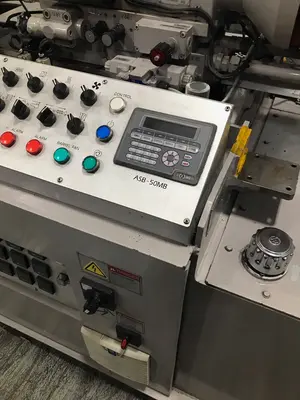

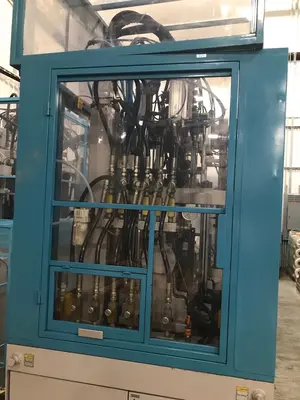

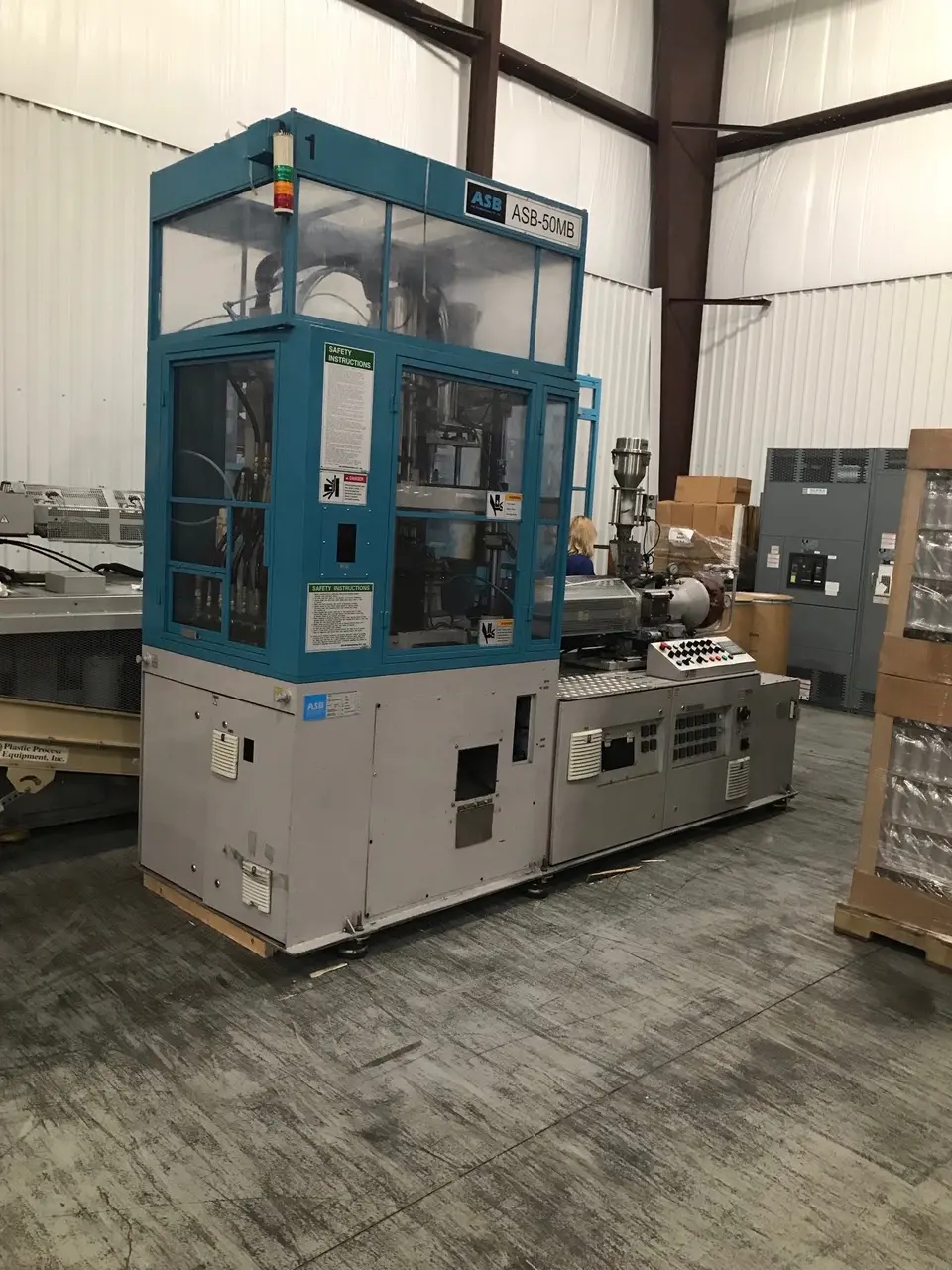

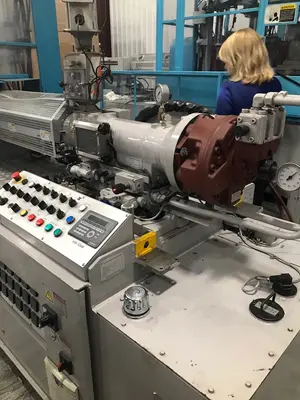

Nissei Model ASB-50MB One Step Stretch Blow Molding Machine
Overview
Description
Nissei Model ASB-50MB One Step Stretch Blow Molding Machine
– Year of manufacture- 2013
– Machine is a Version 3
– Injection clamping force- 60 kN
– Blow clamping force- 78 kN
– Heater capacity- 14 kW
– Pump motor- 19.3 kW
– Number of cavities 1 2 3 4 5 6
Max. bottle capacity (liters) 2.5 1.5 .6 .25 .1 .03
Max. neck diameter (m.m.) 63 42 32 27 25 17
Max. body diameter (m.m.) 115 100 74 56 45 35
Max. height (m.m.) 300 300 300 300 300 300
Max. weight- (grams) 129 65 43 32 26 22
– Machine dimensions- length x width x height- (meters)- 3.8 x 1.2 x 2.9
– Machine weight (kilograms)- 3 metric tons
– Offer includes the following:

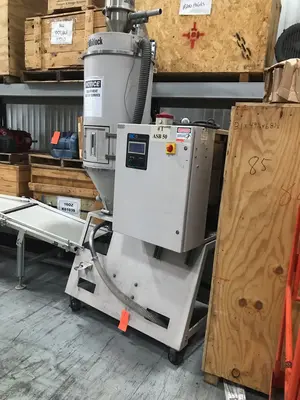

– AEC Whitlock Material Dryer and Hopper
– Condition- Very good- can be inspected in storage
?Price Ex-Works USA…..…… $74,900.00
Specifications
Type: Selling
ETI: 0729Oz
Status: In warehouse
